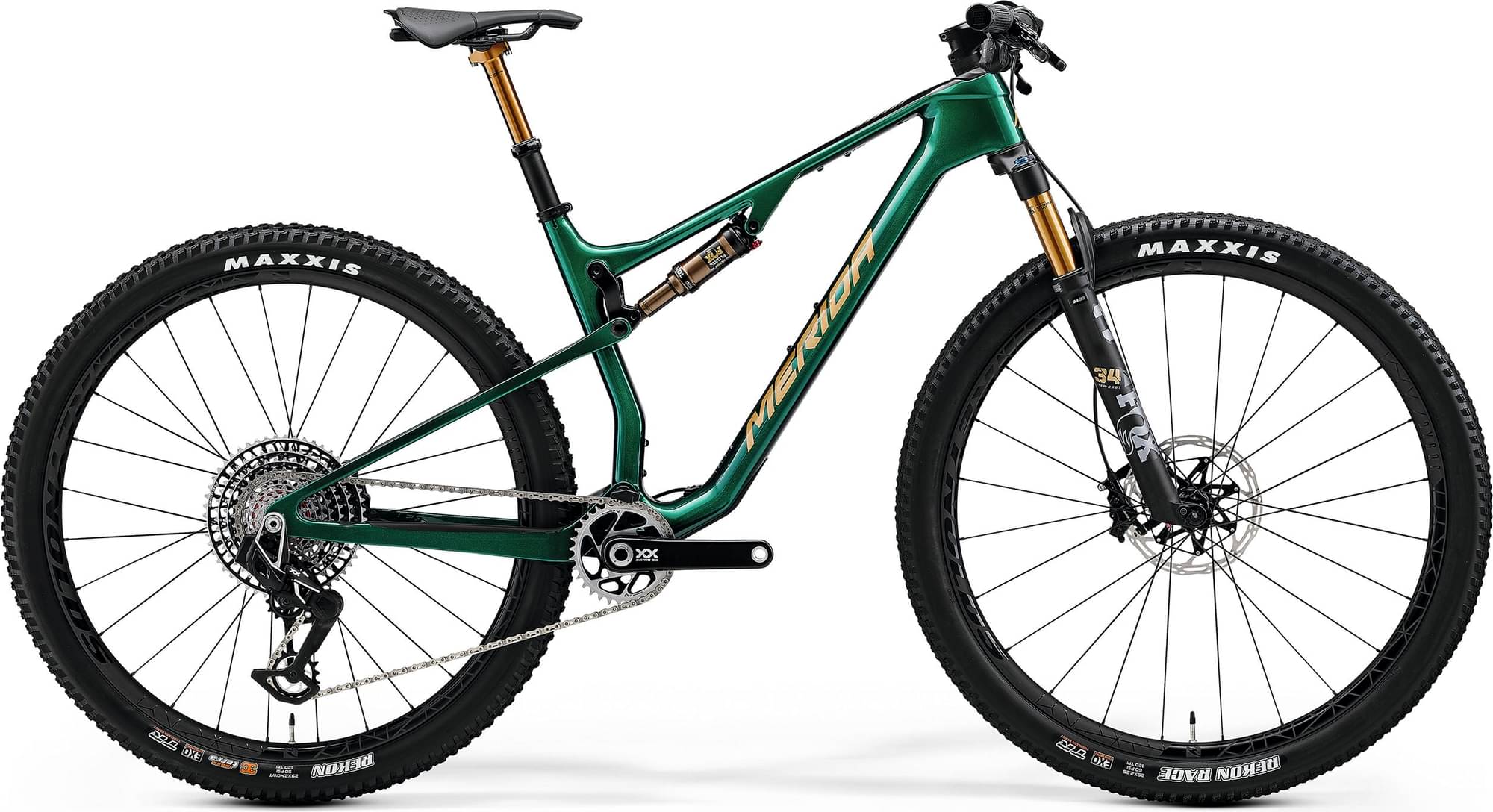

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork Fox Factory Float 34
-
Groupset XX1 Eagle AXS, SRAM -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NINETY-SIX RC CF5 III, 100 mm suspension travel, material: carbon, 29x2.35" max. wheelsize, 148x12 mm axle standard, BSA bottom bracket standard
Suspension Fork
Fox 34 Float SC Factory, Air, 100 mm suspension travel, Tapered, Remote lockout, 44 mm fork offset, 29x2.4" max. wheelsize
Rear Shock
Fox Float SL Factory, remote lockout
Drivetrain
Rear Derailleur
SRAM XX Eagle SL Transmission AXS, wireless, T-Type
Shift Levers
SRAM AXS POD Ultimate Controller
Cassette
SRAM XX Eagle SL Transmission, 10-52 teeth, 12 speed
Crank
SRAM XX SL Eagle Transmission, 32 teeth
Bottom Bracket
SRAM DUB BSA 73 MTB WIDE
Chain
SRAM XX Eagle SL Transmission, Flattop
Wheels
Rims
Reynolds Blacklabel 309/289 XC, 110x15 mm width front hub, 148x12 mm width rear hub, 30/28 mm inner width, Centerlock, Shimano 12 Speed, material: carbon, Tubeless ready (tubeless tape and valves included), Lifetime warranty
Tires
Maxxis Rekon Race, 29x2.35", fold, TR EXO 120 TPI
Brakes
Brakes
SRAM Level Ultimate Stealth, 2 piston
Cockpit
Handlebar
MERIDA TEAM CC II, material: carbon, 760 mm width, 12.5 mm rise
Headset
Acros ICR MERIDA INTEGRATED neck, Upper and lower IPS sealing
Seat
Saddle
SCRATCH M5 PAS NACK, V-mount adapter, incl. MERIDA minitool
Seatpost
Fox Transfer SL, 30.9 mm diameter, 0 mm setback, S/M/L/XL: 100 mm travel seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.351 mm | 1.291 mm | 1.258 mm | 1.225 mm |
| Bottom Bracket Height | 329 mm | 329 mm | 329 mm | 329 mm |
| Front Center | 695 mm | 715 mm | 738 mm | 762 mm |
| Rake | 44 mm | 44 mm | 43 mm | 44 mm |
| Trail | 100 mm | 100 mm | 101 mm | 100 mm |
| Stack | 585 mm | 585 mm | 595 mm | 604 mm |
| Reach | 433 mm | 453 mm | 473 mm | 493 mm |
| Top Tube Length | 576 mm | 596 mm | 619 mm | 643 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76 ° | 76 ° |
| Seat Tube Length | 400 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 95 mm | 95 mm | 105 mm | 115 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1126 mm | 1146 mm | 1169 mm | 1193 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm |
| Standover Height | 730 mm | 731 mm | 736 mm | 738 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
NINETY-SIX RC 10K is a Merida Ninety Six model. 52 bikes variations carry this model name so far. Check out the entire range from 2024 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
NINETY-SIX RC 10K components
Fork
The NINETY-SIX RC 10K comes factory-installed with the Fox Factory Float 34 fork. This has a travel range of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this bike is Fox Float SL Factory, with a travel distance of 100mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When leaving the production line, the NINETY-SIX RC 10K model has 29″ carbon wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The NINETY-SIX RC 10K comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the NINETY-SIX RC 10K. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
