Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 29" -
Travel Front 100mm -
Fork Fox Factory Float 32
-
Groupset XX1, XX1 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
MD
168cm - 180cm
MD
168cm - 180cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NINETY-SIX CF5
Suspension Fork
Factory Fox 32 Float air fork with 100mm travel, 15mm bolt through axle, Kashima coating and 2 stage remote lockout
Rear Shock
Fox Factory Float Remote
Drivetrain
Rear Derailleur
SRAM XX1
Shift Levers
SRAM XX1 Eagle 12 speed trigger with SRAM MMX clamp
Cassette
SRAM XG 1299 Eagle, 12 speed, 10-50 teeth
Crank
SRAM XX1 34 teeth
Chain
SRAM X01 Eagle
Wheels
Rims
Fulcrum Red Passion 3 wheelset, Boost standard -15mm front and 12mm bolt through axles.
Tires
Maxxis Ikon Exception 2.2" 3C
Brakes
Brakes
SRAM Level Ultimate hydraulic disc, 180mm / 160mm rotors
Brake Levers
SRAM Level Ultimate
Cockpit
Handlebar
MERIDA Team CC 720mm wide flat
Headset
FSA NO.55E
Seat
Saddle
Prologo Scratch 2 Nack
Seatpost
Kindshock Zeta 50mm dropper, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD | MD | MD | LG | XL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.32 mm | 1.32 mm | 1.37 mm | 1.37 mm | 1.34 mm | 1.32 mm |
| Bottom Bracket Height | 353 mm | 353 mm | 353 mm | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 664 mm | 689 mm | 689 mm | 684 mm | 684 mm | 709 mm | 734 mm |
| Rake | 44 mm | 44 mm | 44 mm | 51 mm | 51 mm | 51 mm | 52 mm |
| Trail | 97 mm | 97 mm | 97 mm | 82 mm | 82 mm | 82 mm | 81 mm |
| Stack | 559 mm | 573 mm | 573 mm | 592 mm | 592 mm | 606 mm | 620 mm |
| Reach | 414 mm | 434 mm | 434 mm | 432 mm | 432 mm | 452 mm | 471 mm |
| Top Tube Length | 563 mm | 588 mm | 588 mm | 593 mm | 593 mm | 618 mm | 643 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 420 mm | 460 mm | 460 mm | 460 mm | 460 mm | 510 mm | 560 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 100 mm | 115 mm | 115 mm | 100 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1093 mm | 1118 mm | 1118 mm | 1121 mm | 1121 mm | 1146 mm | 1171 mm |
| Bottom Bracket Drop | 21 mm | 21 mm | 21 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 753 mm | 755 mm | 755 mm | 771 mm | 771 mm | 776 mm | 779 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 168 cm | 168 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 180 cm | 180 cm | 180 cm | 189 cm | 199 cm |
About this model

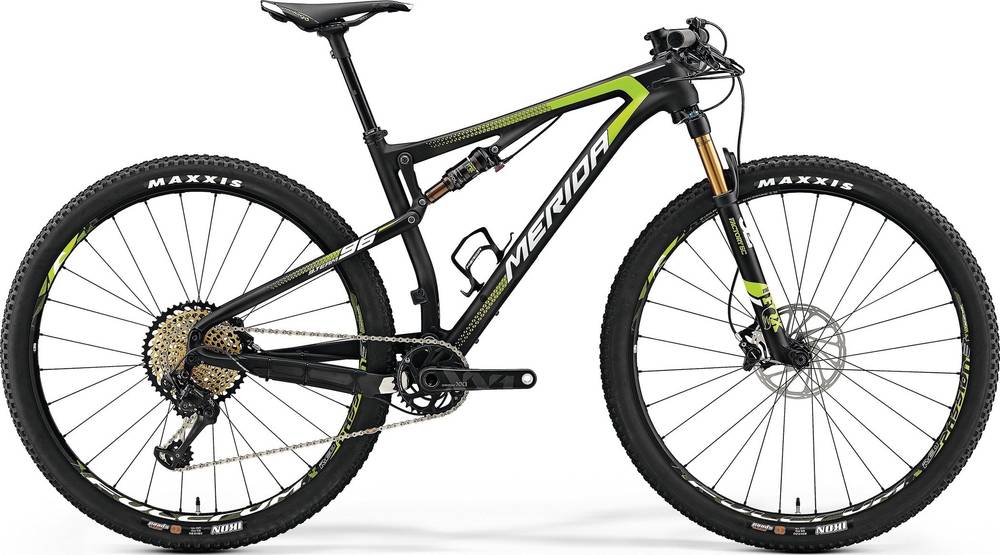

NINETY-SIX TEAM completes the Merida Ninety Six model. Merida released 46 bikes variations of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Crosscountry bikes average weight
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Merida NINETY-SIX TEAM it’s weighing 10 kg (22.05 lbs). At this weight, is much lighter than average. In other words, this model is 24% lighter than the average Crosscountry bike.
NINETY-SIX TEAM components
Fork
The fork installed on this bike is the Fox Factory Float 32 model. The travel on this model is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
As for the wheels, Merida NINETY-SIX TEAM 2018, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The NINETY-SIX TEAM comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 7 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Merida NINETY-SIX TEAM includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
