Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 29" -
Travel Front 100mm -
Fork Fox Performance Float 32
-
Groupset XT -
Suspension Full -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
MD
168cm - 180cm
MD
168cm - 180cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NINETY-SIX CFA
Suspension Fork
FOX 32 FLOAT Performance 100
Rear Shock
FOX FLOAT DPS Performance Elite
Drivetrain
Rear Derailleur
Shimano XT GS Shadow+
Front Derailleur
Shimano XT sideswing
Shift Levers
Shimano XT / Shimano XT 11
Cassette
Shimano XT 11-40 11s
Crank
Shimano: XT 29":36-26 / 27.5":38-24 (BB92)
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC X11
Wheels
Front Hub
Shimano Deore 15 cen / Shimano Deore-12 cen
Rear Hub
Shimano Deore 15 cen / Shimano Deore-12 cen
Rims
DT Swiss 466D
Spokes
Black stainless
Tires
Continental X-King 2.2 fold
Brakes
Brakes
Shimano M615 180 cen / Shimano M615 160 cen
Cockpit
Handlebar
MERIDA pro OS 720 Flat
Headset
FSA No.55 E
Seat
Saddle
Prologo Kappa 3
Seatpost
MERIDA carbon H SB0 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD | MD | MD | LG | XL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.32 mm | 1.32 mm | 1.37 mm | 1.37 mm | 1.34 mm | 1.32 mm |
| Bottom Bracket Height | 353 mm | 353 mm | 353 mm | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 664 mm | 689 mm | 689 mm | 684 mm | 684 mm | 709 mm | 734 mm |
| Rake | 44 mm | 44 mm | 44 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 97 mm | 97 mm | 97 mm | 82 mm | 82 mm | 82 mm | 82 mm |
| Stack | 559 mm | 573 mm | 573 mm | 592 mm | 592 mm | 606 mm | 620 mm |
| Reach | 414 mm | 434 mm | 434 mm | 432 mm | 432 mm | 452 mm | 471 mm |
| Top Tube Length | 563 mm | 588 mm | 588 mm | 593 mm | 593 mm | 618 mm | 643 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 420 mm | 460 mm | 460 mm | 460 mm | 460 mm | 510 mm | 560 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 100 mm | 115 mm | 115 mm | 100 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1101 mm | 1126 mm | 1126 mm | 1129 mm | 1129 mm | 1154 mm | 1179 mm |
| Bottom Bracket Drop | 21 mm | 21 mm | 21 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 753 mm | 755 mm | 755 mm | 771 mm | 771 mm | 776 mm | 779 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 168 cm | 168 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 180 cm | 180 cm | 180 cm | 189 cm | 199 cm |

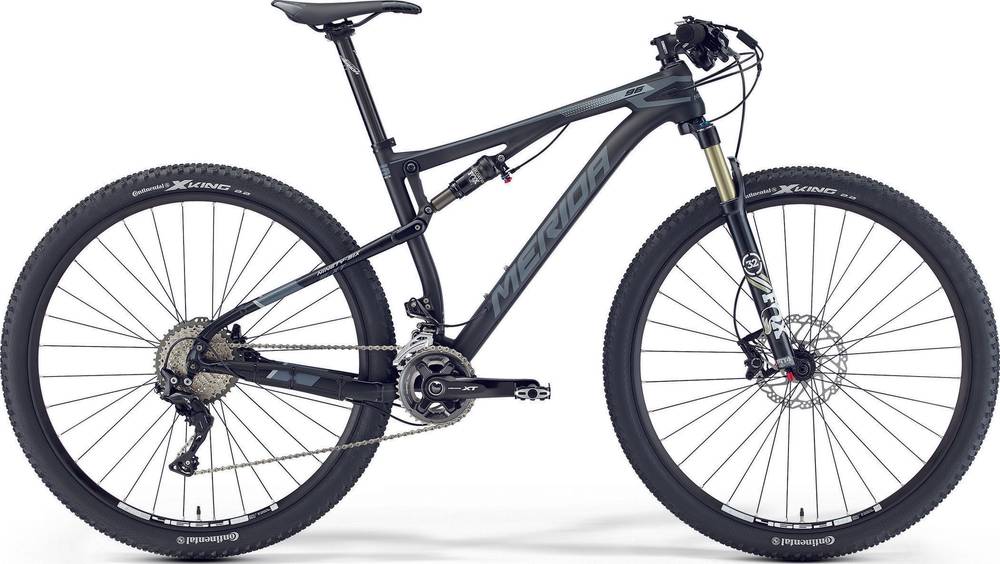

Model Overview
NINETY-SIX XT is part of the Merida Ninety Six model. 46 bikes variations carry this model name so far. You can easily view all of the Merida Ninety Six bikes models from 2016, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Crosscountry bikes average weight
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 12.01 kg (26.48 lbs), Merida bike is slightly lighter than average. To sum up, it’s 3.25% lighter than the average weight of Crosscountry bikes.
Overview of components
Fork
The NINETY-SIX XT comes factory-installed with the Fox Performance Float 32 fork. This has a travel range of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
As for the wheels, Merida NINETY-SIX XT 2016, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The NINETY-SIX XT comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 7 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
