Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 29" -
Travel Front 100mm -
Fork Fox Performance Float 32
-
Groupset XT -
Suspension Full -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
MD
168cm - 180cm
MD
168cm - 180cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NINETY-SIX CFA
Suspension Fork
Fox 32 Float Performance 100mm travel air fork with tapered steerer, 15mm bolt through axle and 2 stage remote lockout
Rear Shock
Fox Performance Float Elite Remote
Drivetrain
Rear Derailleur
Shimano XT Shadow+
Front Derailleur
Shimano XT
Shift Levers
Shimano XT 22 speed rapid fire shifters
Cassette
Shimano M7000, 11 speed, 11-42
Crank
Shimano XT 36-26(27.5“) / 34-24(29“) teeth
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC X11-1
Wheels
Front Hub
Shimano Deore, Boost standard, centerlock with 15mm front and 12mm rear bolt through axles
Rear Hub
Shimano Deore, Boost standard, centerlock with 15mm front and 12mm rear bolt through axles
Rims
MERIDA Expert CC, 22.5mm inner width, tubeless ready
Spokes
Double Butted Black stainless
Tires
Continental X-King 2.2" folding
Brakes
Brakes
Shimano XT hydraulic disc, 180 / 160mm rotor
Brake Levers
Shimano XT
Cockpit
Handlebar
MERIDA Expert CC 720mm wide flat
Headset
FSA NO.55E
Seat
Saddle
Prologo Scratch
Seatpost
MERIDA carbon Expert in line 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD | MD | MD | LG | XL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.32 mm | 1.32 mm | 1.37 mm | 1.37 mm | 1.34 mm | 1.32 mm |
| Bottom Bracket Height | 353 mm | 353 mm | 353 mm | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 664 mm | 689 mm | 689 mm | 684 mm | 684 mm | 709 mm | 734 mm |
| Rake | 44 mm | 44 mm | 44 mm | 51 mm | 51 mm | 51 mm | 52 mm |
| Trail | 97 mm | 97 mm | 97 mm | 82 mm | 82 mm | 82 mm | 81 mm |
| Stack | 559 mm | 573 mm | 573 mm | 592 mm | 592 mm | 606 mm | 620 mm |
| Reach | 414 mm | 434 mm | 434 mm | 432 mm | 432 mm | 452 mm | 471 mm |
| Top Tube Length | 563 mm | 588 mm | 588 mm | 593 mm | 593 mm | 618 mm | 643 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 420 mm | 460 mm | 460 mm | 460 mm | 460 mm | 510 mm | 560 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 100 mm | 115 mm | 115 mm | 100 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1093 mm | 1118 mm | 1118 mm | 1121 mm | 1121 mm | 1146 mm | 1171 mm |
| Bottom Bracket Drop | 21 mm | 21 mm | 21 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 753 mm | 755 mm | 755 mm | 771 mm | 771 mm | 776 mm | 779 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 168 cm | 168 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 180 cm | 180 cm | 180 cm | 189 cm | 199 cm |
About this model

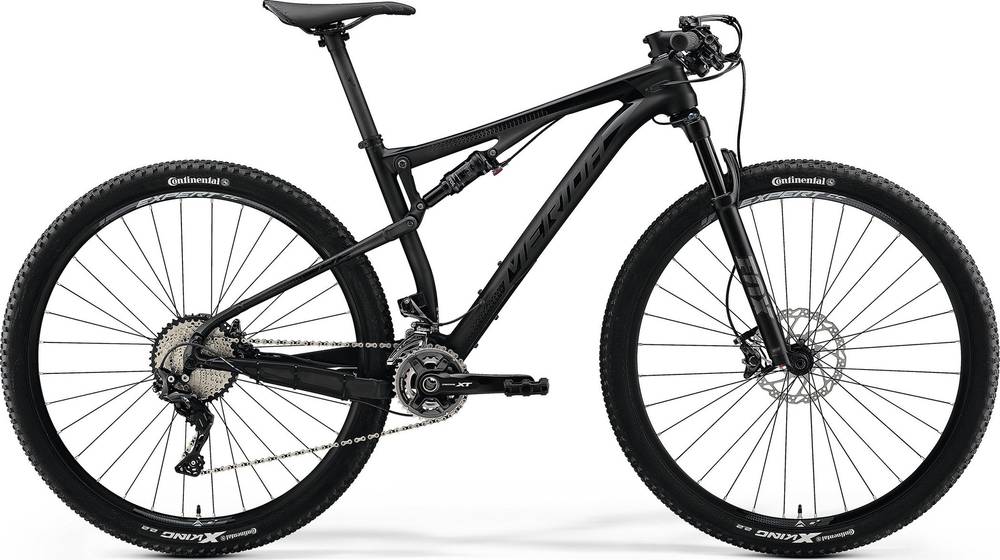

NINETY-SIX XT belongs to the Merida Ninety Six model. Merida launched 46 bikes of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Crosscountry bikes
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Merida NINETY-SIX XT it’s weighing 12.4 kg (27.34 lbs). At this weight, is equally heavier with average. In short, the average Crosscountry bike weight is 0% lower than this one.
Overview of components
Fork
The NINETY-SIX XT comes factory-installed with the Fox Performance Float 32 fork. This has a travel range of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When leaving the production line, the NINETY-SIX XT model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida NINETY-SIX XT is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Merida NINETY-SIX XT bike has 7 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
