Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 26" -
Travel Front 20mm -
Groupset X4, FSA -
Suspension Full -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ONE-EIGHTY
Suspension Fork
Mazocchi 888CR 180 20mm
Rear Shock
RS KAGE RC LM
Drivetrain
Rear Derailleur
RD X4 MEDIUM CAGE BLACK E-COAT
Front Derailleur
No
Shift Levers
No / X4 Trigger shifter
Cassette
SRAM PG820 11-32
Crank
FSA Step Up ISIS 36T
Bottom Bracket
attached
Chain
KMC Z7 8s
Wheels
Front Hub
Bearing disc-20 / Bearing disc-12
Rear Hub
Bearing disc-20 / Bearing disc-12
Rims
DT Swiss 533D-26
Tires
Maxxis Minion DHR II 2.4
Brakes
Brakes
Shimano M506 203 disc
Brake Levers
attached
Cockpit
Handlebar
Gravity light OS 760 R25
Headset
Big Conoid semi neck [1-1/8]
Seat
Saddle
Velo VL-1318
Seatpost
MERIDA pro H SB0 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.506 mm | 1.433 mm | 1.364 mm |
| Bottom Bracket Height | 333 mm | 333 mm | 333 mm |
| Front Center | 731 mm | 751 mm | 774 mm |
| Rake | 55 mm | 55 mm | 56 mm |
| Trail | 103 mm | 103 mm | 102 mm |
| Stack | 592 mm | 592 mm | 592 mm |
| Reach | 393 mm | 413 mm | 434 mm |
| Top Tube Length | 555 mm | 575 mm | 595 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 400 mm | 430 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 120 mm | 120 mm | 120 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1166 mm | 1186 mm | 1209 mm |
| Bottom Bracket Drop | 10 mm | 10 mm | 10 mm |
| Standover Height | 731 mm | 728 mm | 750 mm |
| Wheels | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

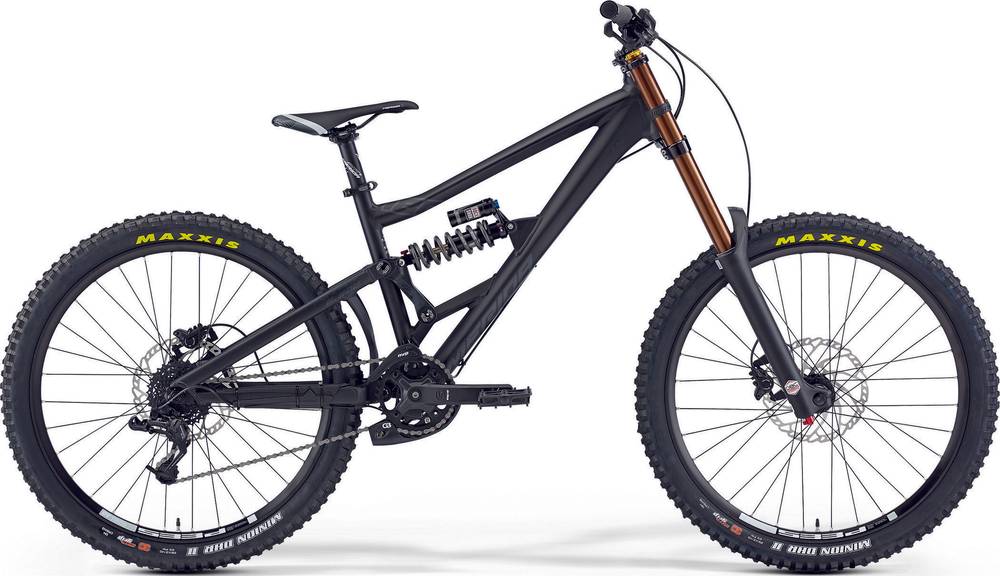

One-Eighty 6. 500 is a Merida One Eighty model. Merida launched 2 bikes of this model so far. You can easily view all of the Merida One Eighty bikes models from 2015, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
One-Eighty 6. 500 components
Wheels
The One-Eighty 6. 500 2015 bike is equipped with 26″ aluminum wheels when leaving the factory. These wheels give you great handling over your bike. However, they provide less traction than 29″ wheels do.
Brakes
When you want to stop the bike in time, the brakes are vital. The One-Eighty 6. 500 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
