Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 26" -
Travel Front 150mm -
Fork Fox Float 32
-
Groupset SLX -
Suspension Full -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
One-Forty 27-D-Single BSC VPP A-Link R12
Suspension Fork
Fox 32 Float 650B CTD O/C (1.5T, 15QR) - Evo 150
Rear Shock
Fox Float CTD LV (No BV) - Evo
Drivetrain
Rear Derailleur
Shimano SLX Shadow+
Front Derailleur
Shimano SLX HD triple
Shift Levers
Shimano SLX ispec
Cassette
Shimano CS-HG-10 11-36
Crank
Shimano SLX 40-30-22
Bottom Bracket
attached
Chain
KMC X10 10s
Wheels
Front Hub
Shimano SLX Cen 15 / Shimano SLX-12 Cen
Rear Hub
Shimano SLX Cen 15 / Shimano SLX-12 Cen
Rims
Alex MD23-27 Disc
Spokes
black stainless
Tires
Schwalbe Nobby Nic 2.35 Perf. fold
Brakes
Brakes
Shimano SLX 180 mm ice Cen
Brake Levers
attached
Cockpit
Handlebar
MERIDA Pro OS 730 R12
Headset
Big Conoid semi Neck
Seat
Saddle
Selle Italia X1
Seatpost
KS SuperNatural SB0 31.6 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17" | 19" | 21" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.41 mm | 1.35 mm | 1.31 mm |
| Bottom Bracket Height | 325 mm | 325 mm | 325 mm | 325 mm |
| Stack | 599 mm | 608 mm | 617 mm | 627 mm |
| Reach | 397 mm | 430 mm | 457 mm | 479 mm |
| Top Tube Length | 567 mm | 602 mm | 632 mm | 657 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 390 mm | 440 mm | 480 mm | 530 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm | 456 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm | 18 mm |
| Wheels | 26" | 26" | 26" | 26" |
About this model

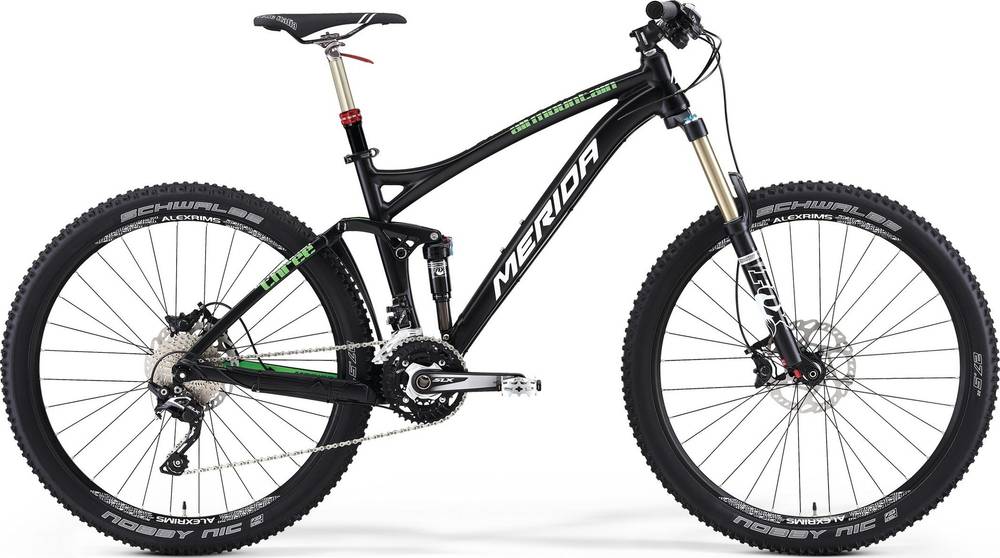

One-Forty 3-B is part of the Merida One Forty model. Merida launched 40 bikes of this model so far. Take a sneak peek at all Merida One Forty bikes models from 2014, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro bikes average price
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Enduro bikes average weight
On a deeper look, we notice that the average weight of an Enduro bike is 14.27 kg (31.46 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
slightly heavier than average, One-Forty 3-B has a weight of 14.29 kg (31.5 lbs). In conclusion, the average Enduro bike weighs 0.14% less than One-Forty 3-B.
Overview of components
Fork
The One-Forty 3-B comes factory-installed with the Fox Float 32 fork. This has a travel range of 150mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When it comes to wheels, the One-Forty 3-B bike is equipped with the 26″ aluminum model. Being a little smaller, these wheels will fit both small and tall riders. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida One-Forty 3-B is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
