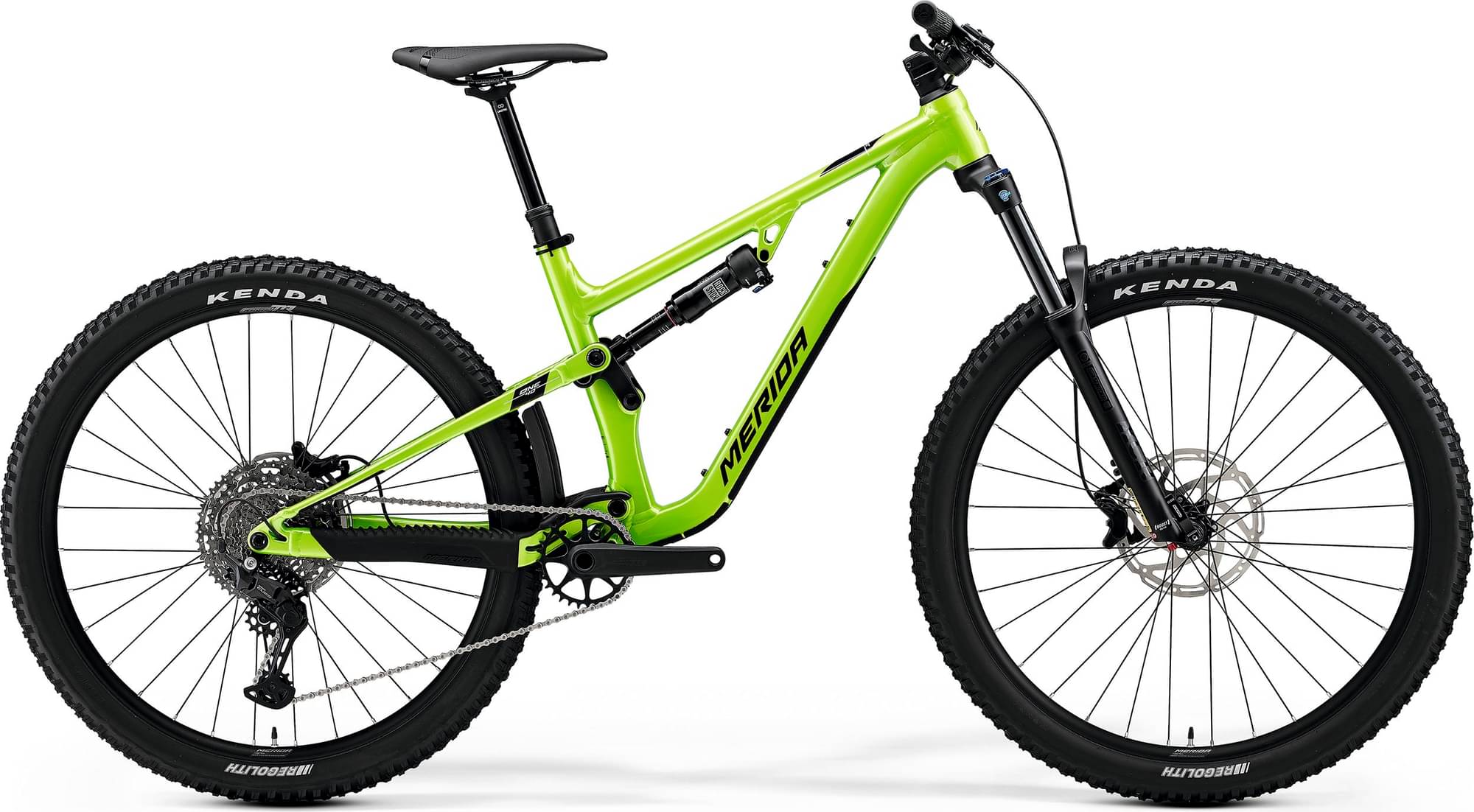

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 143mm -
Fork Suntour XCR Air
-
Groupset CUES -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ONE-FORTY LITE III, 143 mm suspension travel 29", material: aluminium, 29x2.5" max. wheelsize, 148x12 mm axle standard, BSA bottom bracket standard
Suspension Fork
SR Suntour XCR34 2CR, Air, 140 mm, Tapered, 44 mm fork offset, 29x2.4" max. wheelsize
Rear Shock
Rock Shox Deluxe Select+, lockout
Drivetrain
Rear Derailleur
Shimano CUES U6000, GS
Shift Levers
Shimano SL-MT500-L / Shimano CUES U6000
Cassette
Shimano LG400, 11-50 teeth, 11 speed
Crank
MERIDA Expert TR, 32 teeth, 170 mm-S, 175 mm-M up
Bottom Bracket
BSA, 73mm, threaded
Chain
Shimano LG500
Wheels
Front Hub
Shimano TC500-B / Shimano TC500-HM-B, 110x15 mm width front hub, 32 spoke holes, Centerlock, 148x12 mm width rear hub, 32 spoke holes, Centerlock
Rear Hub
Shimano TC500-B / Shimano TC500-HM-B, 110x15 mm width front hub, 32 spoke holes, Centerlock, 148x12 mm width rear hub, 32 spoke holes, Centerlock
Rims
MERIDA COMP TR II, 110x15 mm width front hub, 148x12 mm width rear hub, 28 mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), 29"
Spokes
Black stainless
Tires
Kenda Regolith, 29x2.4", wire
Brakes
Brakes
Tektro Gemini M535, 4 piston
Cockpit
Handlebar
MERIDA EXPERT TR II, material: aluminium, 780 mm width, XS/S 18 mm rise, M/L/XL 30 mm rise
Headset
Acros ICR MERIDA EXTERNAL neck, Upper and lower IPS sealing
Seat
Saddle
MERIDA COMP SL, V-mount
Seatpost
MERIDA EXPERT TR II, 34.9 mm diameter, 10 mm setback, XS/S: 150 mm travel seatpost - M: 170 mm travel seatpost - L/XL: 200 mm travel seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XShort | Short | Mid | Long | XLong |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.425 mm | 1.34 mm | 1.265 mm | 1.21 mm | 1.176 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm | 339 mm |
| Front Center | 742 mm | 769 mm | 797 mm | 830 mm | 863 mm |
| Rake | 44 mm | 44 mm | 45 mm | 44 mm | 45 mm |
| Trail | 126 mm | 126 mm | 125 mm | 126 mm | 125 mm |
| Stack | 607 mm | 607 mm | 607 mm | 616 mm | 629 mm |
| Reach | 426 mm | 453 mm | 480 mm | 509 mm | 535 mm |
| Top Tube Length | 532 mm | 559 mm | 586 mm | 618 mm | 649 mm |
| Seat Tube Angle | 80 ° | 80 ° | 80 ° | 80 ° | 80 ° |
| Seat Tube Length | 400 mm | 410 mm | 425 mm | 445 mm | 470 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 95 mm | 95 mm | 95 mm | 105 mm | 120 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1177 mm | 1204 mm | 1232 mm | 1265 mm | 1298 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 730 mm | 735 mm | 738 mm | 735 mm | 730 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview
ONE-FORTY 400 is part of the Merida One Forty model. There are 46 bikes that carry this model name. Take a sneak peek at all Merida One Forty bikes models from 2024, by clicking here.
Model range prices
The most economical model, the Merida ONE-FORTY 6000 2024 has a starting price of 4109$. Merida ONE-FORTY 8000 2024 on the other hand is the most expensive at 5778$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Overview of components
Fork
The fork installed on this bike is the Suntour XCR Air model. The travel on this model is 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The shock that’s installed on this bike is Rock Shox Deluxe Select+, with a travel distance of 143mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When leaving the production line, the ONE-FORTY 400 model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The ONE-FORTY 400 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Dropper post
Merida ONE-FORTY 400 includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
