Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 27.5" -
Travel Front 140mm -
Fork RockShox Sektor
-
Groupset Deore, Shimano -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ONE-FORTY
Suspension Fork
Rock Shox Sektor Silver RL 27 15SA 140 taper
Rear Shock
FLOAT DPS Performance
Drivetrain
Rear Derailleur
Shimano Deore SGS Shadow+
Front Derailleur
Shimano Deore double side swing
Shift Levers
Shimano Deore
Cassette
Shimano CS-HG50-10 11-36
Crank
Shimano M627 36-22
Chain
KMC X10
Wheels
Front Hub
FoBearing Cen 15 / FoBearing Cen 12
Rear Hub
FoBearing Cen 15 / FoBearing Cen 12
Rims
MERIDA Expert TR
Spokes
Black stainless
Tires
Maxxis DHR II 2.3 TR EXO / Maxxis Forekaster 2.35 TR EXO
Brakes
Brakes
Tektro MA hydraulic 180
Brake Levers
Tektro M285
Cockpit
Handlebar
MERIDA EXPERT 35 760
Headset
Big Conoid semi neck
Seat
Saddle
MERIDA Sport
Seatpost
MERIDA EXPERT Dropper 30.9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.41 mm | 1.35 mm | 1.31 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm |
| Front Center | 677 mm | 713 mm | 744 mm | 771 mm |
| Rake | 39 mm | 39 mm | 39 mm | 39 mm |
| Trail | 109 mm | 109 mm | 109 mm | 109 mm |
| Stack | 599 mm | 608 mm | 617 mm | 627 mm |
| Reach | 397 mm | 430 mm | 457 mm | 479 mm |
| Top Tube Length | 567 mm | 602 mm | 632 mm | 657 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 390 mm | 440 mm | 480 mm | 530 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1128 mm | 1164 mm | 1195 mm | 1222 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm | 18 mm |
| Standover Height | 714 mm | 755 mm | 785 mm | 812 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

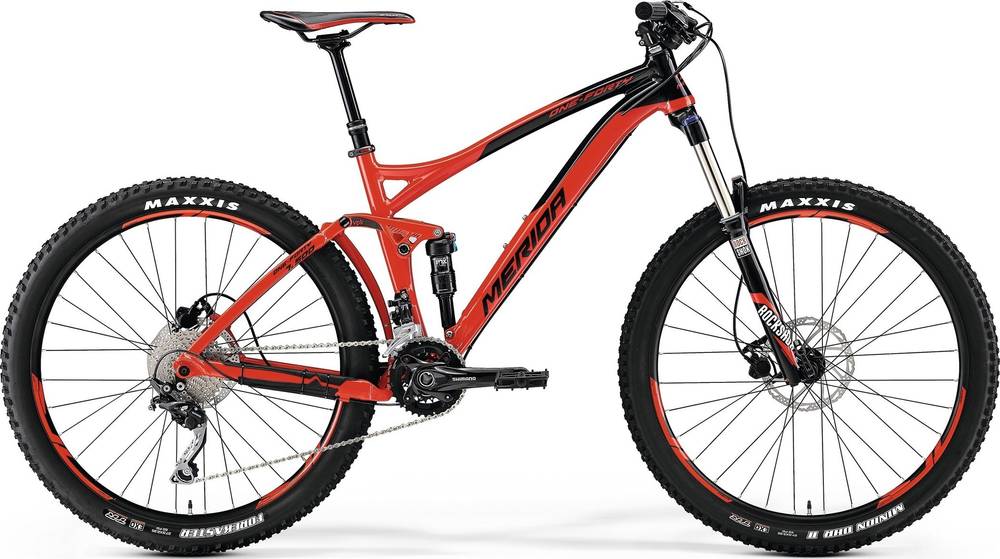

ONE-FORTY 500 is part of the Merida One Forty model. There are 40 bikes that carry this model name. Check out the entire range from 2017 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Trail bikes average weight
Trail bikes weigh an average of 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
considerably heavier than average, ONE-FORTY 500 has a weight of 14.86 kg (32.76 lbs). To sum up, it’s 14.48% heavier than the average weight of Trail bikes.
ONE-FORTY 500 components
Fork
The RockShox Sektor is included from the factory. It has a travel distance of 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When it comes to wheels, the ONE-FORTY 500 bike is equipped with the 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The ONE-FORTY 500 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
ONE-FORTY 500 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
