Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 27.5" -
Fork Manitou Dorado Expert -
Groupset NX -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ONE-FORTY
Suspension Fork
Manitou Mattoc Comp Dorado Air 27-150 taper 15
Rear Shock
FLOAT DPS Performance
Drivetrain
Rear Derailleur
SRAM NX 11
Shift Levers
SRAM NX 11
Cassette
SRAM XG-1150-A1 10-42
Crank
SRAM NX XSYNC 30 STEEL
Chain
KMC X11-1
Wheels
Front Hub
FoBearing disc 15 / FoBearing disc 12 XD
Rear Hub
FoBearing disc 15 / FoBearing disc 12 XD
Rims
MERIDA Expert TR
Spokes
Black stainless
Tires
Maxxis DHR II 2.3 TR EXO / Maxxis Forekaster 2.35 TR EXO
Brakes
Brakes
SRAM Level T 180
Brake Levers
SRAMe Level T
Cockpit
Handlebar
MERIDA EXPERT 35 760
Headset
Big Conoid semi neck
Seat
Saddle
MERIDA Sport
Seatpost
MERIDA EXPERT Dropper 30.9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.41 mm | 1.35 mm | 1.31 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm |
| Front Center | 677 mm | 713 mm | 744 mm | 771 mm |
| Rake | 39 mm | 39 mm | 39 mm | 39 mm |
| Trail | 109 mm | 109 mm | 109 mm | 109 mm |
| Stack | 599 mm | 608 mm | 617 mm | 627 mm |
| Reach | 397 mm | 430 mm | 457 mm | 479 mm |
| Top Tube Length | 567 mm | 602 mm | 632 mm | 657 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 390 mm | 440 mm | 480 mm | 530 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1128 mm | 1164 mm | 1195 mm | 1222 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm | 18 mm |
| Standover Height | 714 mm | 755 mm | 785 mm | 812 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

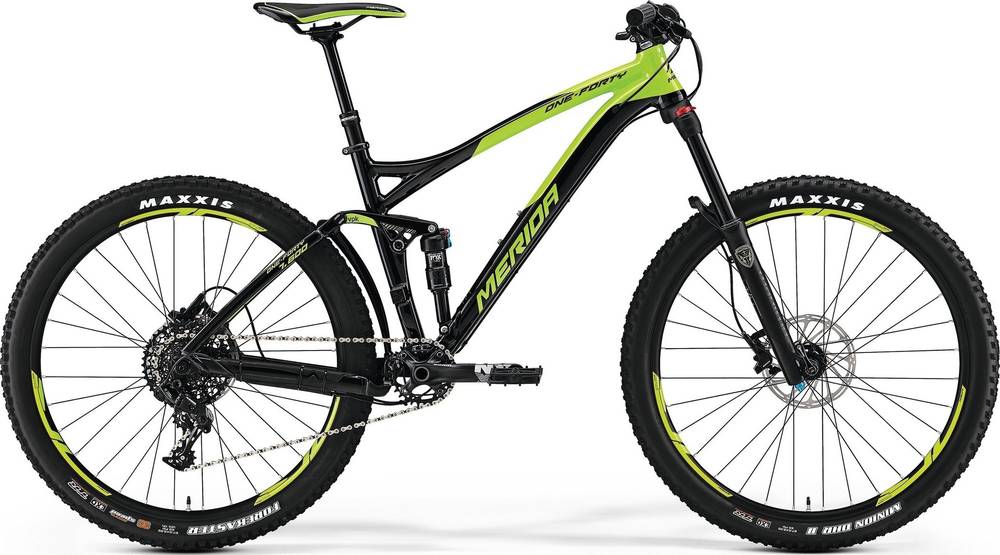

ONE-FORTY 600 is a Merida One Forty model. Merida released 40 bikes variations of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro bikes average price
Our math shows that the average cost of a dependable Enduro bike is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Enduro bikes
Enduro bikes have an average weight of 14.27 kg (31.46 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
ONE-FORTY 600 weighs 14.25 kg (31.42 lbs) and is slightly lighter than the average. In other words, this model is 0.14% lighter than the average Enduro bike.
Overview of components
Fork
The ONE-FORTY 600 comes factory-installed with the Manitou Dorado Expert fork. This has a travel range of mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The ONE-FORTY 600 2017 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Merida ONE-FORTY 600 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Merida ONE-FORTY 600 comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
