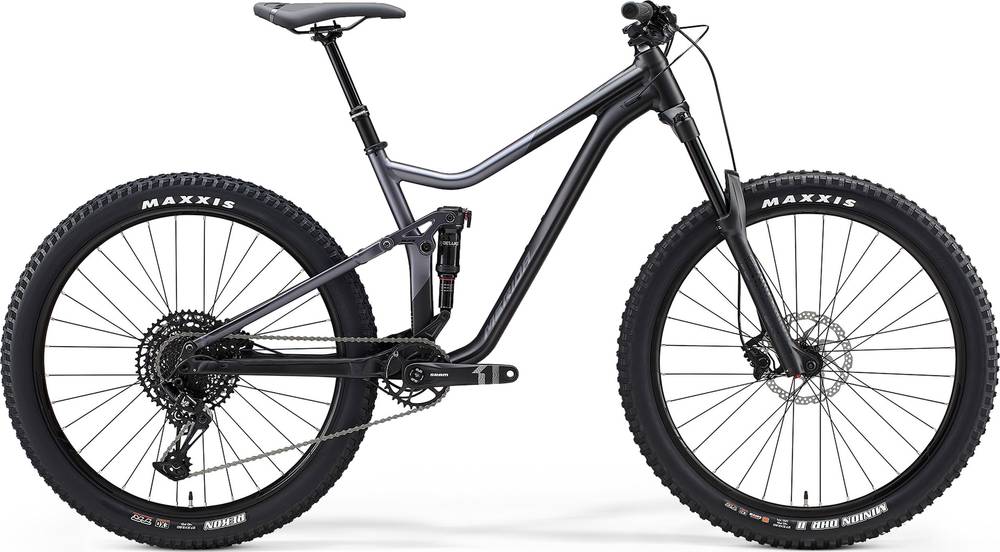

Merida ONE-FORTY 600 2020
2020 Mountain
Estimate price |
2,677$
Weight | 14.71 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Sektor
-
Groupset NX Eagle, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ONE-FORTY LITE, 140mm suspension travel, material: aluminium, 27.5 wheelsize, 148x12mm axle standard, BB92 bottom bracket standard
Suspension Fork
Rock Shox Sektor RL, Air, 150mm suspension travel, Tapered, 37mm fork offset
Rear Shock
Rock Shox Deluxe Select+, lockout
Drivetrain
Rear Derailleur
SRAM NX Eagle
Shift Levers
SRAM NX Eagle
Cassette
SRAM PG-1230 Eagle, 11-50 teeth, 12 speed
Crank
SRAM X1 1000 Eagle, 32 teeth, 170 mm-S, 175 mm-M up
Bottom Bracket
SRAM BB DUB PF MTB 92
Chain
SRAM NX Eagle
Wheels
Front Hub
MERIDA COMP TR
Rear Hub
MERIDA COMP TR
Rims
MERIDA EXPERT TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Tires
Maxxis Minion DHR II / Maxxis Rekon
Brakes
Brakes
Shimano MT-500
Disk Rotors
Shimano RT54
Cockpit
Handlebar
MERIDA EXPERT TR, material: aluminium, 780mm width, 20mm rise
Headset
MERIDA M2339 Neck
Seat
Saddle
MERIDA COMP CC
Seatpost
MERIDA COMP TR, 30.9mm diameter, 0mm setback, S: 100mm travel seatpost - M/L/XL 125mm travel seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.39 mm | 1.36 mm | 1.33 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 710 mm | 736 mm | 760 mm | 788 mm |
| Rake | 42 mm | 42 mm | 40 mm | 42 mm |
| Trail | 110 mm | 110 mm | 112 mm | 110 mm |
| Stack | 580 mm | 594.1 mm | 607.9 mm | 621.6 mm |
| Reach | 408 mm | 428 mm | 448 mm | 468 mm |
| Top Tube Length | 565 mm | 589 mm | 612.7 mm | 636.4 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 410 mm | 435 mm | 475 mm | 515 mm |
| Head Tube Angle | 66.3 ° | 66.3 ° | 66.3 ° | 66.3 ° |
| Head Tube Length | 95 mm | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1137 mm | 1163 mm | 1187 mm | 1215 mm |
| Bottom Bracket Drop | 21 mm | 21 mm | 21 mm | 21 mm |
| Standover Height | 701 mm | 716 mm | 743 mm | 771 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
ONE-FORTY 600 is part of the Merida One Forty model. 40 bikes variations carry this model name so far. You can easily view all of the Merida One Forty bikes models from 2020, here.
Model range prices
The most economical model, the Merida ONE-FORTY 600 2020 has a starting price of 2433$. Merida ONE-FORTY 900 2020 on the other hand is the most expensive at 4622$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Merida released this model in 2020, its price was 2433$. In conclusion, this bike price is 13.52% lower than the price of the average Trail bike.
Trail bikes average weight
Trail bikes weigh an average of 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
considerably heavier than average, ONE-FORTY 600 has a weight of 14.71 kg (32.43 lbs). In short, the average Trail bike weight is 13.33% lower than this one.
ONE-FORTY 600 components
Fork
The ONE-FORTY 600 comes factory-installed with the RockShox Sektor fork. This has a travel range of 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
From the factory, it comes with the Rock Shox Deluxe Select+ rear shock model, which has a travel of 140mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When leaving the production line, the ONE-FORTY 600 model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida ONE-FORTY 600 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Merida ONE-FORTY 600 includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
