Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 27.5" -
Travel Front 140mm -
Groupset Deore -
Suspension Full -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ONE-FORTY
Suspension Fork
Rock Shox Sector TK27SA-15mm 140 taper
Rear Shock
Fox Float CTD LV (No BV) - Evolution
Drivetrain
Rear Derailleur
Shimano Deore Shadow+
Front Derailleur
Shimano Deore triple
Shift Levers
Shimano Deore
Cassette
Shimano CS-HG50-10 11-36
Crank
Shimano M523 octa 40-30-22
Bottom Bracket
Shimano octalink
Chain
KMC Z10-10s
Wheels
Front Hub
Bearing Centerlock-15 / Bearing Centerlock-12
Rear Hub
Bearing Centerlock-15 / Bearing Centerlock-12
Rims
DT Swiss 533D-27
Tires
MERIDA lite 27 2.25 KV
Brakes
Brakes
Tektro Auriga hydraulic 180
Brake Levers
attached
Cockpit
Handlebar
MERIDA pro OS 740 R12
Headset
Big Conoid semi neck
Seat
Saddle
MERIDA Sport 1
Seatpost
KS SuperNatural SB0 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.41 mm | 1.35 mm | 1.31 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm |
| Front Center | 677 mm | 713 mm | 744 mm | 771 mm |
| Rake | 45 mm | 39 mm | 39 mm | 39 mm |
| Trail | 99 mm | 109 mm | 109 mm | 109 mm |
| Stack | 599 mm | 608 mm | 617 mm | 627 mm |
| Reach | 397 mm | 430 mm | 457 mm | 479 mm |
| Top Tube Length | 567 mm | 602 mm | 632 mm | 657 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 390 mm | 440 mm | 480 mm | 530 mm |
| Head Tube Angle | 67.5 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1128 mm | 1164 mm | 1195 mm | 1222 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm | 18 mm |
| Standover Height | 714 mm | 755 mm | 785 mm | 812 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

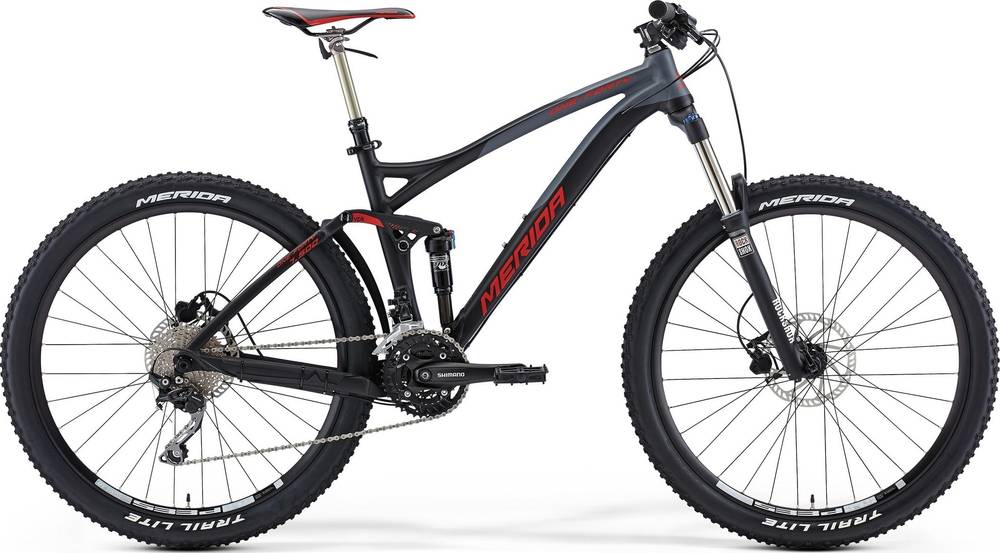

One-Forty 7. 500 completes the Merida One Forty model. There are 40 bikes that carry this model name. Take a sneak peek at all Merida One Forty bikes models from 2015, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Wheels size
When leaving the production line, the One-Forty 7. 500 model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida One-Forty 7. 500 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Merida One-Forty 7. 500 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
