Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 27.5" -
Fork Manitou Mattoc Comp -
Groupset GX, SRAM -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ONE-FORTY
Suspension Fork
Manitou Mattoc Expert 27-150 taper 15
Rear Shock
FOX FLOAT DPS Performance
Drivetrain
Rear Derailleur
SRAM GX 11
Shift Levers
SRAM GX
Cassette
CS XG 1150 10-42
Crank
SRAM S1000 30T (BSA)
Bottom Bracket
BSA, 73mm, threaded
Chain
SRAM PCX1
Wheels
Front Hub
Bearing disc-15 / Bearing disc-12 11s
Rear Hub
Bearing disc-15 / Bearing disc-12 11s
Rims
SunRingle Helix TR27
Spokes
Black stainless
Tires
Schwalbe Hans Dampf 2.35 TSC 27
Brakes
Brakes
SRAM DB5 180
Cockpit
Handlebar
MERIDA pro OS 760 R12
Headset
FSA NO.57/61BP
Seat
Saddle
MERIDA Sport Pro
Seatpost
Hilo Strate
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.41 mm | 1.35 mm | 1.31 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm |
| Front Center | 677 mm | 713 mm | 744 mm | 771 mm |
| Rake | 39 mm | 39 mm | 39 mm | 39 mm |
| Trail | 109 mm | 109 mm | 109 mm | 109 mm |
| Stack | 599 mm | 608 mm | 617 mm | 627 mm |
| Reach | 397 mm | 430 mm | 457 mm | 479 mm |
| Top Tube Length | 567 mm | 602 mm | 632 mm | 657 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 390 mm | 440 mm | 480 mm | 530 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1128 mm | 1164 mm | 1195 mm | 1222 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm | 18 mm |
| Standover Height | 714 mm | 755 mm | 785 mm | 812 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

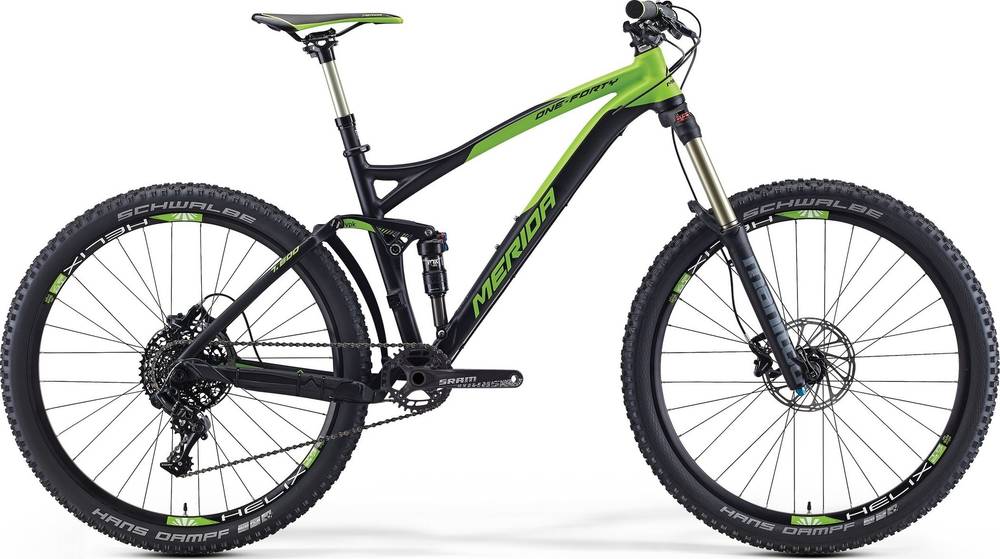

ONE-FORTY 7. 600 is a Merida One Forty model. 40 bikes variations carry this model name so far. Check out the entire range from 2016 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro bikes average price
Our math shows that the average cost of a dependable Enduro bike is 3599$. However, even though the average price of an Enduro bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Enduro bikes
Enduro bikes have an average weight of 14.27 kg (31.46 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 13.91 kg (30.67 lbs), Merida bike is slightly lighter than average. In other words, this model is 2.59% lighter than the average Enduro bike.
ONE-FORTY 7. 600 components
Fork
The fork installed on this bike is the Manitou Mattoc Comp model. The travel on this model is mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
As for the wheels, Merida ONE-FORTY 7. 600 2016, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida ONE-FORTY 7. 600 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Merida ONE-FORTY 7. 600 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
