Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 27.5" -
Fork Fox Performance Float 34 -
Groupset XT -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ONE-FORTY
Suspension Fork
FOX 34 FLOAT Performance
Rear Shock
FOX FLOAT DPS Performance
Drivetrain
Rear Derailleur
Shimano XT GS Shadow+
Front Derailleur
Shimano XT HD double
Shift Levers
Shimano XT-i
Cassette
Shimano XT 11-40
Crank
Shimano XT 34-24 (BSA)
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC X11EL
Wheels
Front Hub
Shimano XT 15 cen / Shimano XT 12-cen
Rear Hub
Shimano XT 15 cen / Shimano XT 12-cen
Rims
SunRingle Helix TR27
Spokes
Black stainless
Tires
Schwalbe Hans Dampf 2.35 TSC 27 / Schwalbe Hans Dampf 2.25 TSC 27
Brakes
Brakes
Shimano XT-Fin 180 cen ice
Cockpit
Handlebar
MERIDA pro OS 760 R12
Headset
FSA NO.410P/NO.55E
Seat
Saddle
Prologo Kappa 3
Seatpost
Hilo Strate
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.41 mm | 1.35 mm | 1.31 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm |
| Front Center | 677 mm | 713 mm | 744 mm | 771 mm |
| Rake | 39 mm | 39 mm | 39 mm | 39 mm |
| Trail | 109 mm | 109 mm | 109 mm | 109 mm |
| Stack | 599 mm | 608 mm | 617 mm | 627 mm |
| Reach | 397 mm | 430 mm | 457 mm | 479 mm |
| Top Tube Length | 567 mm | 602 mm | 632 mm | 657 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 390 mm | 440 mm | 480 mm | 530 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1128 mm | 1164 mm | 1195 mm | 1222 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm | 18 mm |
| Standover Height | 714 mm | 755 mm | 785 mm | 812 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

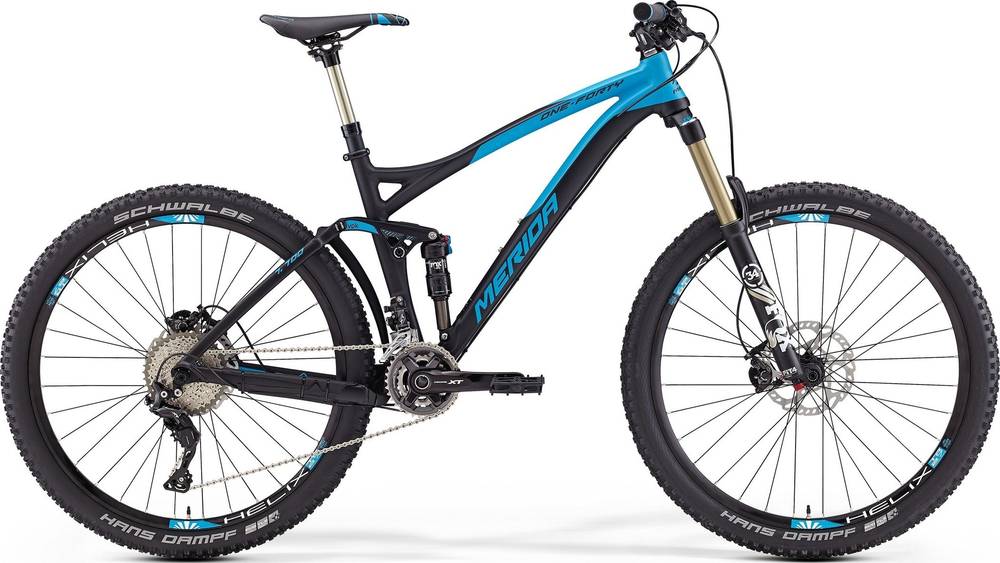

ONE-FORTY 7. 700 is a Merida One Forty model. Merida released 40 bikes variations of this model so far. You can easily view all of the Merida One Forty bikes models from 2016, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro bikes
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Enduro bikes average weight
Enduro bikes have an average weight of 14.27 kg (31.46 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
ONE-FORTY 7. 700 weighs 13.57 kg (29.92 lbs) and is a bit lighter than the average. In other words, this model is 5.16% lighter than the average Enduro bike.
Overview of components
Fork
Merida ONE-FORTY 7. 700 2016 bike is equipped with the Fox Performance Float 34 fork, and has mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The wheels on ONE-FORTY 7. 700 are the 27.5″ aluminum type. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida ONE-FORTY 7. 700 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
