Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Revelation RC
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ONE-FORTY
Suspension Fork
Rock Shox Revelation RC Air fork with tapered steerer, 150mm travel and 15mm bolt through boost axle standard
Rear Shock
Rock Shox Deluxe RL
Drivetrain
Rear Derailleur
Shimano XT Shadow+
Front Derailleur
N/A
Shift Levers
Shimano SLX rapid fire, 11 speed
Cassette
Shimano M7000, 11 speed, 11-46 teeth
Crank
Shimano SLX 30 teeth
Chain
KMC X11-1
Chain Guide
N/A
Pedals
None included
Wheels
Front Hub
Joytech FoBearing 15X110mm 6B / Shimano Deore 12X148mm centerlock
Rear Hub
Joytech FoBearing 15X110mm 6B / Shimano Deore 12X148mm centerlock
Rims
MERIDA Expert TR, 29mm inner width tubeless ready
Spokes
Double Butted Black stainless
Tires
Maxxis DHR II 2.6" TR EXO front and Maxxis Rekon 2.6" TR EXO rear
Brakes
Brakes
Shimano M500 hydraulic disc, 180mm rotors
Brake Levers
Shimano M500
Cockpit
Stem
Merida Expert TR, 3d forged 6061 aluminum, oversize clamp
Handlebar
MERIDA Expert TR double butted 6061 aluminium, 20mm rise, 760mm wide
Headset
MERIDA M2339
Seat
Saddle
MERIDA Sport
Seatpost
MERIDA Expert Dropper 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.39 mm | 1.36 mm | 1.33 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 710 mm | 736 mm | 760 mm | 788 mm |
| Rake | 42 mm | 42 mm | 40 mm | 42 mm |
| Trail | 110 mm | 110 mm | 112 mm | 110 mm |
| Stack | 580.4 mm | 594.1 mm | 607.9 mm | 621.6 mm |
| Reach | 408 mm | 428 mm | 448 mm | 468 mm |
| Top Tube Length | 565.4 mm | 589 mm | 612.7 mm | 636.4 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 410 mm | 435 mm | 475 mm | 515 mm |
| Head Tube Angle | 66.3 ° | 66.3 ° | 66.3 ° | 66.3 ° |
| Head Tube Length | 95 mm | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1137 mm | 1163 mm | 1187 mm | 1215 mm |
| Bottom Bracket Drop | 21 mm | 21 mm | 21 mm | 21 mm |
| Standover Height | 701 mm | 716 mm | 743 mm | 771 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

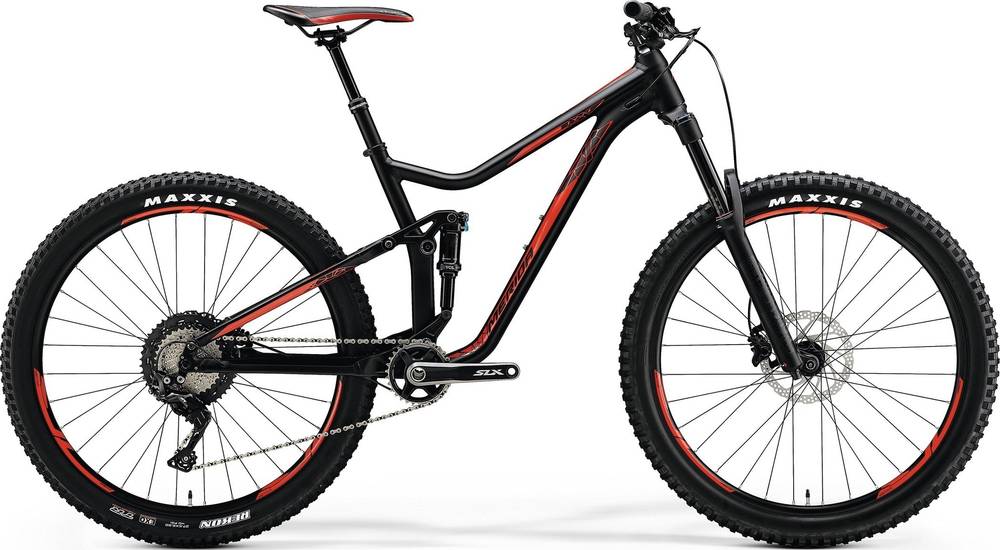

Model Overview
ONE-FORTY 700 completes the Merida One Forty model. Merida released 40 bikes variations of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro bikes average price
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Enduro bikes average weight
The average weight for Enduro bikes is 14.27 kg (31.46 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Merida ONE-FORTY 700 it’s weighing 14.55 kg (32.08 lbs). At this weight, is slightly heavier than average. In other words, this model is 1.96% heavier than the average Enduro bike.
Overview of components
Fork
The fork installed on this bike is the RockShox Revelation RC model. The travel on this model is 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
As for the rear shock, this bike has the Rock Shox Deluxe RL model, with a travel of 140mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
As for the wheels, Merida ONE-FORTY 700 2018, has a 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
ONE-FORTY 700 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
A dropper post is included with the ONE-FORTY 700. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
