Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 27.5" -
Travel Front 150mm -
Fork RockShox Revelation RC
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ONE-FORTY
Suspension Fork
Rock Shox Revelation RC, Air, 150mm suspension travel, Tapered
Rear Shock
Rock Shox Deluxe RL, lockout
Drivetrain
Rear Derailleur
Shimano XT Shadow+
Shift Levers
no / Shimano SLX
Cassette
Shimano M7000, 11-46 teeth, 11 speed
Crank
Shimano SLX, 30 teeth
Chain
KMC X11
Wheels
Front Hub
Joytech D791SB, 110x15mm width, 32 spoke holes, 6 bolt / Shimano Deore, 148x12mm width, 32 spoke holes, Centerlock
Rear Hub
Joytech D791SB, 110x15mm width, 32 spoke holes, 6 bolt / Shimano Deore, 148x12mm width, 32 spoke holes, Centerlock
Rims
MERIDA Expert TR, 29mm inner width
Spokes
Double Butted Black stainless
Tires
Maxxis Minion DHR II, 27.5x2.6", fold, TR EXO 3C / Maxxis Rekon, 27.5x2.6", fold, TR EXO Dual
Brakes
Brakes
Shimano MT-500
Brake Levers
Shimano M500
Cockpit
Handlebar
MERIDA Expert TR, 780mm width, 20mm rise
Headset
MERIDA M2339 Neck, 2191025950
Seat
Saddle
MERIDA Comp CC
Seatpost
MERIDA EXPERT TR, 30.9mm diameter, 0mm setback, S: 100mm travel seatpost - M/L/XL 125mm travel seatpost,
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.39 mm | 1.36 mm | 1.33 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 710 mm | 736 mm | 760 mm | 788 mm |
| Rake | 42 mm | 42 mm | 40 mm | 42 mm |
| Trail | 110 mm | 110 mm | 112 mm | 110 mm |
| Stack | 580.4 mm | 594.1 mm | 607.9 mm | 621.6 mm |
| Reach | 408 mm | 428 mm | 448 mm | 468 mm |
| Top Tube Length | 565.4 mm | 589 mm | 612.7 mm | 636.4 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 410 mm | 435 mm | 475 mm | 515 mm |
| Head Tube Angle | 66.3 ° | 66.3 ° | 66.3 ° | 66.3 ° |
| Head Tube Length | 95 mm | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1137 mm | 1163 mm | 1187 mm | 1215 mm |
| Bottom Bracket Drop | 21 mm | 21 mm | 21 mm | 21 mm |
| Standover Height | 701 mm | 716 mm | 743 mm | 771 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

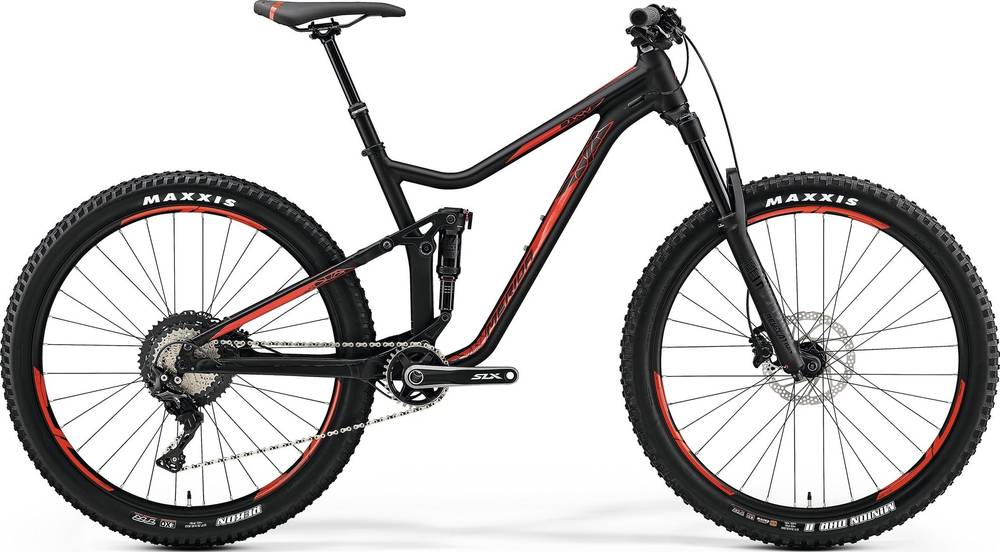

ONE-FORTY 700 belongs to the Merida One Forty model. There are 40 bikes that carry this model name. You can get a glimpse at all models from 2019, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro bikes average price
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Enduro bikes
If we make a quick analysis of the average weight of an Enduro bike, we get 14.27 kg (31.46 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Merida ONE-FORTY 700 it’s weighing 14.26 kg (31.44 lbs). At this weight, is slightly lighter than average. In other words, this model is 0.07% lighter than the average Enduro bike.
ONE-FORTY 700 components
Fork
Merida ONE-FORTY 700 2019 bike is equipped with the RockShox Revelation RC fork, and has 150mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The ONE-FORTY 700 2019 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida ONE-FORTY 700 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
ONE-FORTY 700 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Merida ONE-FORTY 700 comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
