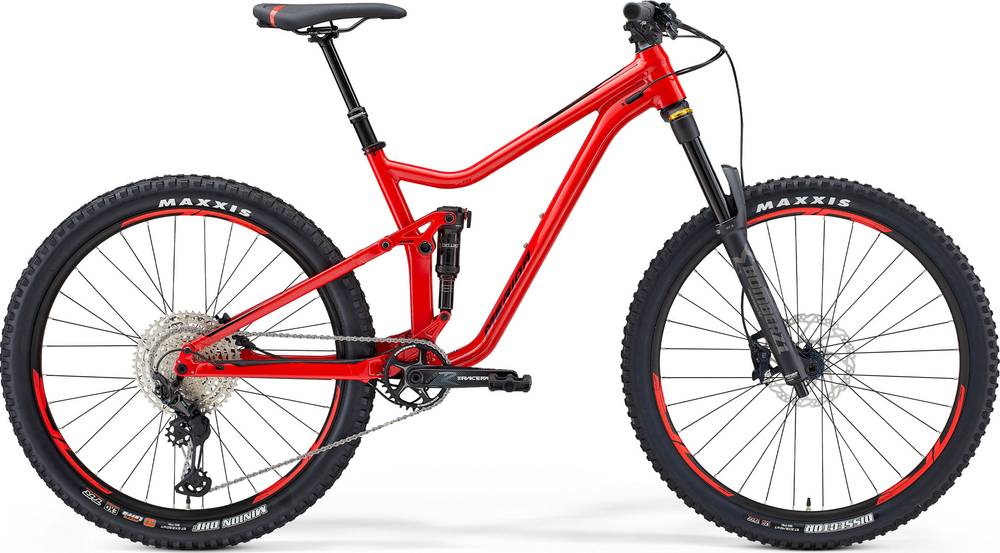

Merida ONE-FORTY 700 2021
2021 Mountain
Estimate price |
3,479$
Weight | 14.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Marzocchi Bomber Z1
-
Groupset XT, Race Face -
Suspension Full -
Battery MERIDA Multitool with saddlebox -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ONE-FORTY LITE, 140mm suspension travel, material: aluminium, 27.5x2.6" max. wheelsize, 148x12mm axle standard, BB92 bottom bracket standard
Suspension Fork
Marzocchi Z1, Air, 150mm suspension travel, Tapered, 37mm fork offset, 27.5x2.8" max. wheelsize
Rear Shock
Rock Shox Deluxe Select+, lockout
Drivetrain
Rear Derailleur
Shimano XT M8100 Shadow+, SGS
Shift Levers
Shimano SL -MT500-IL / Shimano XT
Cassette
Shimano Deore M6100, 10-51 teeth, 12 speed
Crank
Race Face Aeffect R, 32 teeth, 170 mm-S, 175 mm-M up
Bottom Bracket
Race Face BB BB92– Ø24mm
Chain
KMC X12
Wheels
Front Hub
Shimano SLX, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 32 spoke holes, Centerlock
Rear Hub
Shimano SLX, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 32 spoke holes, Centerlock
Rims
MERIDA EXPERT TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Tires
Maxxis Minion DHF, 27.5x2.5", fold, TR EXO 3C MaxxTera
Brakes
Brakes
Shimano SLX M7120, 4 piston
Disk Rotors
Shimano RT54, 180mm
Cockpit
Stem
MERIDA EXPERT TR, material: aluminium, 35mm diameter, 0° stem angle, 50 mm all sizes
Handlebar
MERIDA EXPERT TR, material: aluminium, 780mm width, 20mm rise
Headset
MERIDA M2339 Neck
Seat
Saddle
MERIDA COMP CC
Seatpost
MERIDA EXPERT TR, 30.9mm diameter, 0mm setback, S: 125mm travel seatpost - M 150mm travel seatpost - L/XL 170mm travel seatpost
Motor & Battery
Battery
MERIDA Multitool with saddlebox
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.39 mm | 1.36 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm |
| Front Center | 710 mm | 736 mm | 760 mm |
| Rake | 42 mm | 42 mm | 40 mm |
| Trail | 110 mm | 110 mm | 112 mm |
| Stack | 580 mm | 594.1 mm | 607.9 mm |
| Reach | 408 mm | 428 mm | 448 mm |
| Top Tube Length | 565 mm | 589 mm | 612.7 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 410 mm | 435 mm | 475 mm |
| Head Tube Angle | 66.3 ° | 66.3 ° | 66.3 ° |
| Head Tube Length | 95 mm | 110 mm | 125 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1137 mm | 1163 mm | 1187 mm |
| Bottom Bracket Drop | 21 mm | 21 mm | 21 mm |
| Standover Height | 701 mm | 716 mm | 743 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
ONE-FORTY 700 completes the Merida One Forty model. Merida released 40 bikes variations of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Merida ONE-FORTY 400 2021 is the cheapest bike model and costs 1639$. Merida ONE-FORTY 700 2021 is the most expensive one and costs 3163$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2021 and its price was 3163$. Comparing the average cost of a Trail bike to this one, you will see that ONE-FORTY 700 price is 14.52% higher.
Average weight for Trail bikes
Trail bikes weigh an average of 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
considerably heavier than average, ONE-FORTY 700 has a weight of 14.5 kg (31.97 lbs). To sum up, it’s 11.71% heavier than the average weight of Trail bikes.
ONE-FORTY 700 components
Fork
The ONE-FORTY 700 comes factory-installed with the Marzocchi Bomber Z1 fork. This has a travel range of 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this bike has the Rock Shox Deluxe Select+ model, with a travel of 140mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When it comes to wheels, the ONE-FORTY 700 bike is equipped with the 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The ONE-FORTY 700 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
A dropper post is included with the ONE-FORTY 700. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
