Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 27.5" -
Travel Front 150mm -
Fork RockShox Revelation RC
-
Groupset GX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ONE-FORTY
Suspension Fork
Rock Shox Revelation RC, Air, 150mm suspension travel, Tapered
Rear Shock
Rock Shox Deluxe RL, lockout
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
no / SRAM GX Eagle
Cassette
SRAM XG 1275 Eagle, 10-50 teeth, 12 speed
Crank
SRAM Descendant 6K Eagle, 32 teeth
Chain
SRAM GX Eagle
Wheels
Front Hub
Joytech D791SB, 110x15mm width, 32 spoke holes, 6 bolt / Joytech D462SB, 148x12mm width, 32 spoke holes, 6 bolt, SRAM XD
Rear Hub
Joytech D791SB, 110x15mm width, 32 spoke holes, 6 bolt / Joytech D462SB, 148x12mm width, 32 spoke holes, 6 bolt, SRAM XD
Rims
MERIDA Expert TR, 29mm inner width
Spokes
Double Butted Black stainless
Tires
Maxxis Minion DHR II, 27.5x2.6", fold, TR EXO 3C / Maxxis Rekon, 27.5x2.6", fold, TR EXO Dual
Brakes
Brakes
SRAM Code R
Brake Levers
SRAM Code R
Cockpit
Handlebar
MERIDA Expert TR, 780mm width, 20mm rise
Headset
MERIDA M2339 Neck, 2191025950
Seat
Saddle
Prologo Nago X20
Seatpost
KS LEV Integra, 30.9mm diameter, 0mm setback, S 125mm travel seatpost - M/L/XL 150mm travel seatpost,
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.39 mm | 1.36 mm | 1.33 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 710 mm | 736 mm | 760 mm | 788 mm |
| Rake | 42 mm | 42 mm | 40 mm | 42 mm |
| Trail | 110 mm | 110 mm | 112 mm | 110 mm |
| Stack | 580.4 mm | 594.1 mm | 607.9 mm | 621.6 mm |
| Reach | 408 mm | 428 mm | 448 mm | 468 mm |
| Top Tube Length | 565.4 mm | 589 mm | 612.7 mm | 636.4 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 410 mm | 435 mm | 475 mm | 515 mm |
| Head Tube Angle | 66.3 ° | 66.3 ° | 66.3 ° | 66.3 ° |
| Head Tube Length | 95 mm | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1137 mm | 1163 mm | 1187 mm | 1215 mm |
| Bottom Bracket Drop | 21 mm | 21 mm | 21 mm | 21 mm |
| Standover Height | 701 mm | 716 mm | 743 mm | 771 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

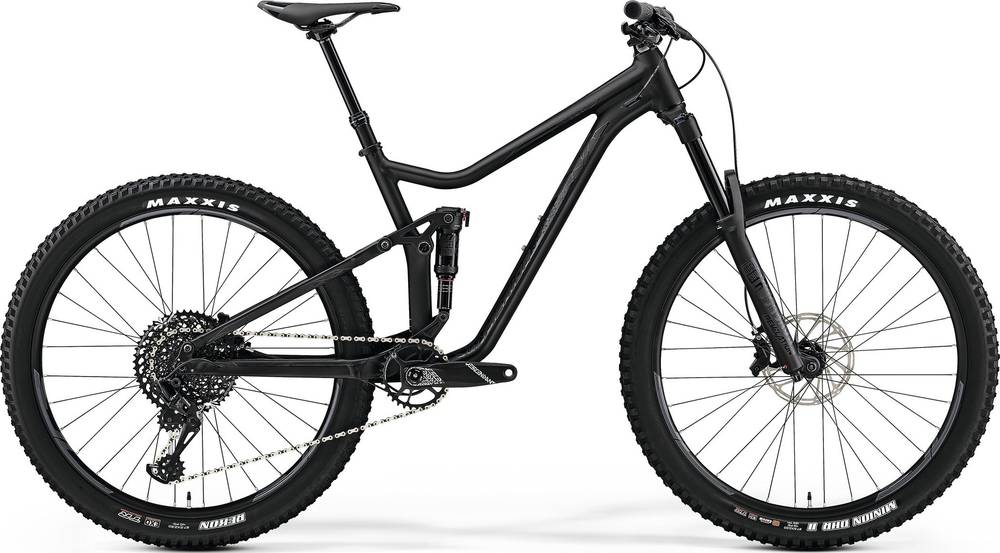

ONE-FORTY 800 is a Merida One Forty model. Merida launched 40 bikes of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro bikes
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Enduro bikes
On a deeper look, we notice that the average weight of an Enduro bike is 14.27 kg (31.46 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Merida ONE-FORTY 800 it’s weighing 14.36 kg (31.66 lbs). At this weight, is slightly heavier than average. In conclusion, the average Enduro bike weighs 0.63% less than ONE-FORTY 800.
ONE-FORTY 800 components
Fork
This bike has the RockShox Revelation RC fork installed. The fork’s travel is 150mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
As for the wheels, Merida ONE-FORTY 800 2019, has a 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida ONE-FORTY 800 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
