Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Pike RC
-
Groupset GX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ONE-FORTY
Suspension Fork
Rock Shox Pike RC, Air, 150mm suspension travel, Tapered
Rear Shock
Rock Shox Deluxe RL, lockout
Drivetrain
Rear Derailleur
SRAM GX Eagle
Front Derailleur
N/A
Shift Levers
no / SRAM GX Eagle
Cassette
SRAM XG 1275 Eagle, 10-50 teeth, 12 speed
Crank
SRAM Descendant 6K Eagle, 32 teeth
Bottom Bracket
SRAM BB DUB press-fit MTB 92
Chain
SRAM GX Eagle
Chain Guide
N/A
Pedals
None included
Wheels
Front Hub
attached
Rear Hub
attached
Rims
FSA Gradient LTD, 110x15mm width front hub, 148x12mm width rear hub, 27.5mm inner width, 6 bolt, SRAM XD
Spokes
attached
Tires
Maxxis Minion DHR II, 27.5x2.6", fold, TR EXO 3C / Maxxis Rekon, 27.5x2.6", fold, TR EXO Dual
Brakes
Brakes
SRAM Code R
Brake Levers
SRAM Code R
Cockpit
Stem
Merida Expert TR, 35mm diameter, 0° stem angle, 50mm length
Handlebar
MERIDA Expert TR, 780mm width, 20mm rise
Grips
Merida Expert EC
Headset
MERIDA M2339 Neck, 2191025950
Seat
Saddle
Prologo Nago X20
Seatpost
KS LEV Integra, 30.9mm diameter, 0mm setback, S 125mm travel seatpost - M/L/XL 150mm travel seatpost,
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.39 mm | 1.36 mm | 1.33 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 710 mm | 736 mm | 760 mm | 788 mm |
| Rake | 42 mm | 42 mm | 40 mm | 42 mm |
| Trail | 110 mm | 110 mm | 112 mm | 110 mm |
| Stack | 580.4 mm | 594.1 mm | 607.9 mm | 621.6 mm |
| Reach | 408 mm | 428 mm | 448 mm | 468 mm |
| Top Tube Length | 565.4 mm | 589 mm | 612.7 mm | 636.4 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 410 mm | 435 mm | 475 mm | 515 mm |
| Head Tube Angle | 66.3 ° | 66.3 ° | 66.3 ° | 66.3 ° |
| Head Tube Length | 95 mm | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1137 mm | 1163 mm | 1187 mm | 1215 mm |
| Bottom Bracket Drop | 21 mm | 21 mm | 21 mm | 21 mm |
| Standover Height | 701 mm | 716 mm | 743 mm | 771 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

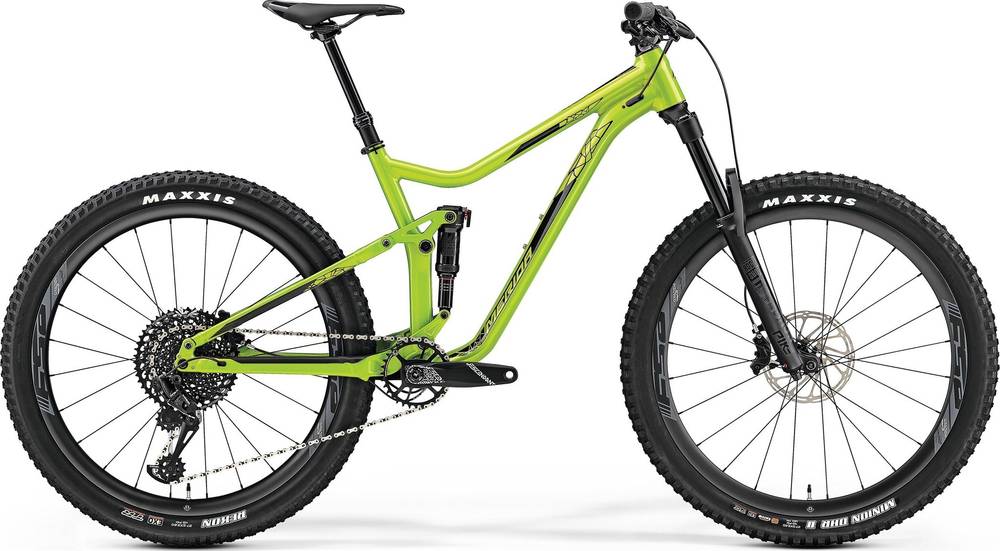

ONE-FORTY 900 belongs to the Merida One Forty model. Merida released 40 bikes variations of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Enduro bikes
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Enduro bikes average weight
Enduro bikes weigh an average of 14.27 kg (31.46 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
ONE-FORTY 900 weighs 13.8 kg (30.42 lbs) and is slightly lighter than the average. To sum up, it’s 3.41% lighter than the average weight of Enduro bikes.
ONE-FORTY 900 components
Fork
The RockShox Pike RC is included from the factory. It has a travel distance of 150mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Merida ONE-FORTY 900 bike has the Rock Shox Deluxe RL model installed, and has a travel of 140mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When leaving the production line, the ONE-FORTY 900 model has 27.5″ aluminum wheels. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The ONE-FORTY 900 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the ONE-FORTY 900. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
