Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 165mm -
Fork RockShox Yari RC
-
Groupset NX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ONE-SIXTY CFA
Suspension Fork
Rock Shox Yari RC, Air, 170mm suspension travel, Tapered
Rear Shock
Rock Shox Super Deluxe R
Drivetrain
Rear Derailleur
SRAM NX Eagle
Front Derailleur
N/A
Shift Levers
no / SRAM NX Eagle
Cassette
SRAM NX 1230 Eagle, 11-50 teeth, 12 speed
Crank
SRAM Descendant 6K Eagle, 32 teeth
Bottom Bracket
SRAM BB DUB press-fit MTB 92
Chain
SRAM NX Eagle
Chain Guide
MRP 1X V3
Pedals
None included
Wheels
Front Hub
Shimano Deore, 110x15mm width, 32 spoke holes, Centerlock / Shimano Deore, 148x12mm width, 32 spoke holes, Centerlock
Rear Hub
Shimano Deore, 110x15mm width, 32 spoke holes, Centerlock / Shimano Deore, 148x12mm width, 32 spoke holes, Centerlock
Rims
MERIDA Expert TR, 29mm inner width
Spokes
Double Butted Black stainless
Tires
Maxxis Minion DHR II, 27.5x2.4", fold, TR EXO 3C / Maxxis Minion DHR II, 27.5x2.4", fold, TR EXO Dual
Brakes
Brakes
Shimano MT-520
Brake Levers
Shimano MT-520
Cockpit
Stem
Merida Expert TR, 35mm diameter, 0° stem angle, 40mm length
Handlebar
MERIDA Expert TR, 780mm width, 20mm rise
Grips
Merida Expert EC
Headset
FSA NO.57/55E neck, 2191025712
Seat
Saddle
MERIDA Comp CC
Seatpost
MERIDA EXPERT TR, 30.9mm diameter, 0mm setback, S: 100mm travel seatpost - M/L/XL 125mm travel seatpost,
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.427 mm | 1.351 mm | 1.293 mm |
| Bottom Bracket Height | 349 mm | 349 mm | 349 mm |
| Front Center | 736 mm | 771 mm | 807 mm |
| Rake | 47 mm | 48 mm | 48 mm |
| Trail | 112 mm | 111 mm | 111 mm |
| Stack | 592 mm | 601 mm | 614 mm |
| Reach | 415 mm | 445 mm | 475 mm |
| Top Tube Length | 563 mm | 597 mm | 632 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 400 mm | 430 mm | 470 mm |
| Head Tube Angle | 65.3 ° | 65.3 ° | 65.3 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1166 mm | 1201 mm | 1237 mm |
| Bottom Bracket Drop | 6 mm | 6 mm | 6 mm |
| Standover Height | 717 mm | 736 mm | 766 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |

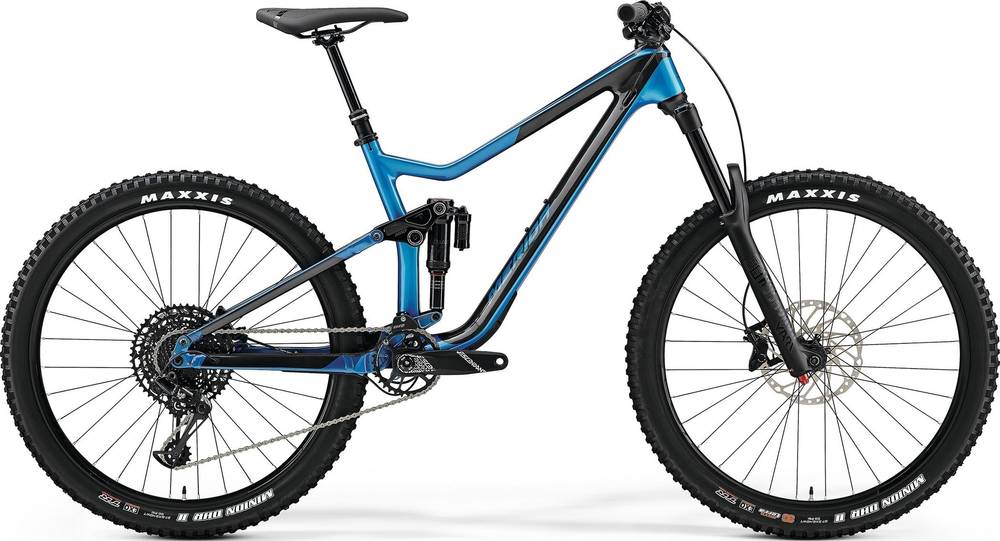

Model Overview
ONE-SIXTY 4000 is a Merida One Sixty model. 37 bikes variations carry this model name so far. You can get a glimpse at all models from 2019, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro bikes average price
Our math shows that the average cost of a dependable Enduro bike is 3599$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Enduro bikes
If we make a quick analysis of the average weight of an Enduro bike, we get 14.27 kg (31.46 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 14.32 kg (31.57 lbs), the ONE-SIXTY 4000 model is slightly heavier than average. In other words, this model is 0.35% heavier than the average Enduro bike.
Overview of components
Fork
The fork installed on this bike is the RockShox Yari RC model. The travel on this model is 170mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this bike is Rock Shox Super Deluxe R, with a travel distance of 165mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The ONE-SIXTY 4000 2019 bike is equipped with 27.5″ aluminum wheels when leaving the factory. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida ONE-SIXTY 4000 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Merida ONE-SIXTY 4000 bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Merida ONE-SIXTY 4000 includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
