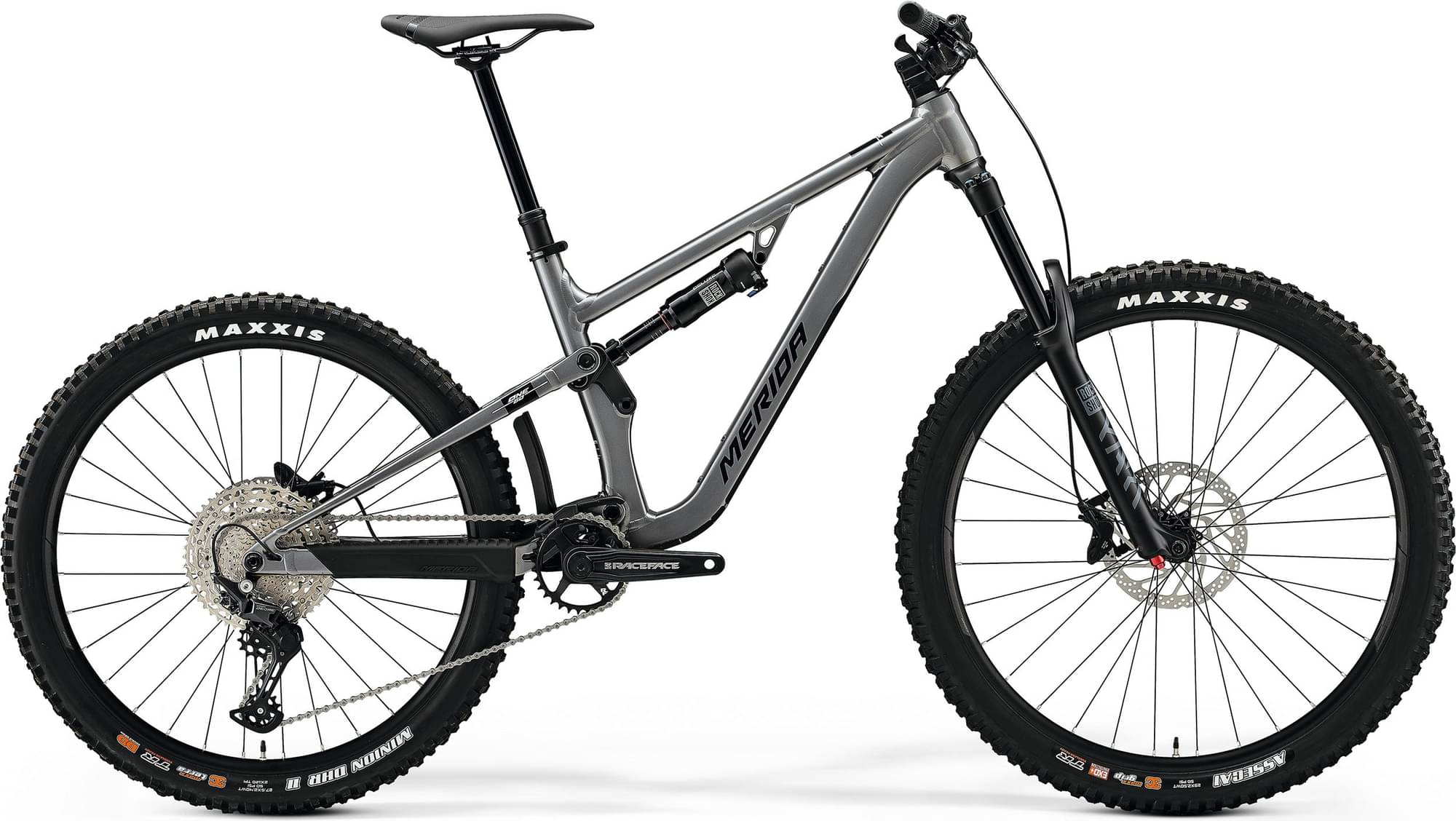

Merida ONE-SIXTY 500 2023
2023 Mountain
Estimate price |
3,680$
Weight | 16.68 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 170mm -
Travel Rear 171mm -
Fork RockShox Yari RC
-
Groupset Deore, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ONE-SIXTY LITE III, 171mm suspension travel mullet / 162mm suspension travel 29", material: aluminium, 29x2.5" max. wheelsize, 148x12mm axle standard, BSA bottom bracket standard
Suspension Fork
Rock Shox Yari RC, Air, 170mm suspension travel, Tapered, 42mm fork offset, 29.5x2.8" max. wheelsize
Rear Shock
Rock Shox Deluxe Select+, platform
Drivetrain
Rear Derailleur
Shimano Deore M6100 Shadow+, SGS
Shift Levers
Shimano SL -MT500-IL / Shimano Deore M5100
Cassette
Shimano Deore M5100, 11-51 teeth, 11 speed
Crank
Race Face Ride, 32 teeth, 170 mm for
Bottom Bracket
Race Face BSA 68/73 – 24mm
Chain
KMC X11
Chain Guide
MERIDA EXPERT TR ISCG05
Wheels
Front Hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 32 spoke holes, Centerlock
Rear Hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 32 spoke holes, Centerlock
Rims
MERIDA COMP TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), rear 27.5" up to Size M, rear 29" L & XL
Spokes
Double Butted Black stainless
Tires
Front: Maxxis Assegai, 29x2.5", fold, TR DD 3C MaxxGrip, Rear: Maxxis Assegai, 29x2.5", fold, TR DD 3C MaxxGrip
Brakes
Brakes
Shimano Deore M6120, 4 piston
Cockpit
Stem
MERIDA EXPERT eTRII, material: aluminium, 35mm diameter, 0° stem angle, 40 mm
Handlebar
MERIDA TEAM TR, material: aluminium, 780mm width, XS/S 18mm rise, M/L/XL 30mm rise
Headset
MERIDA 8158
Seat
Saddle
MERIDA COMP SL, V-mount
Seatpost
MERIDA EXPERT TR II, 34.9mm diameter, 0mm setback, XS: 125mm travel seatpost - S: 150mm travel seatpost - M/L/XL: 200mm travel seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XShort | Short | Mid | Long | XLong |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.482 mm | 1.391 mm | 1.309 mm | 1.255 mm | 1.215 mm |
| Front Center | 754 mm | 781 mm | 808 mm | 839 mm | 872 mm |
| Rake | 38 mm | 38 mm | 37 mm | 44 mm | 44 mm |
| Trail | 140 mm | 140 mm | 141 mm | 134 mm | 134 mm |
| Stack | 615 mm | 615 mm | 615 mm | 625 mm | 638 mm |
| Reach | 415 mm | 442 mm | 470 mm | 498 mm | 525 mm |
| Top Tube Length | 535 mm | 562 mm | 589 mm | 621 mm | 653 mm |
| Seat Tube Angle | 79 ° | 79 ° | 79 ° | 79 ° | 79 ° |
| Seat Tube Length | 400 mm | 410 mm | 425 mm | 445 mm | 470 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 95 mm | 95 mm | 95 mm | 105 mm | 120 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 437 mm | 437 mm |
| Wheelbase | 1188 mm | 1215 mm | 1242 mm | 1275 mm | 1308 mm |
| Bottom Bracket Drop | 7 mm | 7 mm | 7 mm | 27 mm | 27 mm |
| Standover Height | 735 mm | 740 mm | 743 mm | 740 mm | 735 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model
ONE-SIXTY 500 is part of the Merida One Sixty model. 37 bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Merida ONE-SIXTY 500 2023 is the cheapest bike model and costs 3345$. Merida ONE-SIXTY 10K 2023 is the most expensive one and costs 10948$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Enduro bikes average price
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2023 for 3345$. If we compare this with the average Enduro bike cost we notice that the price is 7.59% smaller.
Average weight for Enduro bikes
The average weight for Enduro bikes is 14.27 kg (31.46 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
much heavier than average, ONE-SIXTY 500 has a weight of 16.68 kg (36.77 lbs). In short, the average Enduro bike weight is 16.89% lower than this one.
ONE-SIXTY 500 components
Fork
Merida ONE-SIXTY 500 2023 bike is equipped with the RockShox Yari RC fork, and has 170mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this bike is Rock Shox Deluxe Select+, with a travel distance of 171mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When leaving the production line, the ONE-SIXTY 500 model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida ONE-SIXTY 500 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Dropper post
Merida ONE-SIXTY 500 includes a dropper post. Therefore, climbing or descending will be a breeze.
