Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 27.5" -
Travel Front 170mm -
Fork RockShox Yari RC
-
Groupset NX -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ONE-SIXTY CFA
Suspension Fork
Rock Shox Yari RC Air 170mm 27 boost TC
Rear Shock
Rock Shox Super Deluxe R
Drivetrain
Rear Derailleur
SRAM NX 11
Shift Levers
SRAM NX 11
Cassette
SRAM XG-1150-A1 10-42
Crank
SRAM NX XSYNC 30 STEEL
Chain
KMC X11-1
Wheels
Front Hub
FoBearing disc boost Torque / FoBearing disc boost XD
Rear Hub
FoBearing disc boost Torque / FoBearing disc boost XD
Rims
MERIDA Expert TR
Spokes
Black stainless
Tires
Maxxis Minion DHR II TR EXO 3C 2.4 / Minion DHR II TR EXO Dual 2.4
Brakes
Brakes
Shimano M447 203 disc / Shimano M447 180 disc
Brake Levers
Shimano M506
Cockpit
Handlebar
MERIDA EXPERT 35 760
Headset
Big Conoid A-bearing neck
Seat
Saddle
MERIDA Sport
Seatpost
MERIDA EXPERT Dropper 30.9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.427 mm | 1.351 mm | 1.293 mm |
| Bottom Bracket Height | 349 mm | 349 mm | 349 mm |
| Front Center | 736 mm | 771 mm | 807 mm |
| Rake | 47 mm | 48 mm | 48 mm |
| Trail | 112 mm | 111 mm | 111 mm |
| Stack | 592 mm | 601 mm | 614 mm |
| Reach | 415 mm | 445 mm | 475 mm |
| Top Tube Length | 563 mm | 597 mm | 632 mm |
| Seat Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Seat Tube Length | 400 mm | 430 mm | 470 mm |
| Head Tube Angle | 65.3 ° | 65.3 ° | 65.3 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1166 mm | 1201 mm | 1237 mm |
| Bottom Bracket Drop | 6 mm | 6 mm | 6 mm |
| Standover Height | 717 mm | 736 mm | 766 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

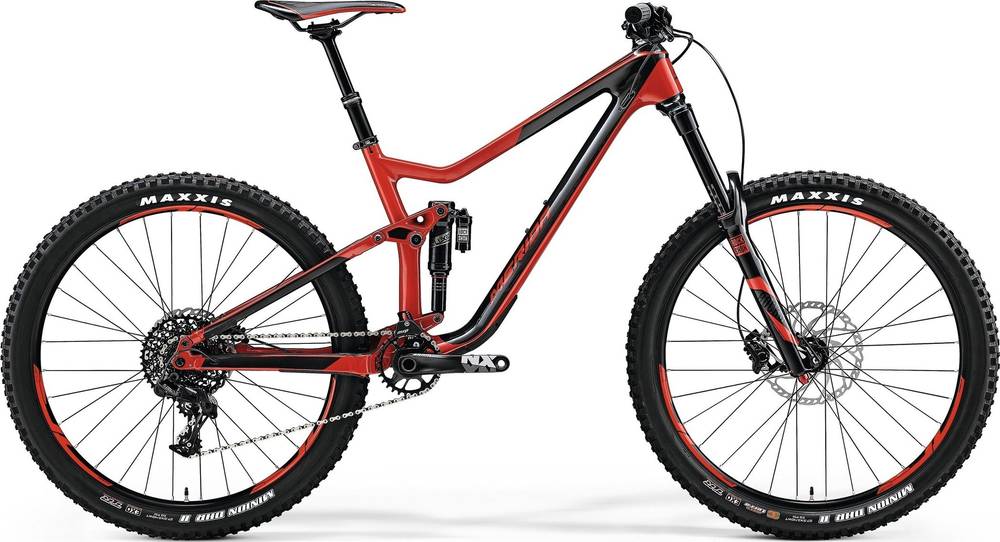

ONE-SIXTY 5000 completes the Merida One Sixty model. Merida released 37 bikes variations of this model so far. Take a sneak peek at all Merida One Sixty bikes models from 2017, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro bikes average price
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Enduro bikes
The average weight for Enduro bikes is 14.27 kg (31.46 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 13.91 kg (30.67 lbs), Merida bike is slightly lighter than average. To sum up, it’s 2.59% lighter than the average weight of Enduro bikes.
Overview of components
Fork
This bike has the RockShox Yari RC fork installed. The fork’s travel is 170mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The wheels on ONE-SIXTY 5000 are the 27.5″ aluminum type. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
A dropper post is included with the ONE-SIXTY 5000. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
