Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 27.5" -
Fork Manitou Mattoc Comp -
Groupset GX, X1 -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ONE-SIXTY
Suspension Fork
Manitou Mattoc Expert 27-160 taper 15
Rear Shock
Rock Shox Monarch R plus
Drivetrain
Rear Derailleur
SRAM GX 11
Shift Levers
SL TRIGGER X1 11SPD
Cassette
XG 1150 10-42
Crank
SRAM S1000 32T (BSA)
Bottom Bracket
BSA, 73mm, threaded
Chain
SRAM PCX1
Wheels
Front Hub
Formula Centerlock-15 / Formula Centerlock-12 11s
Rear Hub
Formula Centerlock-15 / Formula Centerlock-12 11s
Rims
SunRingle Helix TR27
Spokes
Black stainless
Tires
Schwalbe Hans Dampf 2.35 performance 27
Brakes
Brakes
Shimano M506 203 cen / Shimano M506 180 cen
Cockpit
Handlebar
MERIDA pro OS 760 R12
Headset
FSA NO.57/61BP
Seat
Saddle
MERIDA Pro
Seatpost
Hilo Ace + Aluminum Push remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.41 mm | 1.37 mm | 1.31 mm |
| Bottom Bracket Height | 348 mm | 348 mm | 348 mm | 348 mm |
| Front Center | 703 mm | 737 mm | 768 mm | 797 mm |
| Rake | 37 mm | 37 mm | 37 mm | 37 mm |
| Trail | 118 mm | 118 mm | 118 mm | 118 mm |
| Stack | 594 mm | 603 mm | 617 mm | 626 mm |
| Reach | 397 mm | 427 mm | 452 mm | 477 mm |
| Top Tube Length | 568 mm | 601 mm | 630 mm | 657 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 432 mm | 482 mm | 530 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 110 mm | 120 mm | 135 mm | 145 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1140 mm | 1174 mm | 1205 mm | 1234 mm |
| Bottom Bracket Drop | 7 mm | 7 mm | 7 mm | 7 mm |
| Standover Height | 696 mm | 704 mm | 740 mm | 775 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

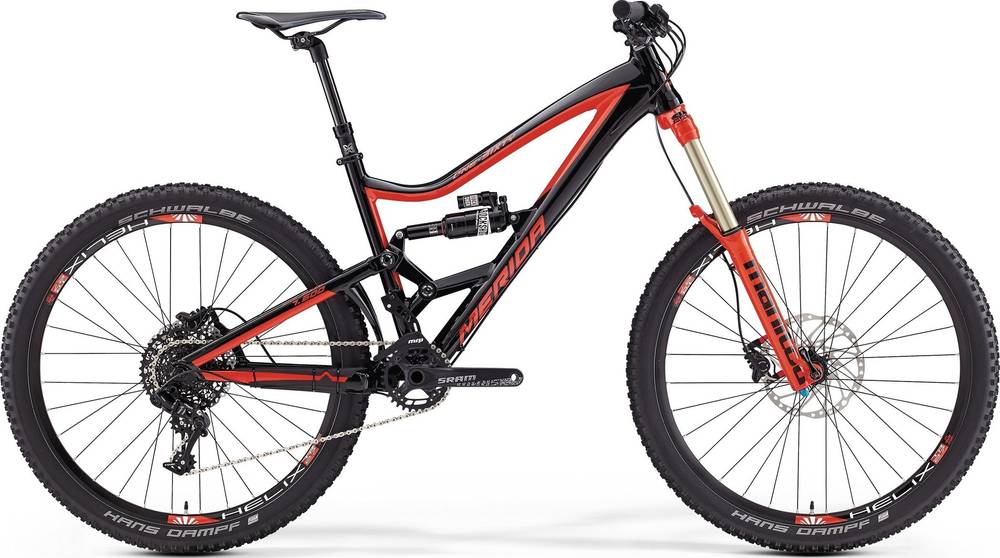

ONE-SIXTY 7. 600 belongs to the Merida One Sixty model. Merida released 37 bikes variations of this model so far. You can get a glimpse at all models from 2016, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro bikes
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Enduro bikes average weight
Enduro bikes weigh an average of 14.27 kg (31.46 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
ONE-SIXTY 7. 600 weighs 14.8 kg (32.63 lbs) and is slightly heavier than the average. In other words, this model is 3.71% heavier than the average Enduro bike.
ONE-SIXTY 7. 600 components
Fork
The ONE-SIXTY 7. 600 comes factory-installed with the Manitou Mattoc Comp fork. This has a travel range of mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The ONE-SIXTY 7. 600 2016 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida ONE-SIXTY 7. 600 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Merida ONE-SIXTY 7. 600 comes with a dropper post. Therefore, climbing or descending will be a breeze.
