Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 27.5" -
Travel Front 170mm -
Fork RockShox Yari RC
-
Groupset GX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ONE-SIXTY LITE
Suspension Fork
Rock Shox Yari RC, Air, 170mm suspension travel, Tapered
Rear Shock
Rock Shox Super Deluxe RCT, platform
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
no / SRAM GX Eagle
Cassette
SRAM XG 1275 Eagle, 10-50 teeth, 12 speed
Crank
SRAM Descendant 6K Eagle, 32 teeth
Chain
SRAM GX Eagle
Wheels
Front Hub
Joytech D791SB, 110x15mm width, 32 spoke holes, 6 bolt / Joytech D462SB, 148x12mm width, 32 spoke holes, 6 bolt, SRAM XD
Rear Hub
Joytech D791SB, 110x15mm width, 32 spoke holes, 6 bolt / Joytech D462SB, 148x12mm width, 32 spoke holes, 6 bolt, SRAM XD
Rims
MERIDA Expert TR, 29mm inner width
Spokes
Double Butted Black stainless
Tires
Maxxis Minion DHR II, 27.5x2.4", fold, TR EXO 3C / Maxxis Minion DHR II, 27.5x2.4", fold, TR EXO Dual
Brakes
Brakes
SRAM Code R
Brake Levers
SRAM Code R
Cockpit
Handlebar
MERIDA Expert TR, 780mm width, 20mm rise
Headset
FSA NO.57/55E neck, 2191025712
Seat
Saddle
Prologo Nago X20
Seatpost
KS LEV Integra, 30.9mm diameter, 0mm setback, S 125mm travel seatpost - M/L/XL 150mm travel seatpost,
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.451 mm | 1.361 mm | 1.293 mm | 1.259 mm |
| Bottom Bracket Height | 349 mm | 349 mm | 349 mm | 349 mm |
| Front Center | 727 mm | 759 mm | 793 mm | 817 mm |
| Rake | 42 mm | 42 mm | 36 mm | 42 mm |
| Trail | 117 mm | 117 mm | 124 mm | 117 mm |
| Stack | 595 mm | 599 mm | 613 mm | 617 mm |
| Reach | 410 mm | 440 mm | 474 mm | 490 mm |
| Top Tube Length | 559 mm | 591 mm | 630 mm | 648 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 400 mm | 430 mm | 470 mm | 490 mm |
| Head Tube Angle | 65.3 ° | 65.3 ° | 65.3 ° | 65.3 ° |
| Head Tube Length | 105 mm | 110 mm | 125 mm | 130 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1157 mm | 1189 mm | 1223 mm | 1247 mm |
| Bottom Bracket Drop | 6 mm | 6 mm | 6 mm | 6 mm |
| Standover Height | 713 mm | 734 mm | 757 mm | 765 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

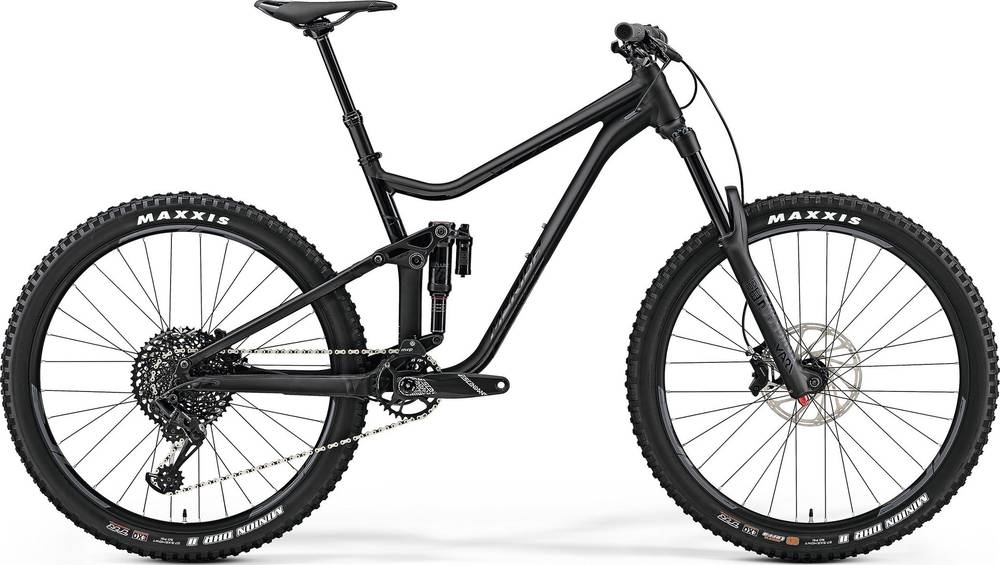

About this model
ONE-SIXTY 800 completes the Merida One Sixty model. Merida launched 37 bikes of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro bikes
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, even though the average price of an Enduro bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Enduro bikes
Enduro bikes have an average weight of 14.27 kg (31.46 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Merida ONE-SIXTY 800 it’s weighing 14.7 kg (32.41 lbs). At this weight, is slightly heavier than average. In other words, this model is 3.01% heavier than the average Enduro bike.
Overview of components
Fork
The RockShox Yari RC is included from the factory. It has a travel distance of 170mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When it comes to wheels, the ONE-SIXTY 800 bike is equipped with the 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida ONE-SIXTY 800 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Merida ONE-SIXTY 800 includes a dropper post. Therefore, climbing or descending will be a breeze.
