Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 120mm -
Fork RockShox Pike RC
-
Groupset X01 Eagle, Truvativ Descendant Carbon -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
RockShox Pike RC, Boost
Rear Shock
RockShox Monarch RT3
Drivetrain
Rear Derailleur
SRAM X01 Eagle
Front Derailleur
N/A
Shift Levers
SRAM X01 Eagle, trigger, 12-speed with SRAM MMX clamp
Cassette
SRAM X01 Eagle, 12-speed, 10-50 tooth
Crank
SRAM Descendant Eagle, carbon
Chain
SRAM X01 Eagle
Chain Guide
N/A
Pedals
None included
Wheels
Front Hub
DT Swiss Spline EX 1501 ONE 30, Boost
Rear Hub
DT Swiss Spline EX 1501 ONE 30, Boost
Rims
DT Swiss Spline EX 1501 ONE 30
Spokes
DT Competition, straightpull
Tires
Continental Mountain King II ProTection, 2.4"
Brakes
Brakes
SRAM Code RSC with 180mm rotors
Brake Levers
SRAM Code RSC
Cockpit
Stem
Merida Expert TR, 3d forged 6061 aluminium, oversize clamp
Handlebar
Merida Expert TR, double butted 6061 aluminium, 35mm rise, 760mm wide
Headset
Merida M2339
Seat
Saddle
Prologo Nago X20
Seatpost
RockShox Reverb Stealth
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.38 mm | 1.34 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm |
| Front Center | 683 mm | 703 mm | 728 mm |
| Rake | 40 mm | 40 mm | 39 mm |
| Trail | 100 mm | 100 mm | 102 mm |
| Stack | 587 mm | 591 mm | 601 mm |
| Reach | 410 mm | 428 mm | 450 mm |
| Top Tube Length | 573 mm | 593 mm | 618 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 415 mm | 450 mm | 500 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 105 mm | 110 mm | 120 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1120 mm | 1140 mm | 1165 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm |
| Standover Height | 708 mm | 730 mm | 754 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview

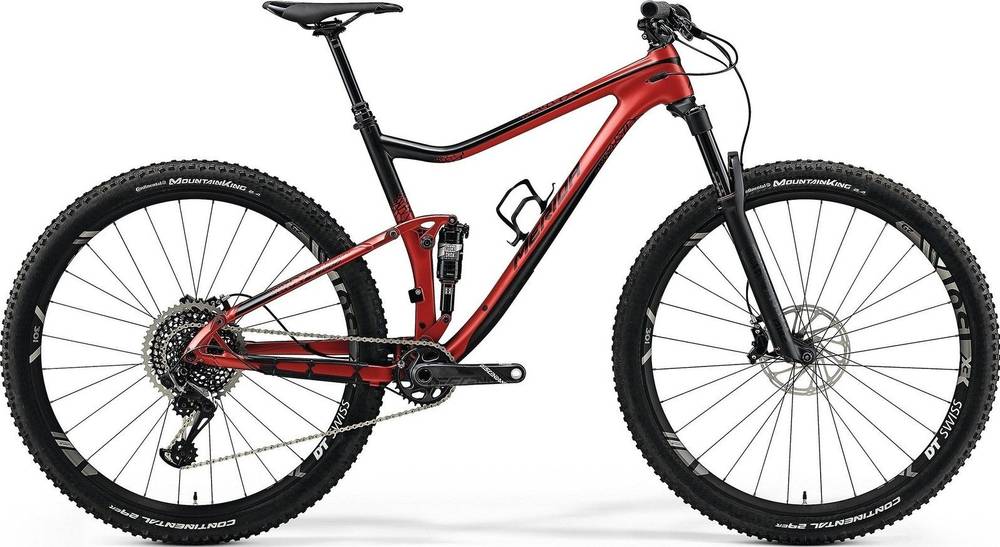

One-Twenty 27.5″ 8000 completes the Merida One Twenty model. Merida released 86 bikes variations of this model so far. You can easily view all of the Merida One Twenty bikes models from 2018, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Trail bikes average weight
If we make a quick analysis of the average weight of a Trail bike, we get 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
One-Twenty 27.5″ 8000 weighs 12.9 kg (28.44 lbs) and is slightly lighter than the average. In other words, this model is 0.62% lighter than the average Trail bike.
One-Twenty 27.5″ 8000 components
Fork
This bike has the RockShox Pike RC fork installed. The fork’s travel is 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Merida One-Twenty 27.5″ 8000 bike has the RockShox Monarch RT3 model installed, and has a travel of 120mm. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The One-Twenty 27.5″ 8000 2018 bike is equipped with 27.5″ aluminum wheels when leaving the factory. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida One-Twenty 27.5″ 8000 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Merida One-Twenty 27.5″ 8000 comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
