Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Travel Rear 120mm -
Fork SunTour AION
-
Groupset Deore, FSA -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
Suntour Aion, Boost, remote lock out
Rear Shock
SR Suntour Unair LOR8
Drivetrain
Rear Derailleur
Shimano Deore Shadow
Front Derailleur
Shimano Deore
Shift Levers
Shimano Deore, rapid fire, 20-speed
Cassette
Shimano CS-HG500, 10-speed, 11-42 tooth
Crank
FSA Gamma Drive
Chain
KMC X10-2
Chain Guide
N/A
Pedals
None included
Wheels
Front Hub
Front: Shimano Deore, quick release, centerlock, Rear: Shimano Deore, Boost, thru axle, centerlock
Rear Hub
Front: Shimano Deore, quick release, centerlock, Rear: Shimano Deore, Boost, thru axle, centerlock
Rims
Merida Big.Nine Comp CC
Spokes
Black stainless
Tires
Maxxis Forekaster, folding, 2.35"
Brakes
Brakes
Shimano M315 with 180mm front/160mm rear rotors
Brake Levers
Shimano M315
Cockpit
Stem
Merida Expert, 3d forged 6061 aluminium, oversize clamp, +/- 6° rise
Handlebar
Merida Expert CC, 740mm wide, 10mm rise
Headset
FSA No.57/61BP
Seat
Saddle
Merida Sport
Seatpost
Merida Expert Dropper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.39 mm | 1.34 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm |
| Front Center | 702 mm | 725 mm | 749 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Trail | 94 mm | 94 mm | 94 mm |
| Stack | 614 mm | 623 mm | 632 mm |
| Reach | 430 mm | 449 mm | 470 mm |
| Top Tube Length | 594 mm | 617 mm | 641 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm |
| Chainstay Length | 444 mm | 444 mm | 444 mm |
| Wheelbase | 1143 mm | 1166 mm | 1190 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm |
| Standover Height | 739 mm | 767 mm | 795 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |

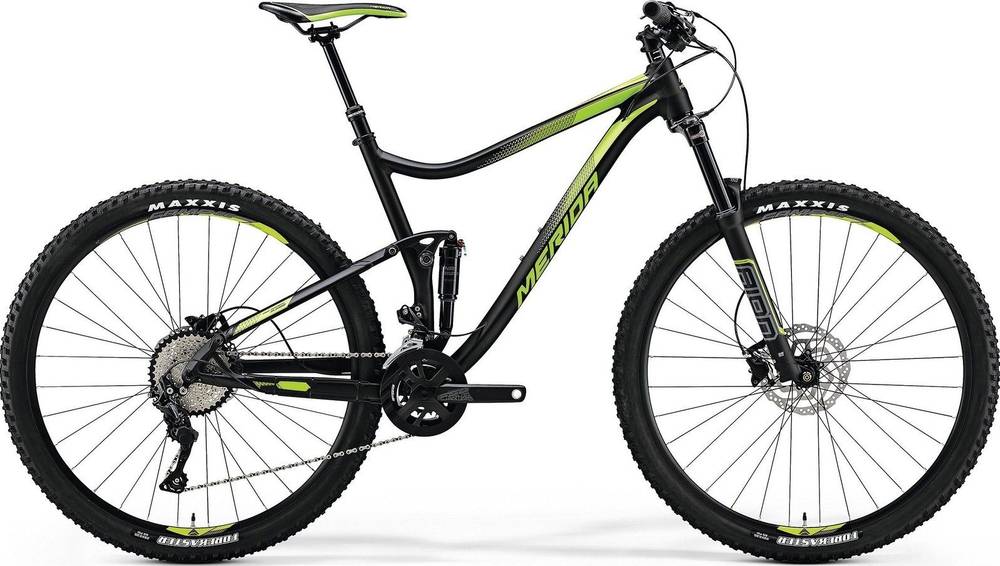

Model Overview
One-Twenty 29″ 500 completes the Merida One Twenty model. Merida released 86 bikes variations of this model so far. Take a sneak peek at all Merida One Twenty bikes models from 2018, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Trail bikes
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Merida One-Twenty 29″ 500 it’s weighing 14.4 kg (31.75 lbs). At this weight, is considerably heavier than average. In short, the average Trail bike weight is 10.94% lower than this one.
One-Twenty 29″ 500 components
Fork
The One-Twenty 29″ 500 comes factory-installed with the SunTour AION fork. This has a travel range of 130mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
As for the rear shock, this bike has the SR Suntour Unair LOR8 model, with a travel of 120mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When it comes to wheels, the One-Twenty 29″ 500 bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida One-Twenty 29″ 500 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 3 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
The Merida model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
