Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" / 29" -
Fork SunTour AION -
Groupset Deore, FSA -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
MD
168cm - 180cm
MD
168cm - 180cm
MD
168cm - 180cm
LG
178cm - 189cm
LG
178cm - 189cm
LG
178cm - 189cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ONE-TWENTY TFS
Suspension Fork
SR Aion RL-R 29 130 15QR remote
Rear Shock
SR Suntour Epicon Lorp
Drivetrain
Rear Derailleur
Shimano Deore SGS Shadow+
Front Derailleur
Shimano Deore double side swing
Shift Levers
Shimano Deore
Cassette
Shimano CS-HG50-10 11-36
Crank
FSA Gamma drive 38-24(27.5") / 36-22(29") CG
Chain
KMC X10
Wheels
Front Hub
FoBearing disc 15 / FoBearing disc 12
Rear Hub
FoBearing disc 15 / FoBearing disc 12
Rims
MERIDA BIG.NINE / BIG.SEVEN Comp CC
Spokes
Black stainless
Tires
Maxxis Forekaster 2.35 fold
Brakes
Brakes
Tektro MA hydraulic 180
Brake Levers
Tektro M285
Cockpit
Handlebar
MERIDA Expert OS 740 R12
Headset
Big Conoid semi
Seat
Saddle
MERIDA Sport
Seatpost
MERIDA comp SB12 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD | MD | MD | LG | LG | LG | LG | XL |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.38 mm | 1.38 mm | 1.43 mm | 1.43 mm | 1.39 mm | 1.39 mm | 1.34 mm | 1.34 mm | 1.35 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 349 mm | 315 mm | 334 mm | 315 mm | 334 mm | 330 mm | 349 mm | 334 mm |
| Front Center | 683 mm | 703 mm | 703 mm | 702 mm | 702 mm | 725 mm | 725 mm | 728 mm | 728 mm | 749 mm |
| Rake | 40 mm | 40 mm | 40 mm | 46 mm | 46 mm | 46 mm | 46 mm | 39 mm | 39 mm | 46 mm |
| Trail | 100 mm | 100 mm | 108 mm | 87 mm | 94 mm | 87 mm | 94 mm | 102 mm | 109 mm | 94 mm |
| Stack | 587 mm | 591 mm | 591 mm | 613 mm | 613 mm | 622 mm | 622 mm | 601 mm | 601 mm | 631 mm |
| Reach | 410 mm | 428 mm | 428 mm | 429 mm | 429 mm | 448 mm | 448 mm | 450 mm | 450 mm | 469 mm |
| Top Tube Length | 573 mm | 593 mm | 593 mm | 593 mm | 593 mm | 616 mm | 616 mm | 618 mm | 618 mm | 640 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 75 ° | 75 ° | 75 ° | 75 ° | 74.5 ° | 74.5 ° | 75 ° |
| Seat Tube Length | 415 mm | 450 mm | 450 mm | 450 mm | 450 mm | 500 mm | 500 mm | 500 mm | 500 mm | 551 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 69 ° | 69 ° | 69 ° | 69 ° | 68 ° | 68 ° | 69 ° |
| Head Tube Length | 105 mm | 110 mm | 110 mm | 95 mm | 95 mm | 105 mm | 105 mm | 120 mm | 120 mm | 115 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 443 mm | 443 mm | 443 mm | 443 mm | 438 mm | 438 mm | 443 mm |
| Wheelbase | 1120 mm | 1140 mm | 1140 mm | 1142 mm | 1142 mm | 1165 mm | 1165 mm | 1165 mm | 1165 mm | 1189 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 40 mm | 40 mm | 40 mm | 40 mm | 25 mm | 25 mm | 40 mm |
| Standover Height | 705 mm | 730 mm | 730 mm | 738 mm | 738 mm | 766 mm | 766 mm | 754 mm | 754 mm | 794 mm |
| Wheels | 27" | 27" | 29" | 27" | 29" | 27" | 29" | 27" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 168 cm | 168 cm | 168 cm | 178 cm | 178 cm | 178 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 180 cm | 180 cm | 180 cm | 189 cm | 189 cm | 189 cm | 189 cm | 199 cm |
Model Overview

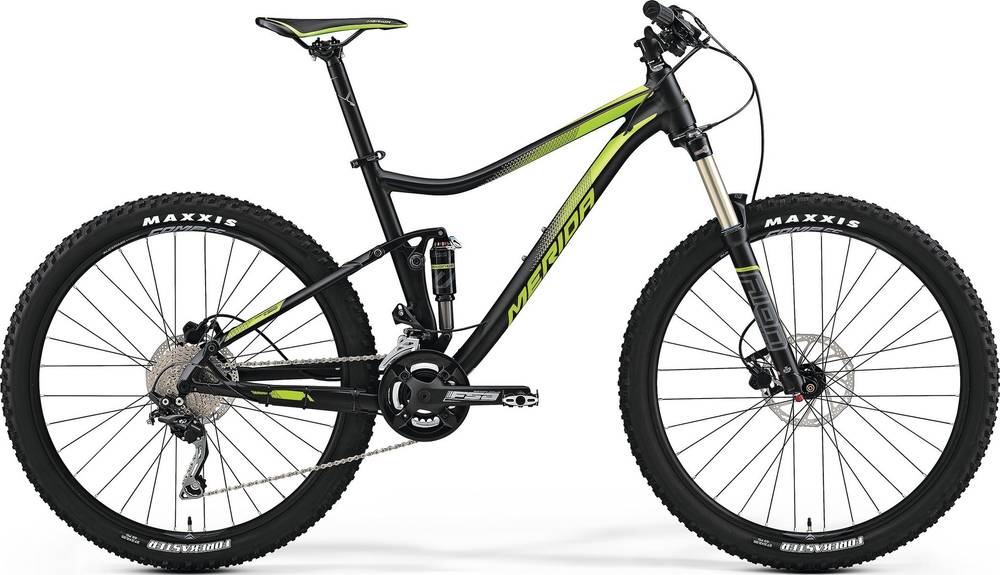

ONE-TWENTY 500 completes the Merida One Twenty model. There are 86 bikes that carry this model name. You can easily view all of the Merida One Twenty bikes models from 2017, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Trail bikes average weight
Trail bikes have an average weight of 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 14.13 kg (31.15 lbs), the ONE-TWENTY 500 model is a bit heavier than average. To sum up, it’s 8.86% heavier than the average weight of Trail bikes.
ONE-TWENTY 500 components
Fork
Merida ONE-TWENTY 500 2017 bike is equipped with the SunTour AION fork, and has mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The ONE-TWENTY 500 2017 bike is equipped with 27.5″ aluminum wheels when leaving the factory. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The ONE-TWENTY 500 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 10 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
