Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 27.5" / 29" -
Travel Front 130mm -
Travel Rear 120mm -
Fork RockShox Sektor
-
Groupset NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ONE-TWENTY LITE
Suspension Fork
Rock Shox Sektor RL, Air 130mm suspension travel, Tapered
Rear Shock
Rock Shox Deluxe RL, lockout
Drivetrain
Rear Derailleur
SRAM NX Eagle
Front Derailleur
no
Shift Levers
no / SRAM NX Eagle
Cassette
SRAM NX 1230 Eagle, 11-50 teeth, 12 speed
Crank
SRAM NX Eagle, 32 teeth
Bottom Bracket
SRAM BB DUB press-fit MTB 92
Chain
SRAM NX Eagle
Chain Guide
N/A
Pedals
None included
Wheels
Front Hub
Shimano MT400-B, 110x15mm width, 32 spoke holes, Centerlock / Shimano MT400-B, 148x12mm width, 32 spoke holes, Centerlock
Rear Hub
Shimano MT400-B, 110x15mm width, 32 spoke holes, Centerlock / Shimano MT400-B, 148x12mm width, 32 spoke holes, Centerlock
Rims
MERIDA Expert TR, 29mm inner width
Spokes
Black stainless
Tires
Maxxis Forekaster, 29x2.35" / 27.5x2.35", fold, TR EXO Dual
Brakes
Brakes
Shimano MT-500
Brake Levers
Shimano MT-501
Cockpit
Stem
Merida Expert TR, 35mm diameter, 0° stem angle, 50mm length
Handlebar
MERIDA Expert TR, 760mm width, 20mm rise
Grips
Merida Comp EC
Headset
FSA NO.47/50, 2191027082
Seat
Saddle
MERIDA Comp CC
Seatpost
MERIDA EXPERT TR, 30.9mm diameter, 0mm setback, S: 100mm travel seatpost - M/L/XL 125mm travel seatpost,
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM | MD | MD | SM/MD | MD | MD | LG | XL |
|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.463 mm | 1.463 mm | 1.396 mm | 1.396 mm | mm | 1.396 mm | 1.396 mm | 1.355 mm | 1.317 mm |
| Bottom Bracket Height | 315 mm | 315 mm | 315 mm | 315 mm | mm | 315 mm | 315 mm | 315 mm | 315 mm |
| Front Center | 709 mm | 709 mm | 729 mm | 729 mm | mm | 729 mm | 729 mm | 753 mm | 776 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm | mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 93 mm | 93 mm | 93 mm | 93 mm | mm | 93 mm | 93 mm | 93 mm | 93 mm |
| Stack | 607.1 mm | 607.1 mm | 607.1 mm | 607.1 mm | mm | 607.1 mm | 607.1 mm | 616.3 mm | 625.5 mm |
| Reach | 415 mm | 415 mm | 435 mm | 435 mm | mm | 435 mm | 435 mm | 455 mm | 475 mm |
| Top Tube Length | 572 mm | 572 mm | 592 mm | 592 mm | mm | 592 mm | 592 mm | mm | 636.8 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° | ° | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 400 mm | 400 mm | 440 mm | 440 mm | mm | 440 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 67.3 ° | 67.3 ° | 67.3 ° | 67.3 ° | ° | 67.3 ° | 67.3 ° | 67.3 ° | 67.3 ° |
| Head Tube Length | 95 mm | 95 mm | 95 mm | 95 mm | mm | 95 mm | 95 mm | 105 mm | 115 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1140 mm | 1140 mm | 1160 mm | 1160 mm | mm | 1160 mm | 1160 mm | 1184 mm | 1208 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm | mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 707 mm | 707 mm | 729 mm | 729 mm | mm | 729 mm | 729 mm | 759 mm | 786 mm |
| Wheels | 27" | 29" | 27" | 29" | 27" | 27" | 29" | 29" | 29" |
About this model

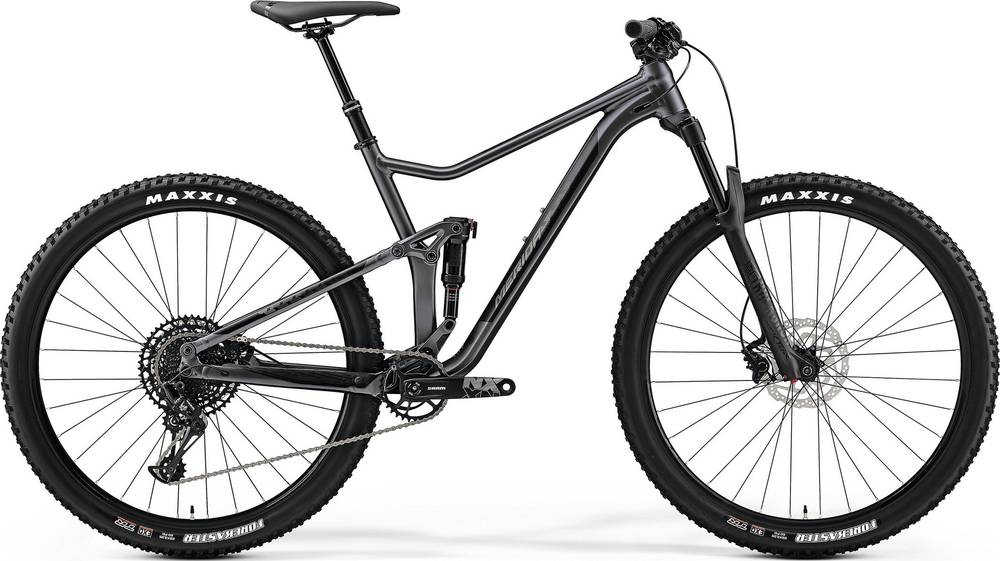

ONE-TWENTY 600 belongs to the Merida One Twenty model. Merida released 86 bikes variations of this model so far. You can get a glimpse at all models from 2019, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Trail bikes average weight
Trail bikes weigh an average of 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
ONE-TWENTY 600 weighs 14.41 kg (31.77 lbs) and is considerably heavier than the average. In short, the average Trail bike weight is 11.02% lower than this one.
Overview of components
Fork
Merida ONE-TWENTY 600 2019 bike is equipped with the RockShox Sektor fork, and has 130mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this bike has the Rock Shox Deluxe RL model, with a travel of 120mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The wheels on ONE-TWENTY 600 are the 27.5″ aluminum type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The ONE-TWENTY 600 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Dropper post
A dropper post is included with the ONE-TWENTY 600. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
