Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Fork SunTour EPIXON -
Groupset Deore -
Suspension Full -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ONE-TWENTY TFS
Suspension Fork
SR Epixon XC RL-R 27.5 120 remote
Rear Shock
SR Suntour Epicon Lorp
Drivetrain
Rear Derailleur
Shimano Deore Shadow+
Front Derailleur
Shimano Deore triple
Shift Levers
Shimano Deore
Cassette
Shimano CS-HG50-10 11-36
Crank
Shimano M523 octa 40-30-22
Bottom Bracket
Shimano octalink
Chain
KMC Z10-10s
Wheels
Front Hub
Bearing Disc / Bearing disc-12
Rear Hub
Bearing Disc / Bearing disc-12
Rims
MERIDA Big 7 comp D
Tires
MERIDA lite 27 2.25
Brakes
Brakes
Tektro Auriga hydraulic 180
Brake Levers
attached
Cockpit
Handlebar
MERIDA pro OS 740 R12
Headset
EGG steel neck
Seat
Saddle
MERIDA Sport 1
Seatpost
MERIDA comp SB12 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.34 mm | 1.3 mm | 1.26 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm |
| Front Center | 681 mm | 702 mm | 728 mm | 753 mm |
| Rake | 39 mm | 40 mm | 40 mm | 40 mm |
| Trail | 102 mm | 100 mm | 100 mm | 100 mm |
| Stack | 571 mm | 580 mm | 589 mm | 599 mm |
| Reach | 415 mm | 432 mm | 454 mm | 475 mm |
| Top Tube Length | 573 mm | 593 mm | 618 mm | 643 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 415 mm | 460 mm | 510 mm | 560 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1118 mm | 1139 mm | 1165 mm | 1190 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 703 mm | 727 mm | 751 mm | 779 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

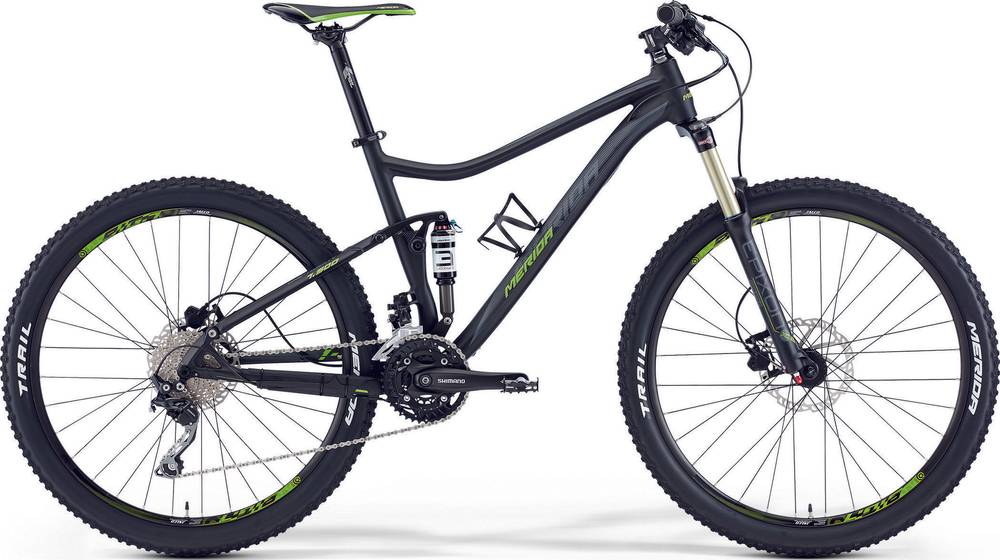

Model Overview
One-Twenty 7. 500 belongs to the Merida One Twenty model. 86 bikes variations carry this model name so far. Check out the entire range from 2015 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
One-Twenty 7. 500 components
Fork
The SunTour EPIXON is included from the factory. It has a travel distance of mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When it comes to wheels, the One-Twenty 7. 500 bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The One-Twenty 7. 500 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
