Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Groupset SLX, Deore -
Suspension Full -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ONE-TWENTY TFS
Suspension Fork
Rock Shox 30Gold TK27 120 poploc
Rear Shock
Rock Shox Monarch R
Drivetrain
Rear Derailleur
Shimano SLX Shadow+
Front Derailleur
Shimano Deore triple
Shift Levers
Shimano Deore-i
Cassette
Shimano CS-HG50-10 11-36
Crank
Shimano M612 40-30-22
Bottom Bracket
attached
Chain
KMC Z10-10s
Wheels
Front Hub
Formula Centerlock / Formula Centerlock-12
Rear Hub
Formula Centerlock / Formula Centerlock-12
Rims
MERIDA Big 7 comp D
Tires
MERIDA lite 27 2.25 KV
Brakes
Brakes
Shimano M506 180 cen
Brake Levers
attached
Cockpit
Handlebar
MERIDA pro OS 740 R12
Headset
EGG steel neck
Seat
Saddle
MERIDA Sport 1
Seatpost
MERIDA pro H SB0 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.34 mm | 1.3 mm | 1.26 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm |
| Front Center | 681 mm | 702 mm | 728 mm | 753 mm |
| Rake | 39 mm | 40 mm | 40 mm | 40 mm |
| Trail | 102 mm | 100 mm | 100 mm | 100 mm |
| Stack | 571 mm | 580 mm | 589 mm | 599 mm |
| Reach | 415 mm | 432 mm | 454 mm | 475 mm |
| Top Tube Length | 573 mm | 593 mm | 618 mm | 643 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 415 mm | 460 mm | 510 mm | 560 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1118 mm | 1139 mm | 1165 mm | 1190 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 703 mm | 727 mm | 751 mm | 779 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

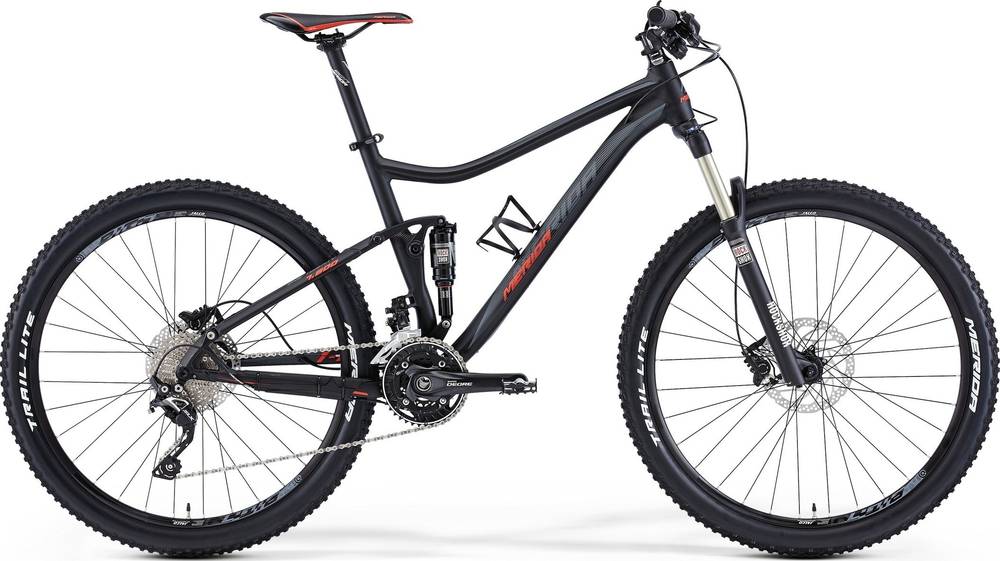

One-Twenty 7. 600 is part of the Merida One Twenty model. There are 86 bikes that carry this model name. You can get a glimpse at all models from 2015, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Wheels size
The One-Twenty 7. 600 2015 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
One-Twenty 7. 600 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
