Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Groupset SLX, Deore -
Suspension Full -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ONE-TWENTY TFS
Suspension Fork
Rock Shox 30Gold TK27 120 poploc
Rear Shock
Rock Shox Monarch R
Drivetrain
Rear Derailleur
Shimano SLX Shadow+
Front Derailleur
Shimano Deore triple
Shift Levers
Shimano Deore
Cassette
Shimano CS-HG50-10 11-36
Crank
Shimano M612 40-30-22
Bottom Bracket
attached
Chain
KMC Z10-10s
Wheels
Front Hub
Formula Centerlock / Formula Centerlock-12
Rear Hub
Formula Centerlock / Formula Centerlock-12
Rims
MERIDA Big 7 comp D
Tires
MERIDA lite 27 2.25 KV
Brakes
Brakes
Shimano M506 180 cen
Brake Levers
attached
Cockpit
Handlebar
MERIDA pro OS 700 R12 lady
Headset
EGG steel neck
Seat
Saddle
Juliet Sport
Seatpost
MERIDA pro H SB0 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.34 mm | 1.3 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm |
| Front Center | 681 mm | 702 mm | 728 mm |
| Rake | 39 mm | 40 mm | 40 mm |
| Trail | 102 mm | 100 mm | 100 mm |
| Stack | 571 mm | 580 mm | 589 mm |
| Reach | 415 mm | 432 mm | 454 mm |
| Top Tube Length | 573 mm | 593 mm | 618 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 415 mm | 460 mm | 510 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1118 mm | 1139 mm | 1165 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm |
| Standover Height | 703 mm | 727 mm | 751 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview

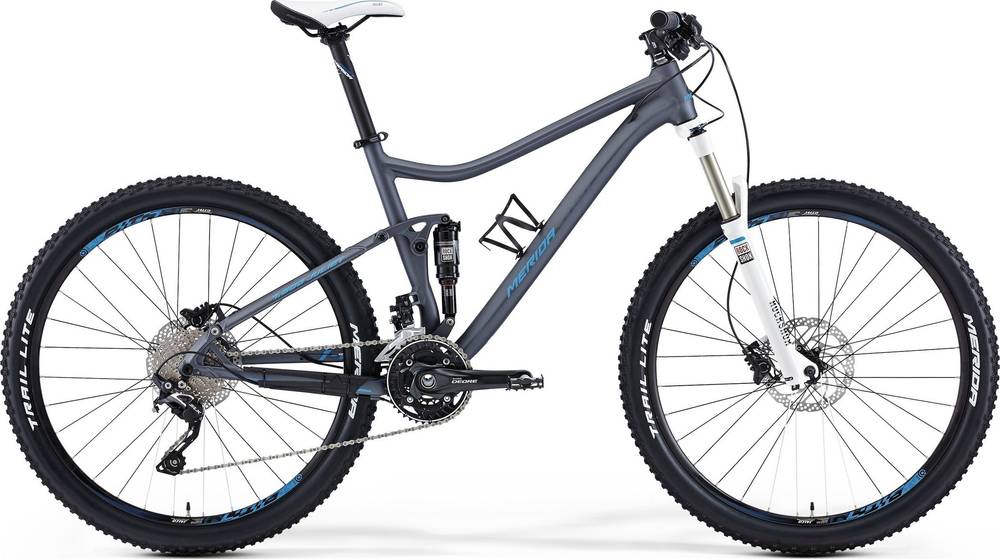

One-Twenty 7. 600 Juliet belongs to the Merida One Twenty model. There are 86 bikes that carry this model name. You can get a glimpse at all models from 2015, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Overview of components
Wheels size
When leaving the production line, the One-Twenty 7. 600 Juliet model has 27.5″ aluminum wheels. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
