Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 27.5" -
Travel Front 130mm -
Fork Fox Factory Float 32
-
Groupset XT -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ONE-TWENTY LITE
Suspension Fork
Fox 32 Float 650B CTD O/C remote-ready (1.5T, 15QR)- factory 130
Rear Shock
Fox Flat CTD remote-factory
Drivetrain
Rear Derailleur
Shimano XT Shadow+
Front Derailleur
Shimano XT double
Shift Levers
Shimano XT-i
Cassette
Shimano CS-HG81-10 11-36
Crank
Shimano XT 38-24
Bottom Bracket
attached.
Chain
KMC Z10-10s
Wheels
Front Hub
Shimano XT 15 / Shimano XT 12 cen
Rear Hub
Shimano XT 15 / Shimano XT 12 cen
Rims
DT Swiss 533D-27
Tires
Schwalbe Nobi Nic 2.25 PSC
Brakes
Brakes
Shimano XT-Fin 180 cen
Brake Levers
attached
Cockpit
Handlebar
FSA Afterburner Riser 740 R15
Headset
Big Conoid A-bearing neck
Seat
Saddle
Prologo Nago Evo X10 STN
Seatpost
Rock Shox Stealth Reverb 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.38 mm | 1.34 mm | 1.3 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm |
| Front Center | 683 mm | 703 mm | 728 mm | 754 mm |
| Rake | 40 mm | 40 mm | 39 mm | 40 mm |
| Trail | 100 mm | 100 mm | 102 mm | 100 mm |
| Stack | 587 mm | 591 mm | 601 mm | 610 mm |
| Reach | 410 mm | 428 mm | 450 mm | 471 mm |
| Top Tube Length | 573 mm | 593 mm | 618 mm | 643 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 415 mm | 460 mm | 510 mm | 560 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 105 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1120 mm | 1140 mm | 1165 mm | 1191 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 705 mm | 730 mm | 754 mm | 782 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

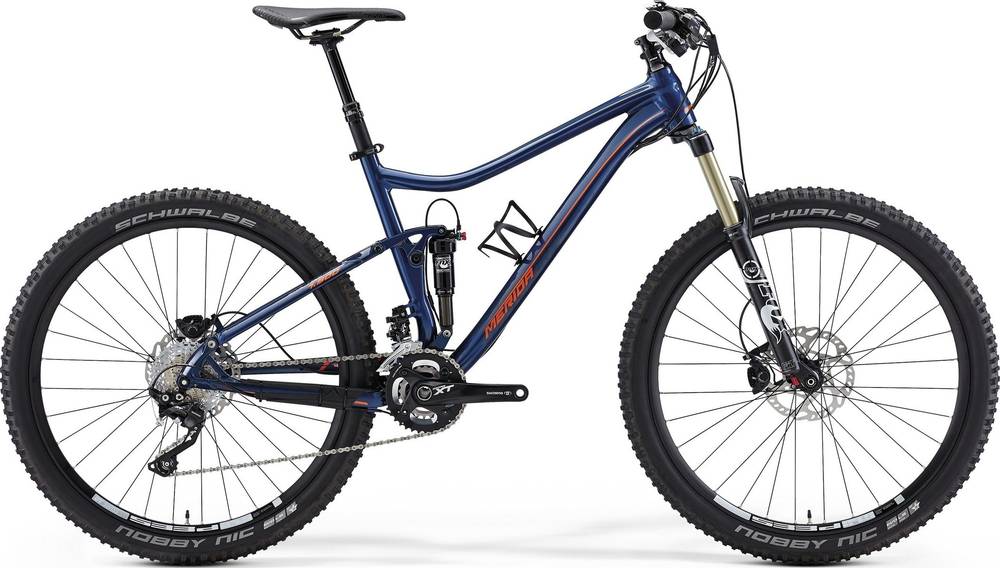

One-Twenty 7. 900 is a Merida One Twenty model. 86 bikes variations carry this model name so far. You can easily view all of the Merida One Twenty bikes models from 2015, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork
The fork installed on this bike is the Fox Factory Float 32 model. The travel on this model is 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The wheels on One-Twenty 7. 900 are the 27.5″ aluminum type. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
A dropper post is included with the One-Twenty 7. 900. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
