Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 27.5" / 29" -
Travel Front 130mm -
Fork RockShox Revelation RC
-
Groupset GX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
MD
168cm - 180cm
MD
168cm - 180cm
MD
168cm - 180cm
LG
178cm - 189cm
LG
178cm - 189cm
LG
178cm - 189cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ONE-TWENTY LITE
Suspension Fork
Rock Shox Revelation RC air fork with tapered steered, 130mm travel and 15mm bolt through axle, Boost
Rear Shock
Fox Performance Float
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle trigger 12 speed with I-Spec II adapter
Cassette
SRAM XG 1275 Eagle, 12 speed, 10-50 teeth
Crank
SRAM Descendant 6K Eagle 32 teeth
Chain
SRAM GX Eagle
Wheels
Front Hub
Sealed bearing, Boost standard, 15mm front and 12mm rear bolt through axles, centerlock
Rear Hub
Sealed bearing, Boost standard, 15mm front and 12mm rear bolt through axles, centerlock
Rims
MERIDA Expert TR, 29mm inner width tubeless ready
Spokes
Double Butted Black stainless
Tires
Continental Mountain King II 2.4" ProTection
Brakes
Brakes
Shimano SLX hydraulic disc with cooling fins, 180mm rotors
Brake Levers
Shimano SLX
Cockpit
Handlebar
MERIDA Expert TR double butted 6061 aluminium, 35mm rise, 760mm wide
Headset
MERIDA M2339
Seat
Saddle
Prologo Nago X20
Seatpost
K-Shock LEV Integra dropper 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD | MD | MD | LG | LG | LG | LG | XL |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.38 mm | 1.38 mm | 1.43 mm | 1.43 mm | 1.39 mm | 1.39 mm | 1.34 mm | 1.34 mm | 1.35 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 349 mm | 315 mm | 334 mm | 315 mm | 334 mm | 330 mm | 349 mm | 334 mm |
| Front Center | 683 mm | 703 mm | 703 mm | 702 mm | 702 mm | 725 mm | 725 mm | 728 mm | 728 mm | 749 mm |
| Rake | 40 mm | 40 mm | 40 mm | 46 mm | 46 mm | 46 mm | 46 mm | 39 mm | 39 mm | 46 mm |
| Trail | 100 mm | 100 mm | 108 mm | 87 mm | 94 mm | 87 mm | 94 mm | 102 mm | 109 mm | 94 mm |
| Stack | 587 mm | 591 mm | 591 mm | 613 mm | 613 mm | 622 mm | 622 mm | 601 mm | 601 mm | 631 mm |
| Reach | 410 mm | 428 mm | 428 mm | 429 mm | 429 mm | 448 mm | 448 mm | 450 mm | 450 mm | 469 mm |
| Top Tube Length | 573 mm | 593 mm | 593 mm | 593 mm | 593 mm | 616 mm | 616 mm | 618 mm | 618 mm | 640 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 75 ° | 75 ° | 75 ° | 75 ° | 74.5 ° | 74.5 ° | 75 ° |
| Seat Tube Length | 415 mm | 450 mm | 450 mm | 450 mm | 450 mm | 500 mm | 500 mm | 500 mm | 500 mm | 550 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 69 ° | 69 ° | 69 ° | 69 ° | 68 ° | 68 ° | 69 ° |
| Head Tube Length | 105 mm | 110 mm | 110 mm | 95 mm | 95 mm | 105 mm | 105 mm | 120 mm | 120 mm | 115 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 443 mm | 443 mm | 443 mm | 443 mm | 438 mm | 438 mm | 443 mm |
| Wheelbase | 1120 mm | 1140 mm | 1140 mm | 1142 mm | 1142 mm | 1165 mm | 1165 mm | 1165 mm | 1165 mm | 1189 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 40 mm | 40 mm | 40 mm | 40 mm | 25 mm | 25 mm | 40 mm |
| Standover Height | 705 mm | 730 mm | 730 mm | 738 mm | 738 mm | 766 mm | 766 mm | 754 mm | 754 mm | 794 mm |
| Wheels | 27" | 27" | 29" | 27" | 29" | 27" | 29" | 27" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 168 cm | 168 cm | 168 cm | 178 cm | 178 cm | 178 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 180 cm | 180 cm | 180 cm | 189 cm | 189 cm | 189 cm | 189 cm | 199 cm |

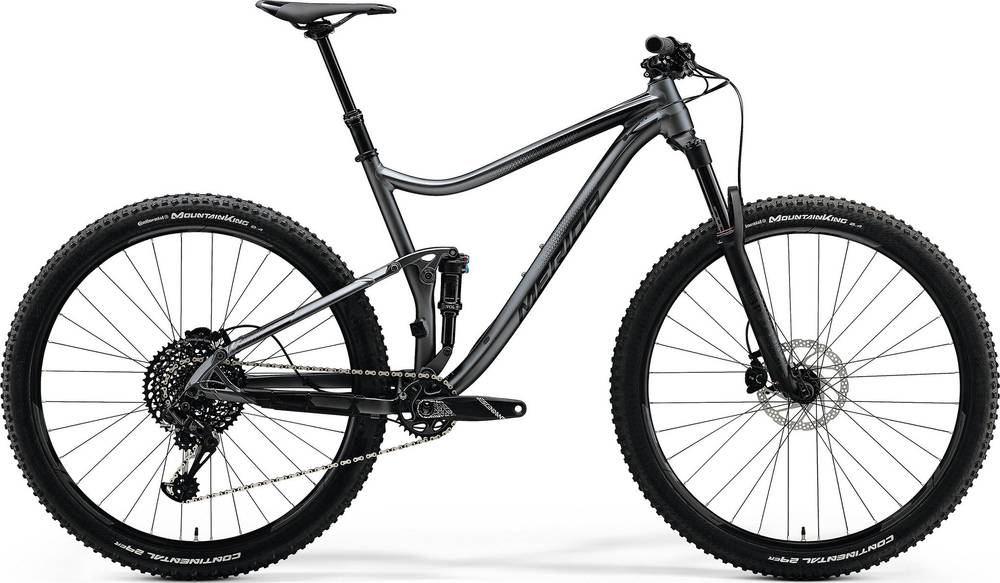

Model Overview
ONE-TWENTY 800 completes the Merida One Twenty model. Merida launched 86 bikes of this model so far. You can easily view all of the Merida One Twenty bikes models from 2018, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Trail bikes average weight
If we make a quick analysis of the average weight of a Trail bike, we get 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 13.8 kg (30.42 lbs), the ONE-TWENTY 800 model is a bit heavier than average. In short, the average Trail bike weight is 6.32% lower than this one.
Overview of components
Fork
The fork installed on this bike is the RockShox Revelation RC model. The travel on this model is 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The wheels on ONE-TWENTY 800 are the 27.5″ aluminum type. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 10 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Merida model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
