Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 27.5" / 29" -
Travel Front 130mm -
Travel Rear 120mm -
Fork RockShox Revelation RC
-
Groupset GX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
SM
158cm - 171cm
MD
168cm - 180cm
MD
168cm - 180cm
MD
168cm - 180cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ONE-TWENTY LITE
Suspension Fork
Rock Shox Revelation RC, Air, 130mm suspension travel, Tapered
Rear Shock
Rock Shox Deluxe RL, lockout
Drivetrain
Rear Derailleur
SRAM GX Eagle
Front Derailleur
Low direct mount (none included)
Shift Levers
no / SRAM GX Eagle
Cassette
SRAM XG 1275 Eagle, 10-50 teeth, 12 speed
Crank
SRAM Descendant 6K Eagle, 32 teeth
Bottom Bracket
SRAM BB DUB press-fit MTB 92
Chain
SRAM GX Eagle
Chain Guide
N/A
Pedals
None included
Wheels
Front Hub
Joytech D791SB, 110x15mm width, 32 spoke holes, 6 bolt / Joytech D462SB, 148x12mm width, 32 spoke holes, 6 bolt, SRAM XD
Rear Hub
Joytech D791SB, 110x15mm width, 32 spoke holes, 6 bolt / Joytech D462SB, 148x12mm width, 32 spoke holes, 6 bolt, SRAM XD
Rims
MERIDA Expert TR, 29mm inner width
Spokes
Double Butted Black stainless
Tires
Maxxis Minion DHR II, 29x2.4", fold, TR EXO 3C / Maxxis Forekaster, 29x2.35", fold, TR EXO Dual
Brakes
Brakes
Shimano MT-500
Brake Levers
Shimano MT-501
Cockpit
Stem
Merida Expert TR, 35mm diameter, 0° stem angle, 50mm length
Handlebar
MERIDA Expert TR, 760mm width, 20mm rise
Grips
Merida Expert EC
Headset
FSA NO.47/50, 2191027082
Seat
Saddle
MERIDA Expert CC
Seatpost
KS LEV Integra, 30.9mm diameter, 0mm setback, S 125mm travel seatpost - M/L/XL 150mm travel seatpost,
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM | MD | MD | SM/MD | MD | MD | LG | XL |
|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.463 mm | 1.463 mm | 1.396 mm | 1.396 mm | mm | 1.396 mm | 1.396 mm | 1.355 mm | 1.317 mm |
| Bottom Bracket Height | 315 mm | 315 mm | 315 mm | 315 mm | mm | 315 mm | 315 mm | 315 mm | 315 mm |
| Front Center | 709 mm | 709 mm | 729 mm | 729 mm | mm | 729 mm | 729 mm | 753 mm | 776 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm | mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 93 mm | 93 mm | 93 mm | 93 mm | mm | 93 mm | 93 mm | 93 mm | 93 mm |
| Stack | 607.1 mm | 607.1 mm | 607.1 mm | 607.1 mm | mm | 607.1 mm | 607.1 mm | 616.3 mm | 625.5 mm |
| Reach | 415 mm | 415 mm | 435 mm | 435 mm | mm | 435 mm | 435 mm | 455 mm | 475 mm |
| Top Tube Length | 572 mm | 572 mm | 592 mm | 592 mm | mm | 592 mm | 592 mm | 614.4 mm | 636.8 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° | ° | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 400 mm | 400 mm | 440 mm | 440 mm | mm | 440 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 67.3 ° | 67.3 ° | 67.3 ° | 67.3 ° | ° | 67.3 ° | 67.3 ° | 67.3 ° | 67.3 ° |
| Head Tube Length | 95 mm | 95 mm | 95 mm | 95 mm | mm | 95 mm | 95 mm | 105 mm | 115 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1140 mm | 1140 mm | 1160 mm | 1160 mm | mm | 1160 mm | 1160 mm | 1184 mm | 1208 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm | mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 707 mm | 707 mm | 729 mm | 729 mm | mm | 729 mm | 729 mm | 759 mm | 786 mm |
| Wheels | 27" | 29" | 27" | 29" | 27" | 27" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 158 cm | 168 cm | 168 cm | cm | 168 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 171 cm | 180 cm | 180 cm | cm | 180 cm | 180 cm | 189 cm | 199 cm |

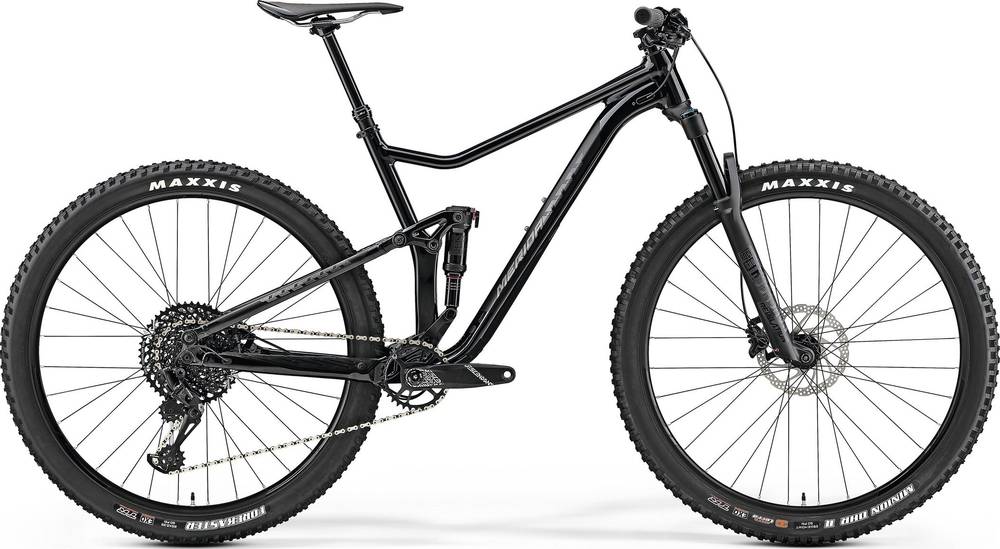

Model Overview
ONE-TWENTY 800 is a Merida One Twenty model. 86 bikes variations carry this model name so far. Take a sneak peek at all Merida One Twenty bikes models from 2019, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Trail bikes average weight
If we make a quick analysis of the average weight of a Trail bike, we get 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
ONE-TWENTY 800 weighs 14.34 kg (31.61 lbs) and is considerably heavier than the average. In conclusion, the average Trail bike weighs 10.48% less than ONE-TWENTY 800.
Overview of components
Fork
The ONE-TWENTY 800 comes factory-installed with the RockShox Revelation RC fork. This has a travel range of 130mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Merida ONE-TWENTY 800 bike has the Rock Shox Deluxe RL model installed, and has a travel of 120mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When leaving the production line, the ONE-TWENTY 800 model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The ONE-TWENTY 800 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Dropper post
Merida ONE-TWENTY 800 includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
