Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 27.5" / 29" -
Travel Front 130mm -
Fork RockShox Pike RC
-
Groupset X01 Eagle, Truvativ Descendant Carbon -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
MD
168cm - 180cm
MD
168cm - 180cm
MD
168cm - 180cm
LG
178cm - 189cm
LG
178cm - 189cm
LG
178cm - 189cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ONE-TWENTY CFA
Suspension Fork
Rock Shox Pike RC Air 15 130
Rear Shock
Rock Shox Monarch RT3
Drivetrain
Rear Derailleur
SRAM X01 EAGLE 12S
Shift Levers
SRAM X01 eagle
Cassette
SRAM X01 EAGLE 10-50T
Crank
SRAM DESCENDANT CARBON EAGLE 32T(27.5") / 30T(29")
Chain
SRAM X01 EAGLE
Wheels
Front Hub
attached
Rear Hub
attached
Rims
DT Swiss E 1700 SPLINE TWO 25 FW IS
Spokes
attached
Tires
Continental Mountain King II 2.4 ProTection
Brakes
Brakes
SRAM Guide RS 180 PM
Brake Levers
SRAM Guide RS
Cockpit
Handlebar
MERIDA EXPERT 35 760
Headset
Big Conoid S-bearing
Seat
Saddle
Prologo Nago Evo X15
Seatpost
Rock Shox Reverb Stealth 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD | MD | MD | LG | LG | LG | LG | XL |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.38 mm | 1.38 mm | 1.43 mm | 1.43 mm | 1.39 mm | 1.39 mm | 1.34 mm | 1.34 mm | 1.35 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 349 mm | 315 mm | 334 mm | 315 mm | 334 mm | 330 mm | 349 mm | 334 mm |
| Front Center | 683 mm | 703 mm | 703 mm | 702 mm | 702 mm | 725 mm | 725 mm | 728 mm | 728 mm | 749 mm |
| Rake | 40 mm | 40 mm | 40 mm | 46 mm | 46 mm | 46 mm | 46 mm | 39 mm | 39 mm | 46 mm |
| Trail | 100 mm | 100 mm | 108 mm | 87 mm | 94 mm | 87 mm | 94 mm | 102 mm | 109 mm | 94 mm |
| Stack | 587 mm | 591 mm | 591 mm | 613 mm | 613 mm | 622 mm | 622 mm | 601 mm | 601 mm | 631 mm |
| Reach | 410 mm | 428 mm | 428 mm | 429 mm | 429 mm | 448 mm | 448 mm | 450 mm | 450 mm | 469 mm |
| Top Tube Length | 573 mm | 593 mm | 593 mm | 593 mm | 593 mm | 616 mm | 616 mm | 618 mm | 618 mm | 640 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 75 ° | 75 ° | 75 ° | 75 ° | 74.5 ° | 74.5 ° | 75 ° |
| Seat Tube Length | 415 mm | 450 mm | 450 mm | 450 mm | 450 mm | 500 mm | 500 mm | 500 mm | 500 mm | 550 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 69 ° | 69 ° | 69 ° | 69 ° | 68 ° | 68 ° | 69 ° |
| Head Tube Length | 105 mm | 110 mm | 110 mm | 95 mm | 95 mm | 105 mm | 105 mm | 120 mm | 120 mm | 115 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 443 mm | 443 mm | 443 mm | 443 mm | 438 mm | 438 mm | 443 mm |
| Wheelbase | 1120 mm | 1140 mm | 1140 mm | 1142 mm | 1142 mm | 1165 mm | 1165 mm | 1165 mm | 1165 mm | 1189 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 40 mm | 40 mm | 40 mm | 40 mm | 25 mm | 25 mm | 40 mm |
| Standover Height | 708 mm | 730 mm | 730 mm | 738 mm | 738 mm | 766 mm | 766 mm | 754 mm | 754 mm | 771 mm |
| Wheels | 27" | 27" | 29" | 27" | 29" | 27" | 29" | 27" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 168 cm | 168 cm | 168 cm | 178 cm | 178 cm | 178 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 180 cm | 180 cm | 180 cm | 189 cm | 189 cm | 189 cm | 189 cm | 199 cm |
About this model

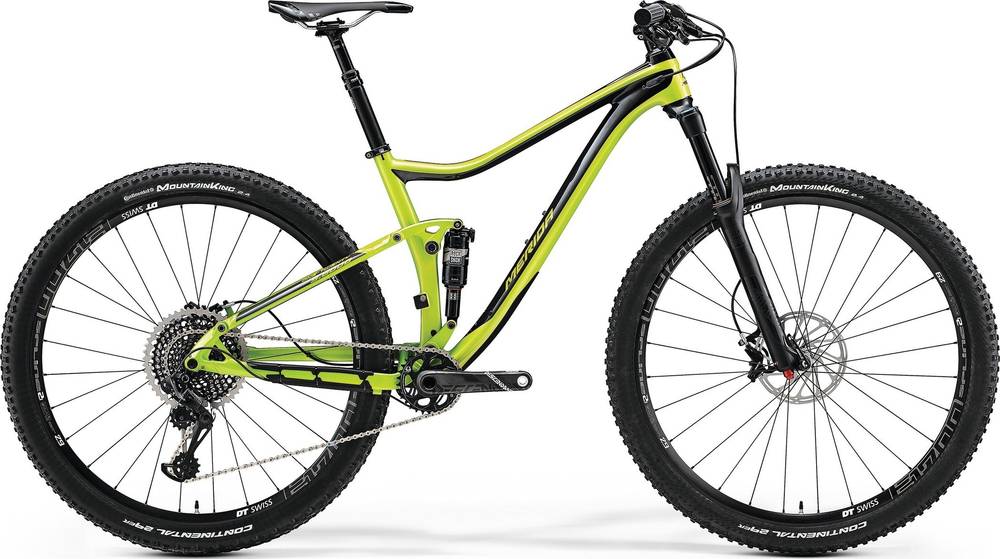

ONE-TWENTY 8000 completes the Merida One Twenty model. 86 bikes variations carry this model name so far. You can easily view all of the Merida One Twenty bikes models from 2017, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Trail bikes
Trail bikes weigh an average of 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
ONE-TWENTY 8000 weighs 12.95 kg (28.55 lbs) and is slightly lighter than the average. In other words, this model is 0.23% lighter than the average Trail bike.
ONE-TWENTY 8000 components
Fork
Merida ONE-TWENTY 8000 2017 bike is equipped with the RockShox Pike RC fork, and has 130mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
As for the wheels, Merida ONE-TWENTY 8000 2017, has a 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The ONE-TWENTY 8000 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 10 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
