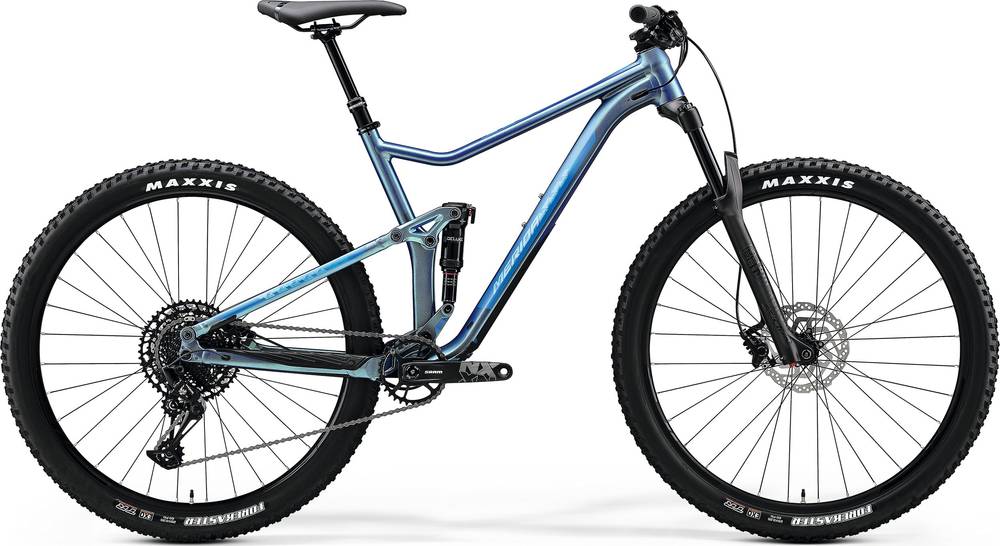

Merida ONE-TWENTY 9. 600 2020
2020 Mountain
Estimate price |
2,810$
Weight | 14.64 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" / 27.5" -
Travel Front 130mm -
Travel Rear 120mm -
Fork RockShox Sektor
-
Groupset NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ONE-TWENTY LITE, 120mm suspension travel, material: aluminium, 29 wheelsize, 148x12mm axle standard, BB92 bottom bracket standard
Suspension Fork
Rock Shox Sektor RL, Air 130mm suspension travel, Tapered, 42mm fork offset
Rear Shock
Rock Shox Deluxe Select+, lockout
Drivetrain
Rear Derailleur
SRAM NX Eagle
Shift Levers
SRAM NX Eagle
Cassette
SRAM PG-1230 Eagle, 11-50 teeth, 12 speed
Crank
SRAM NX Eagle, 32 teeth, 170 mm-S, 175 mm-M up
Bottom Bracket
SRAM BB DUB PF MTB 92
Chain
SRAM NX Eagle
Wheels
Front Hub
MERIDA COMP TR
Rear Hub
MERIDA COMP TR
Rims
MERIDA EXPERT TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Tires
Maxxis Forekaster
Brakes
Brakes
Shimano MT-500
Disk Rotors
Shimano RT10
Cockpit
Handlebar
MERIDA EXPERT TR, material: aluminium, 760mm width, 20mm rise
Headset
FSA NO.47/50
Seat
Saddle
MERIDA COMP CC
Seatpost
MERIDA COMP TR, 30.9mm diameter, 0mm setback, S: 100mm travel seatpost - M/L/XL 125mm travel seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.463 mm | 1.395 mm | 1.356 mm | 1.354 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 709 mm | 729 mm | 725 mm | 753 mm |
| Rake | 51 mm | 51 mm | 42 mm | 52 mm |
| Trail | 101 mm | 101 mm | 107 mm | 100 mm |
| Stack | 607 mm | 607 mm | 590 mm | 616 mm |
| Reach | 415 mm | 435 mm | 435 mm | 455 mm |
| Top Tube Length | 572 mm | 592 mm | 593 mm | 614 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75 ° | 75.5 ° |
| Seat Tube Length | 400 mm | 440 mm | 440 mm | 480 mm |
| Head Tube Angle | 67.3 ° | 67.3 ° | 66.8 ° | 67.3 ° |
| Head Tube Length | 95 mm | 95 mm | 115 mm | 105 mm |
| Chainstay Length | 435 mm | 435 mm | 430 mm | 435 mm |
| Wheelbase | 1141 mm | 1161 mm | 1154 mm | 1185 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 21 mm | 40 mm |
| Standover Height | 707 mm | 730 mm | 726 mm | 759 mm |
| Wheels | 29" | 29" | 27" | 29" |
| Rider Min Height | 158 cm | 168 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 179 cm | 187 cm |
Model Overview
ONE-TWENTY 9. 600 completes the Merida One Twenty model. There are 86 bikes that carry this model name. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Merida ONE-TWENTY 9. 400 2020 is the most affordable bike of this model and has a price of 2068$. On the other hand, Merida ONE-TWENTY RC 9. 9000 2020, is the most expensive and costs 8880$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2554$. Comparing the average cost of a Trail bike to this one, you will see that ONE-TWENTY 9. 600 price is 8.14% smaller.
Trail bikes average weight
Trail bikes have an average weight of 12.98 kg (28.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
ONE-TWENTY 9. 600 weighs 14.64 kg (32.28 lbs) and is considerably heavier than the average. In other words, this model is 12.79% heavier than the average Trail bike.
ONE-TWENTY 9. 600 components
Fork
This bike has the RockShox Sektor fork installed. The fork’s travel is 130mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this bike is Rock Shox Deluxe Select+, with a travel distance of 120mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When it comes to wheels, the ONE-TWENTY 9. 600 bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The ONE-TWENTY 9. 600 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
Dropper post
Merida ONE-TWENTY 9. 600 comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
