Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 26" -
Travel Front 120mm -
Fork RST
-
Groupset XT, Deore -
Suspension Full -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
One-Twenty Comp-D BC A-Link
Suspension Fork
RST First Air-32 120 Lockout taper
Rear Shock
SR Suntour Epicon Lorp
Drivetrain
Rear Derailleur
Shimano Deore XT Shadow+
Front Derailleur
Shimano Deore H35 triple
Shift Levers
Shimano Deore
Cassette
Shimano CS-HG-10 11-36
Crank
Shimano M610-10 42-32-24
Bottom Bracket
attached
Chain
KMC X10 10s
Wheels
Front Hub
Shimano M435 Cen
Rear Hub
Shimano M435 Cen
Rims
Mavic EN321-26
Spokes
black stainless
Tires
MERIDA Trail Lite 2.25 KV
Brakes
Brakes
Shimano M505 180 mm Cen
Brake Levers
attached
Cockpit
Handlebar
MERIDA Pro OS 680 R12
Headset
Big Conoid semi Neck
Seat
Saddle
MERIDA Pro SI
Seatpost
Merida Pro H SB0 31.6 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.31 mm | 1.31 mm | 1.32 mm |
| Stack | 548 mm | 548 mm | 562 mm | 581 mm |
| Reach | 399 mm | 419 mm | 429 mm | 439 mm |
| Top Tube Length | 563 mm | 583 mm | 598 mm | 613 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 410 mm | 460 mm | 510 mm | 560 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 120 mm | 120 mm | 135 mm | 155 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheels | 26" | 26" | 26" | 26" |
Model Overview

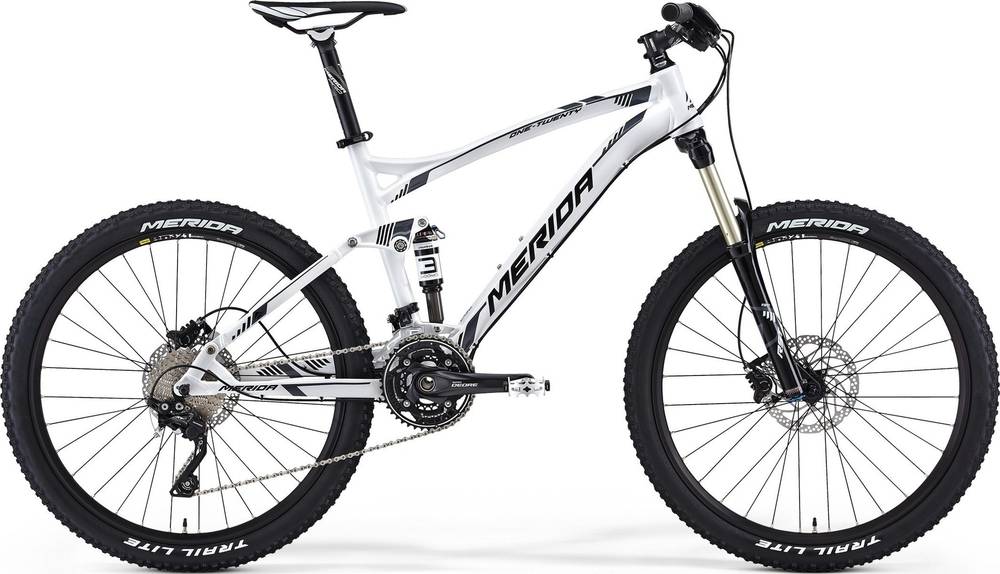

One-Twenty 900 is part of the Merida One Twenty model. There are 86 bikes that carry this model name. Take a sneak peek at all Merida One Twenty bikes models from 2014, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Trail bikes
The average weight for Trail bikes is 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 13.92 kg (30.69 lbs), Merida bike is a bit heavier than average. In short, the average Trail bike weight is 7.24% lower than this one.
Overview of components
Fork
The fork installed on this bike is the RST model. The travel on this model is 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The One-Twenty 900 2014 bike is equipped with 26″ aluminum wheels when leaving the factory. Being a little smaller, these wheels will fit both small and tall riders. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
