Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Travel Rear 100mm -
Fork SunTour XCR 32 Air
-
Groupset Alivio, Shimano -
Suspension Full -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ONE-TWENTY RC LITE, 100mm suspension travel, material: aluminium, 29 wheelsize, 148x12mm axle standard, BB92 bottom bracket standard
Suspension Fork
Suntour XCR32 RL-R, Air, 120mm suspension travel, Tapered, Remote lockout, 46mm fork offset
Rear Shock
Suntour Edge TR LOR8, lockout
Drivetrain
Rear Derailleur
Shimano Alivio Shadow
Front Derailleur
Shimano Alivio
Shift Levers
Shimano Alivio
Cassette
Shimano HG200, 11-36 teeth, 9 speed
Crank
Shimano MT210-B2, 36-22 teeth, 170 mm-S, 175 mm-M up
Bottom Bracket
BB-MT500-PA
Chain
KMC X10
Wheels
Front Hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock
Rear Hub
Shimano MT400-B, 148x12mm width rear hub, 32 spoke holes, Centerlock
Rims
MERIDA COMP CC, 20mm inner width, material: aluminium
Spokes
Black stainless
Tires
Maxxis Ikon, 29x2.2", fold
Brakes
Brakes
Shimano MT-200, 2 piston
Cockpit
Handlebar
MERIDA EXPERT CC, material: aluminium, 720mm width, 10mm rise
Headset
FSA NO.47/50
Seat
Saddle
MERIDA COMP CC
Seatpost
MERIDA COMP CC, material: aluminium, 30.9mm diameter, 0mm setback
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.438 mm | 1.373 mm | 1.333 mm | 1.296 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm |
| Front Center | 706 mm | 726 mm | 750 mm | 773 mm |
| Rake | 52 mm | 52 mm | 52 mm | 52 mm |
| Trail | 97 mm | 97 mm | 97 mm | 97 mm |
| Stack | 604 mm | 604 mm | 613 mm | 622 mm |
| Reach | 420 mm | 440 mm | 460 mm | 480 mm |
| Top Tube Length | 571 mm | 591 mm | 613 mm | 635.5 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 67.8 ° | 67.8 ° | 67.8 ° | 67.8 ° |
| Head Tube Length | 95 mm | 95 mm | 105 mm | 115 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1137 mm | 1157 mm | 1181 mm | 1205 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm | 44 mm |
| Standover Height | 703 mm | 725 mm | 755 mm | 783 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

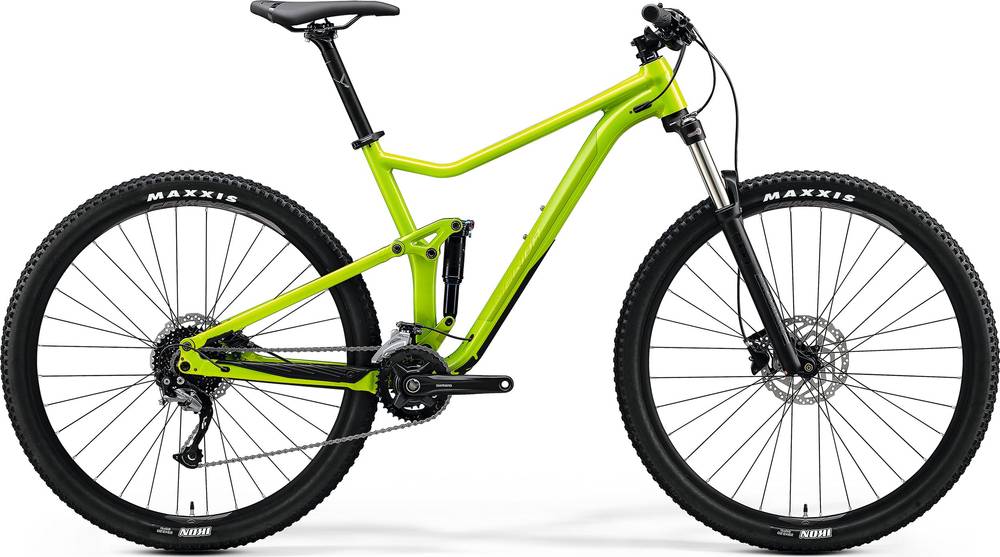

ONE-TWENTY RC 9. 300 is part of the Merida One Twenty model. 86 bikes variations carry this model name so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Merida ONE-TWENTY 9. 400 2020 is the most affordable bike of this model and has a price of 2068$. On the other hand, Merida ONE-TWENTY RC 9. 9000 2020, is the most expensive and costs 8880$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Crosscountry bikes average weight
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
ONE-TWENTY RC 9. 300 weighs 14.48 kg (31.92 lbs) and is much heavier than the average. In other words, this model is 16.77% heavier than the average Crosscountry bike.
Overview of components
Fork
Merida ONE-TWENTY RC 9. 300 2020 bike is equipped with the SunTour XCR 32 Air fork, and has 120mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the Suntour Edge TR LOR8 rear shock model, which has a travel of 100mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
As for the wheels, Merida ONE-TWENTY RC 9. 300 2020, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The ONE-TWENTY RC 9. 300 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
