Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork Fox Float 32
-
Groupset XT, Deore -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ONE-TWENTY TFS
Suspension Fork
Fox 32 Float 650B CTD O/C remote ready- Evolution 120
Rear Shock
Fox Float CTD SV (No BV) - Evolution
Drivetrain
Rear Derailleur
Shimano XT Shadow+
Front Derailleur
Shimano Deore triple
Shift Levers
Shimano SLX ispec
Cassette
Shimano CS-HG50-10 11-36
Crank
Shimano XT 38-24
Bottom Bracket
attached
Chain
KMC Z10-10s
Wheels
Front Hub
Formula Centerlock / Formula Centerlock-12
Rear Hub
Formula Centerlock / Formula Centerlock-12
Rims
DT Swiss 533D-27
Tires
Schwalbe Nobi Nic 2.25 PSC
Brakes
Brakes
Shimano M615 180 cen
Brake Levers
attached
Cockpit
Handlebar
MERIDA pro OS 740 R12
Headset
EGG steel neck
Seat
Saddle
Prologo Kappa 2
Seatpost
MERIDA pro H SB0 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.34 mm | 1.3 mm | 1.26 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm |
| Front Center | 681 mm | 702 mm | 728 mm | 753 mm |
| Rake | 39 mm | 40 mm | 40 mm | 40 mm |
| Trail | 102 mm | 100 mm | 100 mm | 100 mm |
| Stack | 571 mm | 580 mm | 589 mm | 599 mm |
| Reach | 415 mm | 432 mm | 454 mm | 475 mm |
| Top Tube Length | 573 mm | 593 mm | 618 mm | 643 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 415 mm | 460 mm | 510 mm | 560 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1118 mm | 1139 mm | 1165 mm | 1190 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 703 mm | 727 mm | 751 mm | 779 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

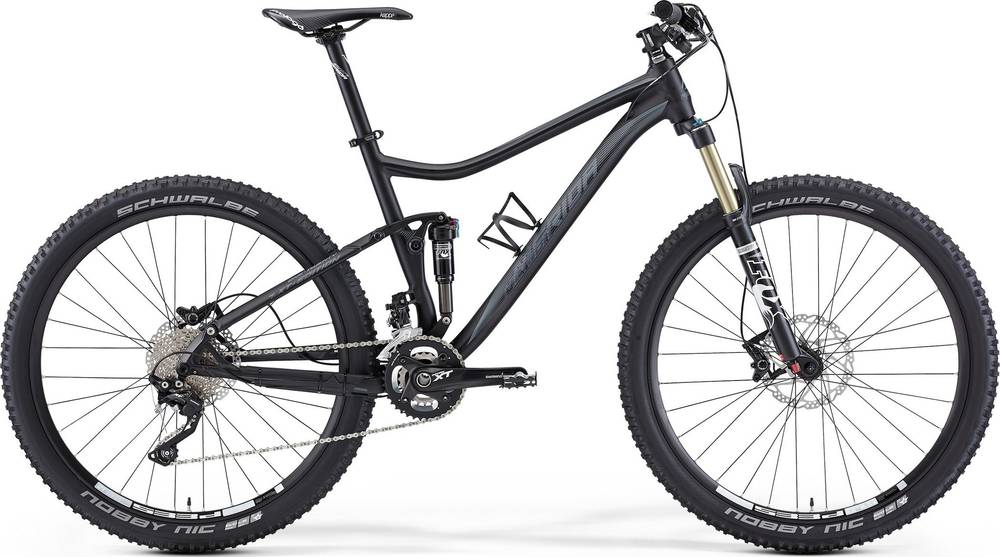

About this model
One-Twenty XT-Edition completes the Merida One Twenty model. 86 bikes variations carry this model name so far. Take a sneak peek at all Merida One Twenty bikes models from 2015, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
One-Twenty XT-Edition components
Fork
Merida One-Twenty XT-Edition 2015 bike is equipped with the Fox Float 32 fork, and has 120mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
As for the wheels, Merida One-Twenty XT-Edition 2015, has a 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The One-Twenty XT-Edition has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
One-Twenty XT-Edition comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
