Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 27.5" / 29" -
Travel Front 130mm -
Fork RockShox Revelation RC
-
Groupset XT -
Suspension Full -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
MD
168cm - 180cm
MD
168cm - 180cm
MD
168cm - 180cm
LG
178cm - 189cm
LG
178cm - 189cm
LG
178cm - 189cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ONE-TWENTY LITE
Suspension Fork
Rock Shox Revelation RC air fork with tapered steered, 130mm travel and 15mm bolt through axle, Boost
Rear Shock
Fox Performance Float
Drivetrain
Rear Derailleur
Shimano XT Shadow+
Front Derailleur
Shimano XT
Shift Levers
Shimano XT 22 speed rapid fire shifters
Cassette
Shimano M7000, 11 speed, 11-42
Crank
Shimano XT 36-26 teeth
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC X11-1
Wheels
Front Hub
Boost standard, Sealed bearing 15mm front and Shimano Deore 12mm rear bolt through axles, centerlock
Rear Hub
Boost standard, Sealed bearing 15mm front and Shimano Deore 12mm rear bolt through axles, centerlock
Rims
MERIDA Expert CC, 22.5mm inner width, tubeless ready
Spokes
Double Butted Black stainless
Tires
Maxxis Forekaster 2.35" folding
Brakes
Brakes
Shimano M500 hydraulic disc, 180mm rotors
Brake Levers
Shimano M500
Cockpit
Handlebar
MERIDA Expert CC 740mm wide 10mm rise
Headset
MERIDA M2339
Seat
Saddle
MERIDA Sport
Seatpost
MERIDA Expert Dropper 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD | MD | MD | LG | LG | LG | LG | XL |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.38 mm | 1.38 mm | 1.43 mm | 1.43 mm | 1.39 mm | 1.39 mm | 1.34 mm | 1.34 mm | 1.35 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 349 mm | 315 mm | 334 mm | 315 mm | 334 mm | 330 mm | 349 mm | 334 mm |
| Front Center | 683 mm | 703 mm | 703 mm | 702 mm | 702 mm | 725 mm | 725 mm | 728 mm | 728 mm | 749 mm |
| Rake | 40 mm | 40 mm | 40 mm | 46 mm | 46 mm | 46 mm | 46 mm | 39 mm | 39 mm | 46 mm |
| Trail | 100 mm | 100 mm | 108 mm | 87 mm | 94 mm | 87 mm | 94 mm | 102 mm | 109 mm | 94 mm |
| Stack | 587 mm | 591 mm | 591 mm | 613 mm | 613 mm | 622 mm | 622 mm | 601 mm | 601 mm | 631 mm |
| Reach | 410 mm | 428 mm | 428 mm | 429 mm | 429 mm | 448 mm | 448 mm | 450 mm | 450 mm | 469 mm |
| Top Tube Length | 573 mm | 593 mm | 593 mm | 593 mm | 593 mm | 616 mm | 616 mm | 618 mm | 618 mm | 640 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 75 ° | 75 ° | 75 ° | 75 ° | 74.5 ° | 74.5 ° | 75 ° |
| Seat Tube Length | 415 mm | 450 mm | 450 mm | 450 mm | 450 mm | 500 mm | 500 mm | 500 mm | 500 mm | 550 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 69 ° | 69 ° | 69 ° | 69 ° | 68 ° | 68 ° | 69 ° |
| Head Tube Length | 105 mm | 110 mm | 110 mm | 95 mm | 95 mm | 105 mm | 105 mm | 120 mm | 120 mm | 115 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 443 mm | 443 mm | 443 mm | 443 mm | 438 mm | 438 mm | 443 mm |
| Wheelbase | 1120 mm | 1140 mm | 1140 mm | 1142 mm | 1142 mm | 1165 mm | 1165 mm | 1165 mm | 1165 mm | 1189 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 40 mm | 40 mm | 40 mm | 40 mm | 25 mm | 25 mm | 40 mm |
| Standover Height | 705 mm | 730 mm | 730 mm | 738 mm | 738 mm | 766 mm | 766 mm | 754 mm | 754 mm | 794 mm |
| Wheels | 27" | 27" | 29" | 27" | 29" | 27" | 29" | 27" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 168 cm | 168 cm | 168 cm | 178 cm | 178 cm | 178 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 180 cm | 180 cm | 180 cm | 189 cm | 189 cm | 189 cm | 189 cm | 199 cm |

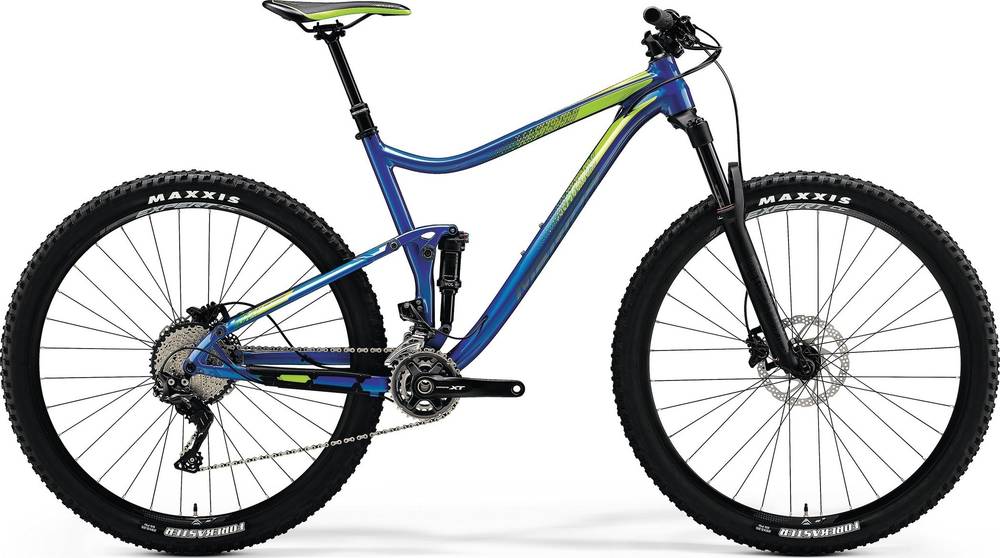

Model Overview
ONE-TWENTY XT-EDITION completes the Merida One Twenty model. There are 86 bikes that carry this model name. You can easily view all of the Merida One Twenty bikes models from 2018, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Trail bikes
If we make a quick analysis of the average weight of a Trail bike, we get 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 13.9 kg (30.64 lbs), Merida bike is a bit heavier than average. In short, the average Trail bike weight is 7.09% lower than this one.
ONE-TWENTY XT-EDITION components
Fork
The fork installed on this bike is the RockShox Revelation RC model. The travel on this model is 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The ONE-TWENTY XT-EDITION 2018 bike is equipped with 27.5″ aluminum wheels when leaving the factory. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida ONE-TWENTY XT-EDITION has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Merida ONE-TWENTY XT-EDITION bike has 10 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Merida ONE-TWENTY XT-EDITION comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
