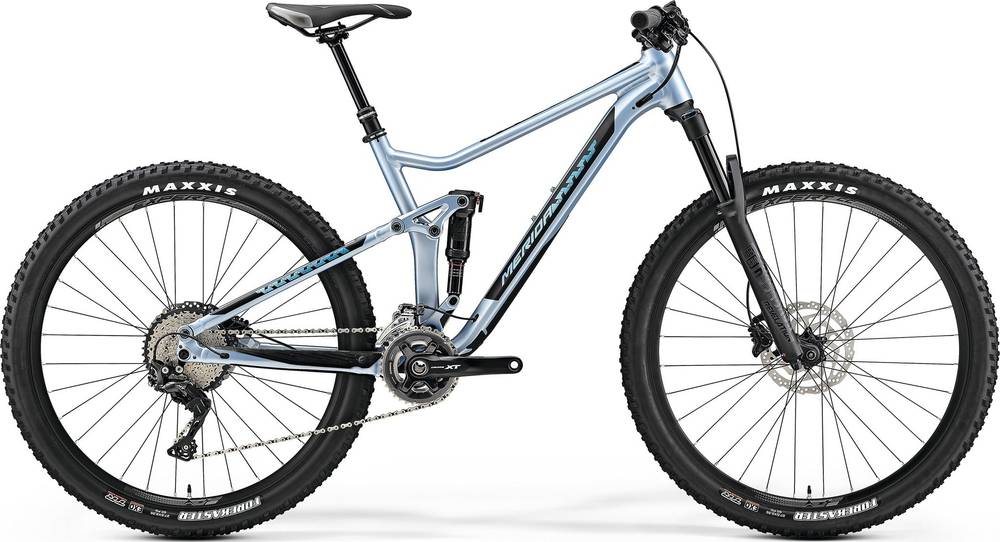

Merida ONE-TWENTY XT-EDITION JULIET 2019
2019 Mountain
Weight | 14.23 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 120mm -
Fork RockShox Revelation RC
-
Groupset XT -
Suspension Full -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ONE-TWENTY LITE JULIET
Suspension Fork
Rock Shox Revelation RC, Air, 130mm suspension travel, Tapered
Rear Shock
Rock Shox Deluxe RL, lockout
Drivetrain
Rear Derailleur
Shimano XT Shadow+
Front Derailleur
Shimano XT
Shift Levers
Shimano XT
Cassette
Shimano M7000, 11-42 teeth, 11 speed
Crank
Shimano XT, 36-26 teeth
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC X11
Chain Guide
N/A
Pedals
None included
Wheels
Front Hub
Shimano Deore, 110x15mm width, 32 spoke holes, Centerlock / Shimano Deore, 148x12mm width, 32 spoke holes, Centerlock
Rear Hub
Shimano Deore, 110x15mm width, 32 spoke holes, Centerlock / Shimano Deore, 148x12mm width, 32 spoke holes, Centerlock
Rims
MERIDA Expert CC, 22.8mm inner width
Spokes
Double Butted Black stainless
Tires
Maxxis Forekaster, 27.5x2.35", fold, TR EXO Dual
Brakes
Brakes
Shimano MT-500
Brake Levers
Shimano MT-501
Cockpit
Stem
Merida Expert CC, 31.8mm diameter, 6° stem angle, 60mm length
Handlebar
MERIDA Expert CC, 740mm width, 10mm rise
Grips
Merida Comp EC
Headset
FSA NO.47/50P Neck, 2191027101
Seat
Saddle
MERIDA Juliet Sport V
Seatpost
MERIDA EXPERT TR, 30.9mm diameter, 0mm setback, S: 100mm travel seatpost - M/L/XL 125mm travel seatpost,
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.356 mm |
| Bottom Bracket Height | 334 mm | 334 mm |
| Front Center | 701 mm | 725 mm |
| Rake | 42 mm | 42 mm |
| Trail | 107 mm | 107 mm |
| Stack | 580.8 mm | 590 mm |
| Reach | 415 mm | 435 mm |
| Top Tube Length | 570.6 mm | 593.1 mm |
| Seat Tube Angle | 75 ° | 75 ° |
| Seat Tube Length | 400 mm | 440 mm |
| Head Tube Angle | 66.8 ° | 66.8 ° |
| Head Tube Length | 105 mm | 115 mm |
| Chainstay Length | 430 mm | 430 mm |
| Wheelbase | 1130 mm | 1154 mm |
| Bottom Bracket Drop | 21 mm | 21 mm |
| Standover Height | 697 mm | 725 mm |
| Wheels | 27" | 27" |
About this model
ONE-TWENTY XT-EDITION JULIET is part of the Merida One Twenty model. Merida launched 86 bikes of this model so far. You can get a glimpse at all models from 2019, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Trail bikes average weight
Trail bikes weigh an average of 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 14.23 kg (31.37 lbs), the ONE-TWENTY XT-EDITION JULIET model is a bit heavier than average. To sum up, it’s 9.63% heavier than the average weight of Trail bikes.
Overview of components
Fork
Merida ONE-TWENTY XT-EDITION JULIET 2019 bike is equipped with the RockShox Revelation RC fork, and has 130mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The shock that’s installed on this bike is Rock Shox Deluxe RL, with a travel distance of 120mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The wheels on ONE-TWENTY XT-EDITION JULIET are the 27.5″ aluminum type. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida ONE-TWENTY XT-EDITION JULIET is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Dropper post
A dropper post is included with the ONE-TWENTY XT-EDITION JULIET. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
