Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset Tiagra, FSA -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
REACTO LITE
Suspension Fork
MERIDA REACTO CF
Drivetrain
Rear Derailleur
Shimano Tiagra, GS
Front Derailleur
Shimano Tiagra
Shift Levers
Shimano Tiagra
Cassette
Shimano CS-HG500, 12-28 teeth, 10 speed
Crank
FSA Omega, 52-36 teeth
Chain
KMC X10
Wheels
Front Hub
VP M700F, 100x9mm width, 24 spoke holes / VP M700R, 130x9mm width, 28 spoke holes
Rear Hub
VP M700F, 100x9mm width, 24 spoke holes / VP M700R, 130x9mm width, 28 spoke holes
Rims
MERIDA Comp CW, 17mm inner width, 30mm height
Spokes
Black stainless
Tires
Maxxis Dolomites, 700x25C, fold
Brakes
Brakes
MERIDA ROAD Comp / MERIDA REACTO direct
Brake Levers
Shimano Tiagra
Cockpit
Handlebar
MERIDA Expert CW
Headset
MERIDA M2331 Neck, 2191026445
Seat
Saddle
MERIDA Comp SL
Seatpost
MERIDA Comp CW, Aero shape, 15mm setback, Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | SM/MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.36 mm | 1.35 mm | 1.39 mm | 1.42 mm | 1.45 mm |
| Bottom Bracket Height | 275 mm | 275 mm | 275 mm | 275 mm | 275 mm | 275 mm |
| Front Center | 577 mm | 581 mm | 587 mm | 597 mm | 607 mm | 622 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 46 mm |
| Trail | 68 mm | 62 mm | 56 mm | 56 mm | 56 mm | 55 mm |
| Stack | 508 mm | 521 mm | 534 mm | 553 mm | 572 mm | 596 mm |
| Reach | 375 mm | 383 mm | 395 mm | 399 mm | 403 mm | 410 mm |
| Top Tube Length | 520 mm | 532 mm | 547 mm | 562 mm | 577 mm | 592 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 160 mm | 180 mm | 205 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 976 mm | 980 mm | 986 mm | 996 mm | 1006 mm | 1021 mm |
| Bottom Bracket Drop | 61 mm | 61 mm | 61 mm | 61 mm | 61 mm | 61 mm |
| Standover Height | 742 mm | 768 mm | 786 mm | 804 mm | 822 mm | 850 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

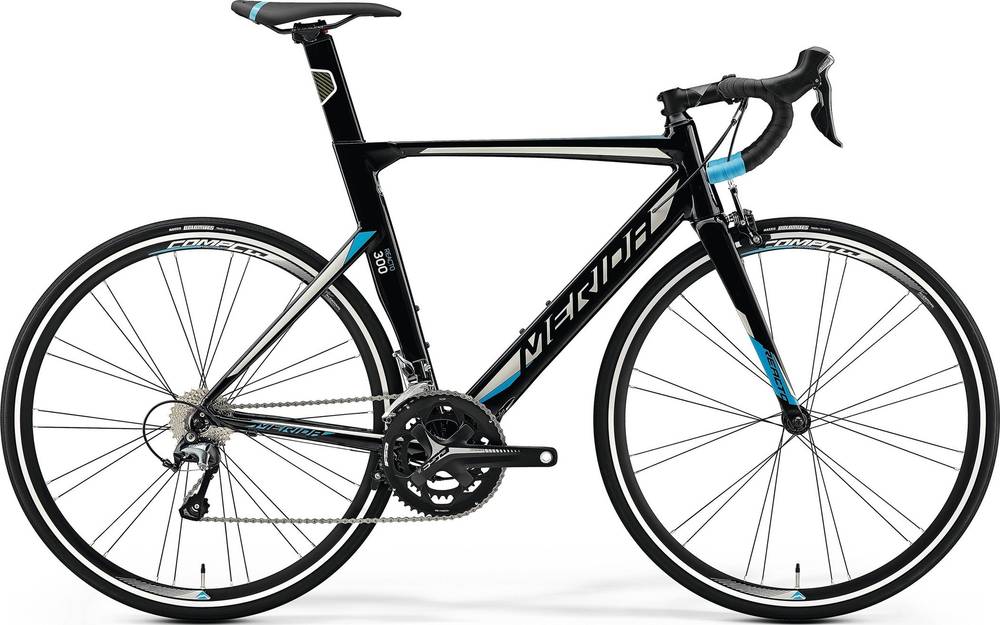

REACTO 300 is part of the Merida Reacto model. Merida launched 111 bikes of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Aero bikes average price
According to our math, the average price for a trustworthy Aero bike is 4211$. However, even if your budget is less than the average, you might still be able to get a top-quality Aero bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Aero bikes
Aero bikes weigh an average of 7.34 kg (16.18 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Merida REACTO 300 it’s weighing 9.84 kg (21.69 lbs). At this weight, is much heavier than average. In conclusion, the average Aero bike weighs 34.06% less than REACTO 300.
REACTO 300 components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When leaving the production line, the REACTO 300 model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes deliver an average performance overall. However, they have problems in wet conditions.
