Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset 105, FSA -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
REACTO LITE
Suspension Fork
Reacto Carbon Race
Drivetrain
Rear Derailleur
Shimano 105 SS
Front Derailleur
Shimano 105 D
Shift Levers
Shimano 105
Cassette
Shimano CS-5800-11 11-28
Crank
FSA Gossamer 52-36 MegaExo (BSA)
Bottom Bracket
BSA, 68mm, threaded
Chain
KMC X11
Wheels
Front Hub
Road seal Bearing
Rear Hub
Road seal Bearing
Rims
MERIDA AERO 30
Spokes
Black stainless
Tires
Maxxis Dolomites 23 fold
Brakes
Brakes
Merida Road Pro / Merida Reacto direct
Brake Levers
Shimano 105
Cockpit
Handlebar
MERIDA Compact road OS
Headset
FSA BB410P/No.55E
Seat
Saddle
MERIDA Race 5
Seatpost
Reacto carbon Comp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 59cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.36 mm | 1.35 mm | 1.39 mm | 1.42 mm | 1.45 mm |
| Bottom Bracket Height | 275 mm | 275 mm | 275 mm | 275 mm | 275 mm | 275 mm |
| Front Center | 577 mm | 581 mm | 587 mm | 597 mm | 607 mm | 622 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 46 mm | 46 mm |
| Trail | 68 mm | 62 mm | 56 mm | 56 mm | 55 mm | 55 mm |
| Stack | 508 mm | 521 mm | 534 mm | 553 mm | 572 mm | 596 mm |
| Reach | 375 mm | 383 mm | 395 mm | 399 mm | 402 mm | 410 mm |
| Top Tube Length | 520 mm | 532 mm | 547 mm | 562 mm | 577 mm | 592 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 160 mm | 180 mm | 205 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 976 mm | 980 mm | 986 mm | 996 mm | 1006 mm | 1021 mm |
| Bottom Bracket Drop | 61 mm | 61 mm | 61 mm | 61 mm | 61 mm | 61 mm |
| Standover Height | 747 mm | 771 mm | 786 mm | 805 mm | 823 mm | 851 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

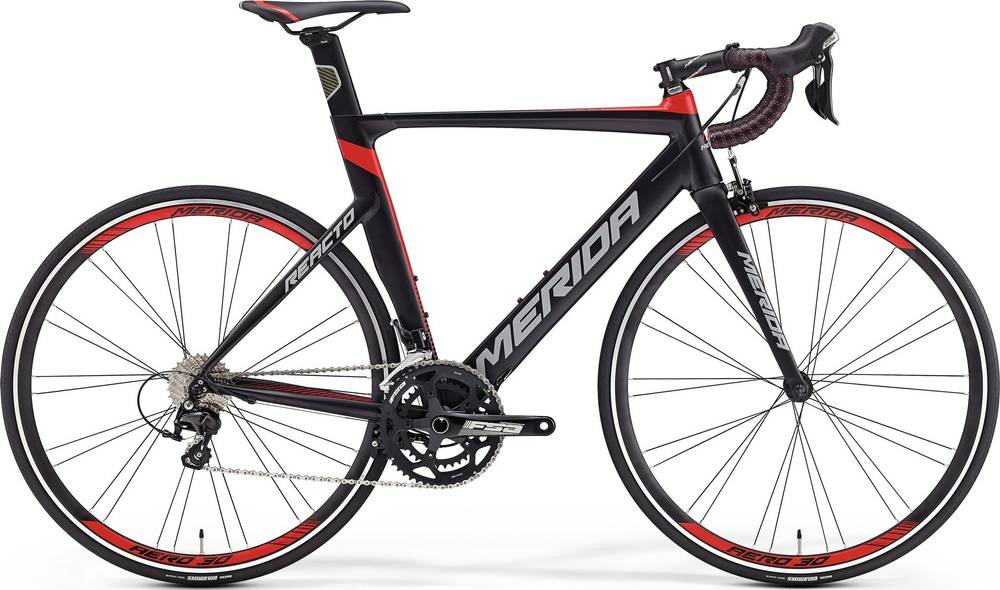

REACTO 400 is a Merida Reacto model. Merida released 111 bikes variations of this model so far. You can easily view all of the Merida Reacto bikes models from 2016, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Aero bikes average price
If you want to purchase a solid Aero bike, it is important to know that the average cost is 4211$. However, you could also get a good Aero bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Aero bikes
On a deeper look, we notice that the average weight of an Aero bike is 7.34 kg (16.18 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
REACTO 400 weighs 9.5 kg (20.94 lbs) and is much heavier than the average. In other words, this model is 29.43% heavier than the average Aero bike.
REACTO 400 components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The REACTO 400 2016 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The REACTO 400 has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
