Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset 105, FSA -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
REACTO CF3
Suspension Fork
Reacto Carbon pro-direct
Drivetrain
Rear Derailleur
Shimano 105 SS
Front Derailleur
Shimano 105 D
Shift Levers
Shimano 105
Cassette
Shimano CS-5800-11 11-28
Crank
FSA Gossamer Pro 52-36 (BB386)
Bottom Bracket
BB86/BB92, press-fit
Chain
KMC X11
Wheels
Front Hub
Formula Road Bearing
Rear Hub
Formula Road Bearing
Rims
MERIDA super AERO 38
Spokes
Black stainless
Tires
Continental Ultra Sport II 25 fold
Brakes
Brakes
Shimano 105-direct
Brake Levers
Shimano 105
Cockpit
Handlebar
MERIDA Compact road OS
Headset
FSA No.47/48
Seat
Saddle
MERIDA Sport Pro
Seatpost
Reacto carbon Race [Di2 ready]
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 59cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.39 mm | 1.38 mm | 1.4 mm | 1.45 mm | 1.48 mm |
| Bottom Bracket Height | 275 mm | 275 mm | 275 mm | 275 mm | 275 mm | 275 mm |
| Front Center | 577 mm | 581 mm | 587 mm | 597 mm | 611 mm | 622 mm |
| Rake | 44 mm | 45 mm | 45 mm | 40 mm | 49 mm | 45 mm |
| Trail | 69 mm | 62 mm | 56 mm | 61 mm | 51 mm | 56 mm |
| Stack | 516 mm | 529 mm | 542 mm | 561 mm | 580 mm | 604 mm |
| Reach | 373 mm | 381 mm | 392 mm | 402 mm | 400 mm | 408 mm |
| Top Tube Length | 522 mm | 537 mm | 547 mm | 562 mm | 577 mm | 592 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 109 mm | 124 mm | 139 mm | 159 mm | 184 mm | 209 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 976 mm | 980 mm | 986 mm | 996 mm | 1010 mm | 1021 mm |
| Bottom Bracket Drop | 61 mm | 61 mm | 61 mm | 61 mm | 61 mm | 61 mm |
| Standover Height | 744 mm | 770 mm | 787 mm | 804 mm | 826 mm | 852 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

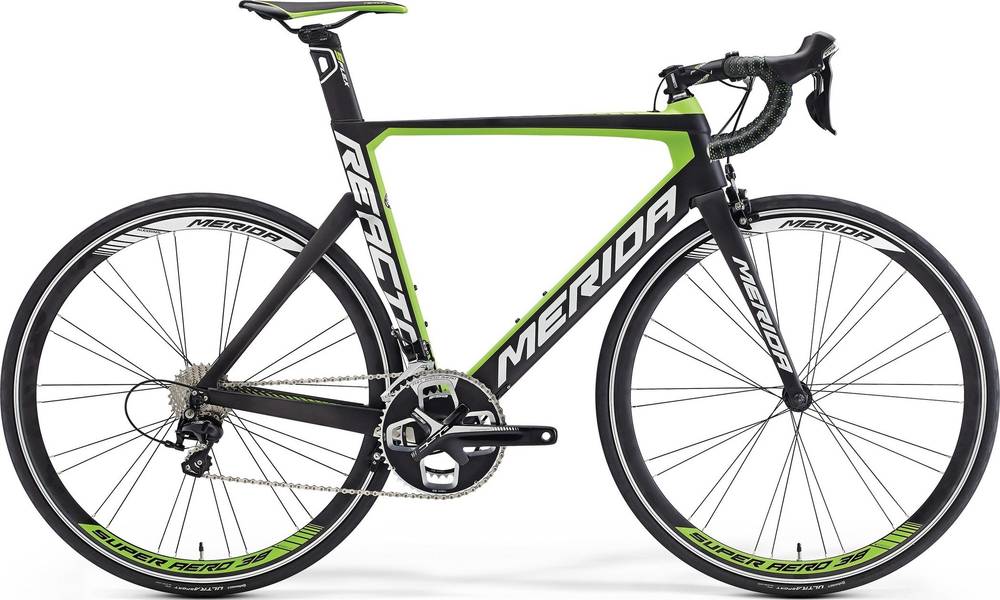

REACTO 4000 is a Merida Reacto model. 111 bikes variations carry this model name so far. Take a sneak peek at all Merida Reacto bikes models from 2016, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Aero bikes
According to our calculations, the average cost of an Aero bike that is reliable is 4211$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Aero bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Aero bikes
Aero bikes have an average weight of 7.34 kg (16.18 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 8.9 kg (19.62 lbs), Merida bike is much heavier than average. In short, the average Aero bike weight is 21.25% lower than this one.
REACTO 4000 components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
As for the wheels, Merida REACTO 4000 2016, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The REACTO 4000 comes with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
