Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset 105, FSA -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
REACTO CF2
Suspension Fork
MERIDA REACTO CF2
Drivetrain
Rear Derailleur
Shimano 105, GS
Front Derailleur
Shimano 105
Shift Levers
Shimano 105
Cassette
Shimano CS-R7000, 11-30 teeth, 11 speed
Crank
FSA Gossamer Pro, 52-36 teeth
Chain
KMC X11
Wheels
Front Hub
VP M700F, 100x9mm width, 24 spoke holes / VP M700R, 130x9mm width, 28 spoke holes
Rear Hub
VP M700F, 100x9mm width, 24 spoke holes / VP M700R, 130x9mm width, 28 spoke holes
Rims
MERIDA Expert CW, 17mm inner width, 35mm height
Spokes
Double Butted Black stainless
Tires
Continental Grand Sport Race, 700x25C, fold
Brakes
Brakes
Shimano 105-direct
Brake Levers
Shimano 105 R7000
Cockpit
Handlebar
MERIDA Expert CW
Headset
MERIDA REACTO neck, 2191026779
Seat
Saddle
MERIDA Comp SL
Seatpost
MERIDA Expert CW, Aero shape, 15mm setback, Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | SM/MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.41 mm | 1.41 mm | 1.44 mm | 1.47 mm | 1.5 mm | 1.52 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 586 mm | 583 mm | 593 mm | 591 mm | 596 mm | 606 mm | 615 mm |
| Rake | 45 mm | 45 mm | 44 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 74 mm | 68 mm | 69 mm | 59 mm | 56 mm | 56 mm | 53 mm |
| Stack | 522 mm | 535 mm | 545 mm | 564 mm | 581 mm | 599 mm | 622 mm |
| Reach | 378 mm | 379 mm | 387 mm | 391 mm | 396 mm | 400 mm | 408 mm |
| Top Tube Length | 521 mm | 526 mm | 541 mm | 551 mm | 566 mm | 581 mm | 596 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 72.5 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 122 mm | 132 mm | 142 mm | 162 mm | 177 mm | 197 mm | 217 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm |
| Wheelbase | 990 mm | 987 mm | 997 mm | 996 mm | 1001 mm | 1011 mm | 1020 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 718 mm | 741 mm | 765 mm | 788 mm | 808 mm | 827 mm | 854 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

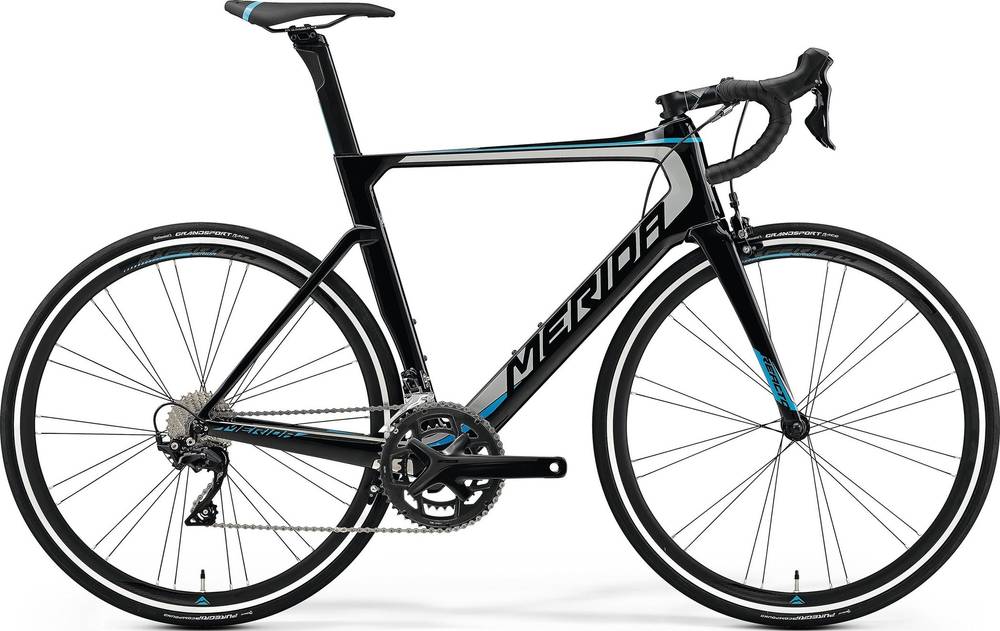

REACTO 4000 is a Merida Reacto model. There are 111 bikes that carry this model name. You can get a glimpse at all models from 2019, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Aero bikes
If you want to purchase a solid Aero bike, it is important to know that the average cost is 4211$. However, this doesn’t mean that if you spend less money on an Aero bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Aero bikes
The average weight for Aero bikes is 7.34 kg (16.18 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 8.61 kg (18.98 lbs), Merida bike is much heavier than average. To sum up, it’s 17.3% heavier than the average weight of Aero bikes.
Overview of components
Fork material
REACTO 4000 has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When leaving the production line, the REACTO 4000 model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The REACTO 4000 comes with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
