Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset Ultegra, FSA -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
REACTO CF3
Suspension Fork
Reacto Carbon pro-direct
Drivetrain
Rear Derailleur
Shimano Ultegra SS
Front Derailleur
Shimano Ultegra D
Shift Levers
Shimano Ultegra
Cassette
Shimano CS-5800-11 11-28
Crank
FSA Gossamer Pro 52-36 (BB386)
Bottom Bracket
BB86/BB92, press-fit
Chain
KMC X11
Wheels
Front Hub
Formula Road Bearing
Rear Hub
Formula Road Bearing
Rims
MERIDA super AERO 38
Spokes
Black stainless
Tires
Continental Grand Sport Race 25 fold
Brakes
Brakes
Shimano 105-direct
Brake Levers
Shimano Ultegra
Cockpit
Handlebar
FSA Gossamer compact OS
Headset
FSA No.47/48
Seat
Saddle
Prologo Kappa 3
Seatpost
Reacto carbon Race [Di2 ready]
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 59cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.39 mm | 1.38 mm | 1.4 mm | 1.45 mm | 1.48 mm |
| Bottom Bracket Height | 275 mm | 275 mm | 275 mm | 275 mm | 275 mm | 275 mm |
| Front Center | 577 mm | 581 mm | 587 mm | 597 mm | 611 mm | 622 mm |
| Rake | 44 mm | 45 mm | 45 mm | 40 mm | 49 mm | 45 mm |
| Trail | 69 mm | 62 mm | 56 mm | 61 mm | 51 mm | 56 mm |
| Stack | 516 mm | 529 mm | 542 mm | 561 mm | 580 mm | 604 mm |
| Reach | 373 mm | 381 mm | 392 mm | 402 mm | 400 mm | 408 mm |
| Top Tube Length | 522 mm | 537 mm | 547 mm | 562 mm | 577 mm | 592 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 109 mm | 124 mm | 139 mm | 159 mm | 184 mm | 209 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 976 mm | 980 mm | 986 mm | 996 mm | 1010 mm | 1021 mm |
| Bottom Bracket Drop | 61 mm | 61 mm | 61 mm | 61 mm | 61 mm | 61 mm |
| Standover Height | 744 mm | 770 mm | 787 mm | 804 mm | 826 mm | 852 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

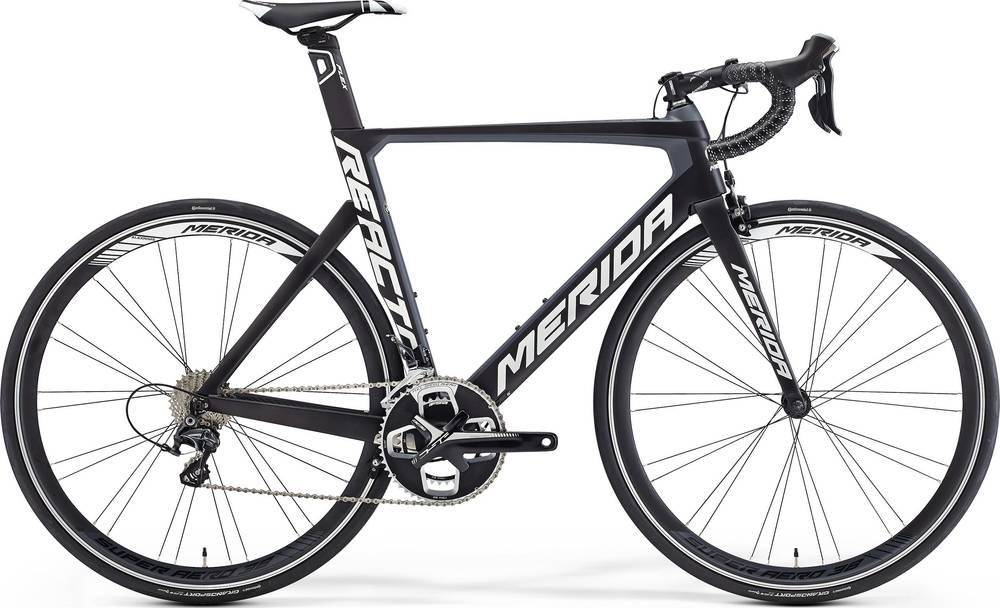

REACTO 5000 belongs to the Merida Reacto model. 111 bikes variations carry this model name so far. Check out the entire range from 2016 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Aero bikes
According to our calculations, the average cost of an Aero bike that is reliable is 4211$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Aero bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Aero bikes
The average weight for Aero bikes is 7.34 kg (16.18 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
considerably heavier than average, REACTO 5000 has a weight of 8.3 kg (18.3 lbs). In short, the average Aero bike weight is 13.08% lower than this one.
REACTO 5000 components
Fork material
REACTO 5000 has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
As for the wheels, Merida REACTO 5000 2016, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida REACTO 5000 is equipped with Rim brakes. Rim brakes deliver an average performance overall. However, they have problems in wet conditions.
