Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset Ultegra, FSA -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
REACTO CF4 / CF3
Suspension Fork
Reacto Carbon pro-direct
Drivetrain
Rear Derailleur
Shimano Ultegra SS
Front Derailleur
Shimano Ultegra D
Shift Levers
Shimano Ultegra
Cassette
Shimano CS-5800-11 11-28
Crank
FSA Gossamer Pro 52-36 386
Bottom Bracket
attached
Chain
Shimano 11s
Wheels
Front Hub
Formula Road Bearing
Rear Hub
Formula Road Bearing
Rims
MERIDA super AERO 38
Tires
Continental Grand Sport Race 25 fold
Brakes
Brakes
Shimano 105-direct
Brake Levers
attached
Cockpit
Handlebar
FSA Gossamer compact OS
Headset
Big Conoid-insert neck pro
Seat
Saddle
Prologo Kappa 2
Seatpost
Reacto Aero carbon Race
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 59cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.39 mm | 1.38 mm | 1.4 mm | 1.45 mm | 1.48 mm |
| Bottom Bracket Height | 275 mm | 275 mm | 275 mm | 275 mm | 275 mm | 275 mm |
| Front Center | 577 mm | 581 mm | 587 mm | 597 mm | 611 mm | 622 mm |
| Rake | 44 mm | 45 mm | 45 mm | 40 mm | 49 mm | 45 mm |
| Trail | 69 mm | 62 mm | 56 mm | 61 mm | 51 mm | 56 mm |
| Stack | 516 mm | 529 mm | 542 mm | 561 mm | 580 mm | 604 mm |
| Reach | 373 mm | 381 mm | 392 mm | 402 mm | 400 mm | 408 mm |
| Top Tube Length | 522 mm | 537 mm | 547 mm | 562 mm | 577 mm | 592 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 109 mm | 124 mm | 139 mm | 159 mm | 184 mm | 209 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 976 mm | 980 mm | 986 mm | 996 mm | 1010 mm | 1021 mm |
| Bottom Bracket Drop | 61 mm | 61 mm | 61 mm | 61 mm | 61 mm | 61 mm |
| Standover Height | 805 mm | 831 mm | 848 mm | 865 mm | 887 mm | 913 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

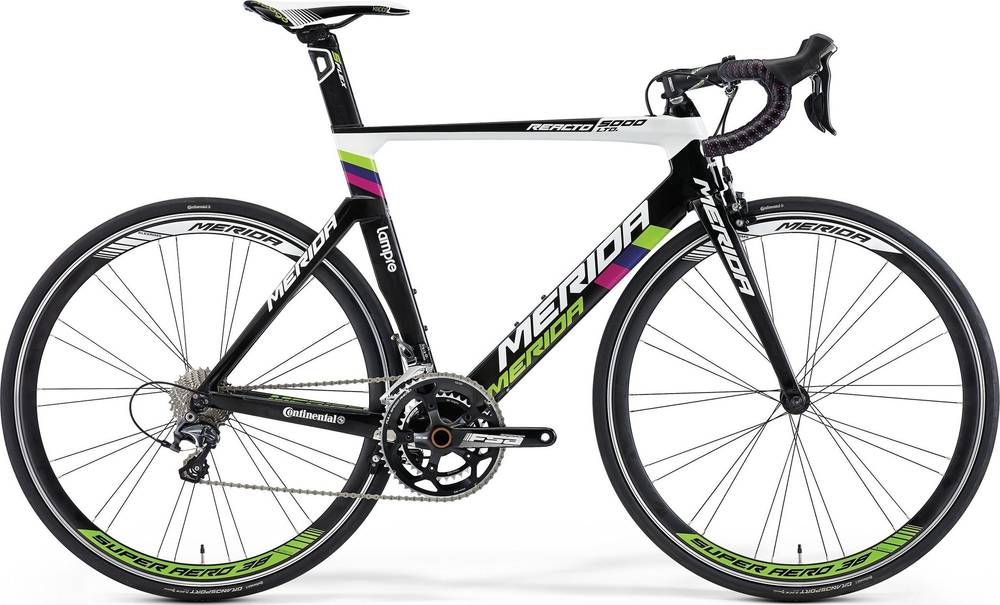

Reacto 5000 LTD belongs to the Merida Reacto model. There are 111 bikes that carry this model name. Check out the entire range from 2015 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Aero bikes average price
Our math shows that the average cost of a dependable Aero bike is 4211$. However, even though the average price of an Aero bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When leaving the production line, the Reacto 5000 LTD model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Reacto 5000 LTD comes with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
