Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
163cm - 172cm
SM/MD
168cm - 177cm
MD/LG
173cm - 182cm
LG
178cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
REACTO CF2, material: carbon, 700C wheelsize, 100x9/ 130x9mm axle standard, BB386-PF30 bottom bracket standard
Suspension Fork
MERIDA REACTO CF2
Drivetrain
Rear Derailleur
Shimano Ultegra, GS
Front Derailleur
Shimano Ultegra
Shift Levers
Shimano Ultegra
Cassette
Shimano CS-R7000, 11-30 teeth, 11 speed
Crank
Shimano Ultegra, 52-36 teeth, 165 mm-XXS, 170 mm-XS/S, 172.5 mm-SM/ML, 175 mm-L/XL
Bottom Bracket
FSA 386-BB30 PF6000 [SMN FC]
Chain
KMC X11
Wheels
Rims
Fulcrum Racing 600, 100x9mm width front hub, 130x9mm width rear hub, 17mm inner width, 24,5 / 27,5mm height
Tires
Continental Grand Sport Race, 700x25C, fold
Brakes
Brakes
Shimano Ultegra, Direct
Brake Levers
Shimano Ultegra
Cockpit
Handlebar
MERIDA EXPERT CW, material: aluminium
Headset
MERIDA REACTO neck
Seat
Saddle
MERIDA EXPERT CC
Seatpost
MERIDA EXPERT CW, material: carbon, Aero shape, 15mm setback
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | SM/MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.41 mm | 1.41 mm | 1.44 mm | 1.47 mm | 1.5 mm | 1.52 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 586 mm | 583 mm | 593 mm | 591 mm | 596 mm | 606 mm | 615 mm |
| Rake | 45 mm | 45 mm | 44 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 74 mm | 68 mm | 69 mm | 59 mm | 56 mm | 56 mm | 53 mm |
| Stack | 522 mm | 535 mm | 545 mm | 564 mm | 581 mm | 599 mm | 622 mm |
| Reach | 378 mm | 379 mm | 387 mm | 391 mm | 396 mm | 400 mm | 408 mm |
| Top Tube Length | 521 mm | 526 mm | 541 mm | 551 mm | 566 mm | 581 mm | 596 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 72.5 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 122 mm | 132 mm | 142 mm | 162 mm | 177 mm | 197 mm | 217 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm |
| Wheelbase | 990 mm | 987 mm | 997 mm | 996 mm | 1001 mm | 1011 mm | 1020 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 718 mm | 741 mm | 765 mm | 788 mm | 808 mm | 827 mm | 854 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 162 cm | 167 cm | 172 cm | 177 cm | 182 cm | 187 cm | cm |

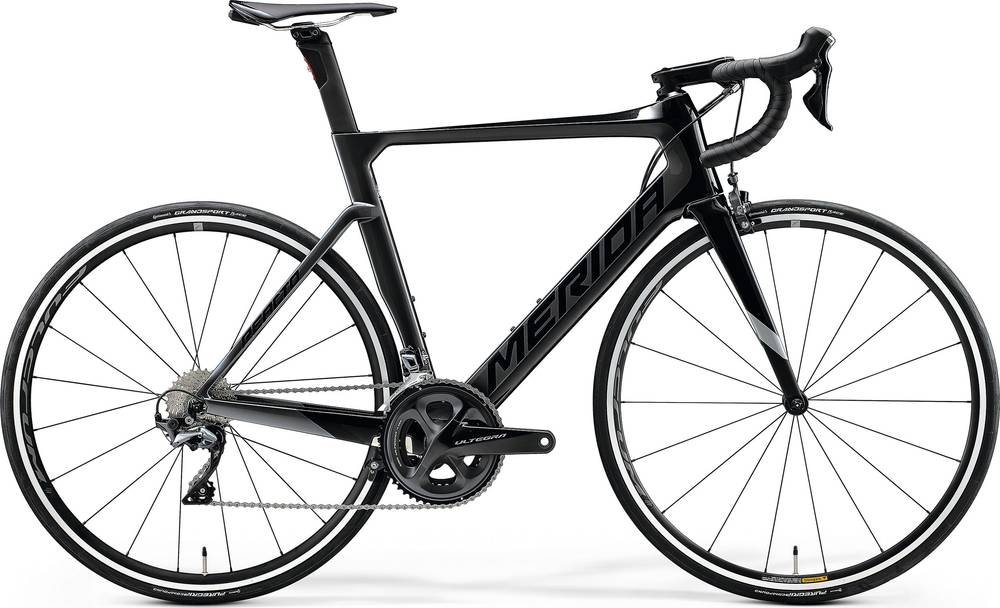

Model Overview
REACTO 6000 completes the Merida Reacto model. Merida launched 111 bikes of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Aero bikes
According to our calculations, the average cost of an Aero bike that is reliable is 4211$. However, this doesn’t mean that if you spend less money on an Aero bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Aero bikes average weight
On a deeper look, we notice that the average weight of an Aero bike is 7.34 kg (16.18 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
considerably heavier than average, REACTO 6000 has a weight of 8.12 kg (17.9 lbs). In other words, this model is 10.63% heavier than the average Aero bike.
REACTO 6000 components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
As for the wheels, Merida REACTO 6000 2020, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The REACTO 6000 has Rim brakes. Rim brakes deliver an average performance overall. However, you could spend a little extra and get a bike that has hydraulic brakes.
