Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
REACTO CF3
Suspension Fork
Reacto Carbon pro-direct
Drivetrain
Rear Derailleur
Shimano Ultegra SS Di2
Front Derailleur
Shimano Ultegra D Di2
Shift Levers
Shimano Ultegra Di2
Cassette
Shimano CS-5800-11 11-28
Crank
Shimano Ultegra 52-36 [PF to 386]
Bottom Bracket
BB86/BB92, press-fit
Chain
KMC X11EL
Wheels
Front Hub
attached
Rear Hub
attached
Rims
Fulcrum Quattro 35 special edition
Tires
Continental Grand Sport Race 25 fold
Brakes
Brakes
Shimano Ultegra-direct
Brake Levers
Shimano Ultegra Di2
Cockpit
Handlebar
FSA Gossamer compact OS
Headset
B47-4856 bearing carbon neck pro
Seat
Saddle
Prologo new Nago Evo T2.0
Seatpost
Reacto carbon Race [Di2 ready]
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 59cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.39 mm | 1.38 mm | 1.4 mm | 1.45 mm | 1.48 mm |
| Bottom Bracket Height | 275 mm | 275 mm | 275 mm | 275 mm | 275 mm | 275 mm |
| Front Center | 577 mm | 581 mm | 587 mm | 597 mm | 611 mm | 622 mm |
| Rake | 44 mm | 45 mm | 45 mm | 40 mm | 49 mm | 45 mm |
| Trail | 69 mm | 62 mm | 56 mm | 61 mm | 51 mm | 56 mm |
| Stack | 516 mm | 529 mm | 542 mm | 561 mm | 580 mm | 604 mm |
| Reach | 373 mm | 381 mm | 392 mm | 402 mm | 400 mm | 408 mm |
| Top Tube Length | 522 mm | 537 mm | 547 mm | 562 mm | 577 mm | 592 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 109 mm | 124 mm | 139 mm | 159 mm | 184 mm | 209 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 976 mm | 980 mm | 986 mm | 996 mm | 1010 mm | 1021 mm |
| Bottom Bracket Drop | 61 mm | 61 mm | 61 mm | 61 mm | 61 mm | 61 mm |
| Standover Height | 744 mm | 770 mm | 787 mm | 804 mm | 826 mm | 852 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

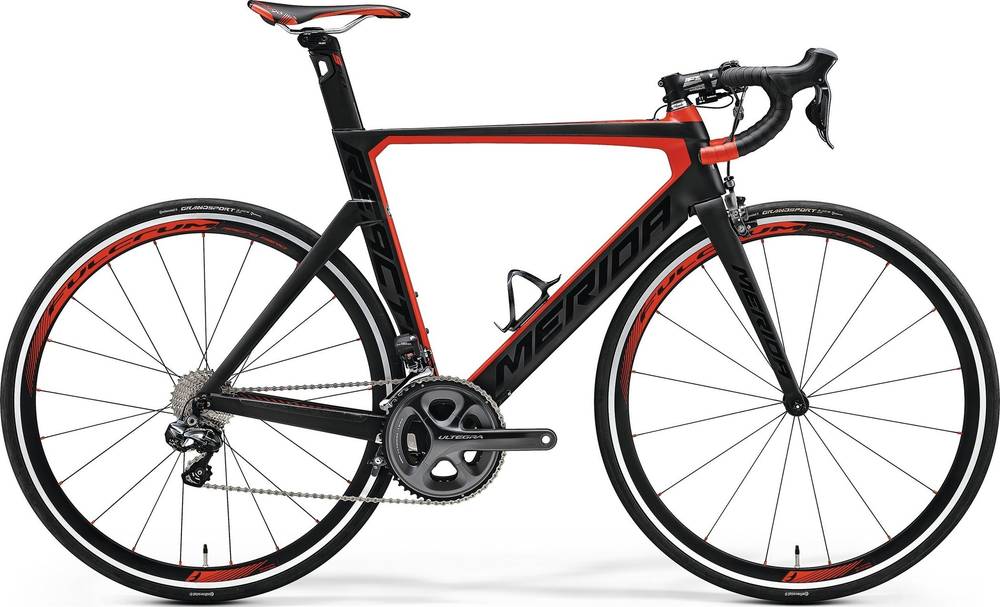

REACTO 7000-E belongs to the Merida Reacto model. Merida released 111 bikes variations of this model so far. You can easily view all of the Merida Reacto bikes models from 2017, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Aero bikes
If you want an acceptable Aero bike you should know that the average price is 4211$. However, you could also get a good Aero bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Aero bikes
If we make a quick analysis of the average weight of an Aero bike, we get 7.34 kg (16.18 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Merida REACTO 7000-E it’s weighing 8.06 kg (17.77 lbs). At this weight, is a bit heavier than average. In conclusion, the average Aero bike weighs 9.81% less than REACTO 7000-E.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The wheels on REACTO 7000-E are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The REACTO 7000-E has Rim brakes. Rim brakes deliver an average performance overall. However, you could spend a little extra and get a bike that has hydraulic brakes.
