Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset Ultegra Di2, FSA -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
REACTO CF2
Suspension Fork
Pro Full carbon tapered fork with direct brake mounts
Drivetrain
Rear Derailleur
Shimano Ultegra Di2
Front Derailleur
Shimano Ultegra Di2
Shift Levers
Shimano Ultegra, 22 speed, Di2
Cassette
Shimano CS-5800, 11 speed, 11-28 teeth
Crank
FSA Energy 52-36 teeth
Chain
KMC X11-1
Wheels
Rims
Fulcrum Quattro 35 special edition wheelset, quick release, aero bladed spokes
Tires
Continental Grand Sport Race 25c folding
Brakes
Brakes
Shimano Ultegra - direct mount
Brake Levers
Shimano Ultegra
Cockpit
Handlebar
MERIDA Expert Aero double butted 6061 aluminium compact drop, oversize clamp
Headset
MERIDA Reacto
Seat
Saddle
Prologo Zero II pas T2.0
Seatpost
Reacto carbon Race [Di2 ready]
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | SM/MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.41 mm | 1.41 mm | 1.44 mm | 1.47 mm | 1.5 mm | 1.52 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 586 mm | 583 mm | 593 mm | 591 mm | 596 mm | 606 mm | 615 mm |
| Rake | 45 mm | 45 mm | 44 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 74 mm | 68 mm | 69 mm | 59 mm | 56 mm | 56 mm | 53 mm |
| Stack | 522 mm | 535 mm | 545 mm | 564 mm | 581 mm | 599 mm | 622 mm |
| Reach | 378 mm | 379 mm | 387 mm | 391 mm | 396 mm | 400 mm | 408 mm |
| Top Tube Length | 521 mm | 526 mm | 541 mm | 551 mm | 566 mm | 581 mm | 596 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 72.5 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 122 mm | 132 mm | 142 mm | 162 mm | 177 mm | 197 mm | 217 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm |
| Wheelbase | 990 mm | 987 mm | 997 mm | 996 mm | 1001 mm | 1011 mm | 1020 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 718 mm | 741 mm | 765 mm | 788 mm | 808 mm | 827 mm | 854 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

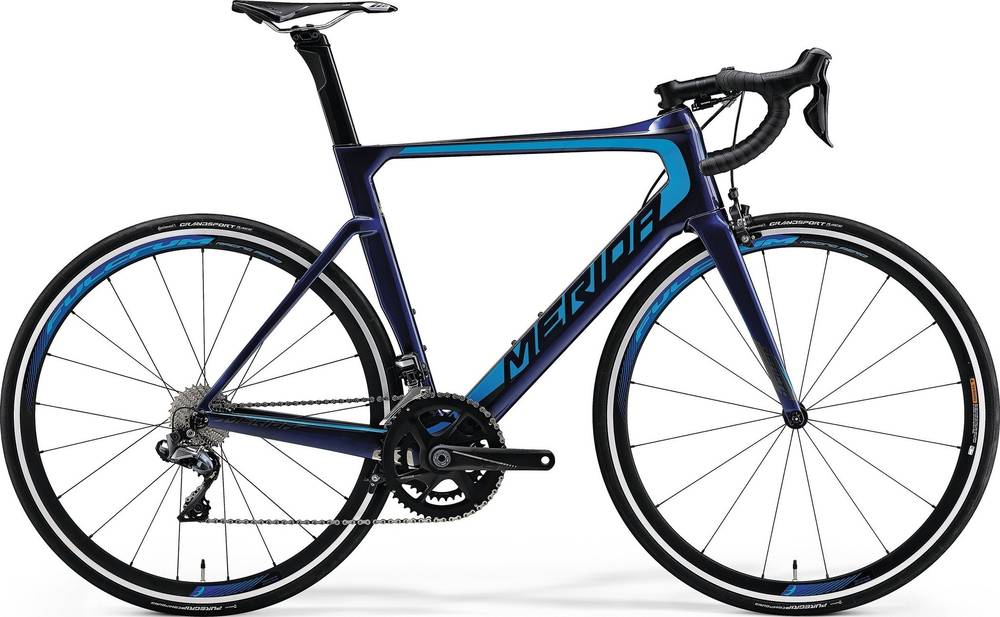

REACTO 7000-E belongs to the Merida Reacto model. There are 111 bikes that carry this model name. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Aero bikes
According to our calculations, the average cost of an Aero bike that is reliable is 4211$. However, this doesn’t mean that if you spend less money on an Aero bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Aero bikes
Aero bikes have an average weight of 7.34 kg (16.18 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 7.75 kg (17.09 lbs), the REACTO 7000-E model is a bit heavier than average. To sum up, it’s 5.59% heavier than the average weight of Aero bikes.
REACTO 7000-E components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When leaving the production line, the REACTO 7000-E model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they are not nearly as effective as hydraulic brakes are.
