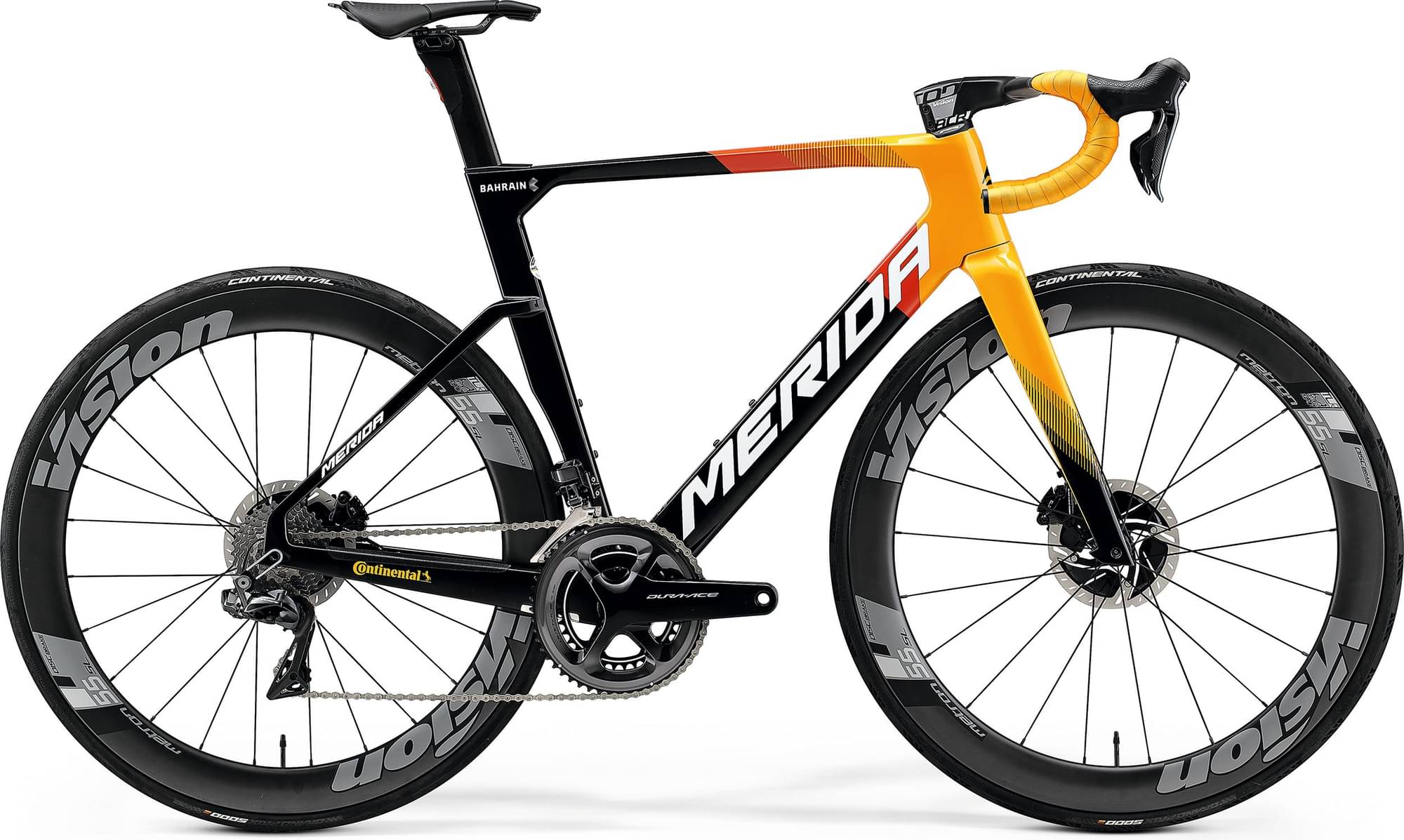

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
REACTO CF5 IV, material: carbon, 700x30C max. wheelsize, 100x12/ 142x12mm axle standard, BB86,5 bottom bracket standard
Suspension Fork
REACTO CF5 IV DISC, material: carbon, 700x30C max. wheelsize
Drivetrain
Rear Derailleur
Shimano Dura Ace Di2, SS
Front Derailleur
Shimano Dura Ace Di2
Shift Levers
Shimano Dura Ace disc Di2
Cassette
Shimano CS-9100, 11-30 teeth, 11 speed
Crank
Shimano Dura Ace, Power Meter, 52-36 teeth, 165 mm-XSS/XS, 170 mm-S, 172.5 mm-M, 175 mm-L/XL
Bottom Bracket
SM-BB92-41B, Presfit 86.5, Shimano Dura Ace Di2
Chain
Shimano CN-HG901-11
Wheels
Rims
METRON 55 Clincher TL Disc, 100x12mm width front hub, 142x12mm width rear hub, 19mm inner width, 55mm height, Centerlock, material: carbon, Tubeless ready (tubeless tape and valves not included)
Spokes
attached
Tires
Continental Grand Prix 5000, 700x25C, fold
Brakes
Brakes
Shimano Dura Ace, Hydraulic disc
Brake Levers
Shimano Dura Ace disc
Cockpit
Handlebar
Vision METRON 5D ACR INTEGRATED, material: carbon, 400mm (XXS-XS-S), 420mm (M-L-XL),
Headset
FSA ACR, SL18
Seat
Saddle
SCRATCH M5
Seatpost
MERIDA TEAM CW, Aero shape, 15mm setback, Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.38 mm | 1.39 mm | 1.41 mm | 1.43 mm | 1.45 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 587 mm | 585 mm | 591 mm | 591 mm | 600 mm | 611 mm |
| Rake | 45 mm | 46 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 71 mm | 61 mm | 59 mm | 53 mm | 53 mm | 50 mm |
| Stack | 519 mm | 531 mm | 544 mm | 559 mm | 573 mm | 595 mm |
| Reach | 379 mm | 386 mm | 392 mm | 397 mm | 402 mm | 411 mm |
| Top Tube Length | 522 mm | 538 mm | 547 mm | 562 mm | 577 mm | 592 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 70.5 ° | 72 ° | 72.5 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 105 mm | 112 mm | 128 mm | 140 mm | 155 mm | 176 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 987 mm | 985 mm | 992 mm | 992 mm | 1001 mm | 1012 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 748 mm | 773 mm | 794 mm | 812 mm | 828 mm | 855 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
REACTO TEAM-E belongs to the Merida Reacto model. 111 bikes variations carry this model name so far. You can easily view all of the Merida Reacto bikes models from 2022, here.
Model range prices
Merida REACTO TRACK 900 2022 is the cheapest bike model and costs 1146$. Merida REACTO TEAM 2022 is the most expensive one and costs 10339$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Aero bikes average price
Our math shows that the average cost of a dependable Aero bike is 4211$. However, this doesn’t mean that if you spend less money on an Aero bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Aero bikes average weight
On a deeper look, we notice that the average weight of an Aero bike is 7.34 kg (16.18 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 7.39 kg (16.29 lbs), Merida bike is slightly heavier than average. In other words, this model is 0.68% heavier than the average Aero bike.
REACTO TEAM-E components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When it comes to wheels, the REACTO TEAM-E bike is equipped with the 700c carbon model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida REACTO TEAM-E is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
